Flex Plate
Flex Plate

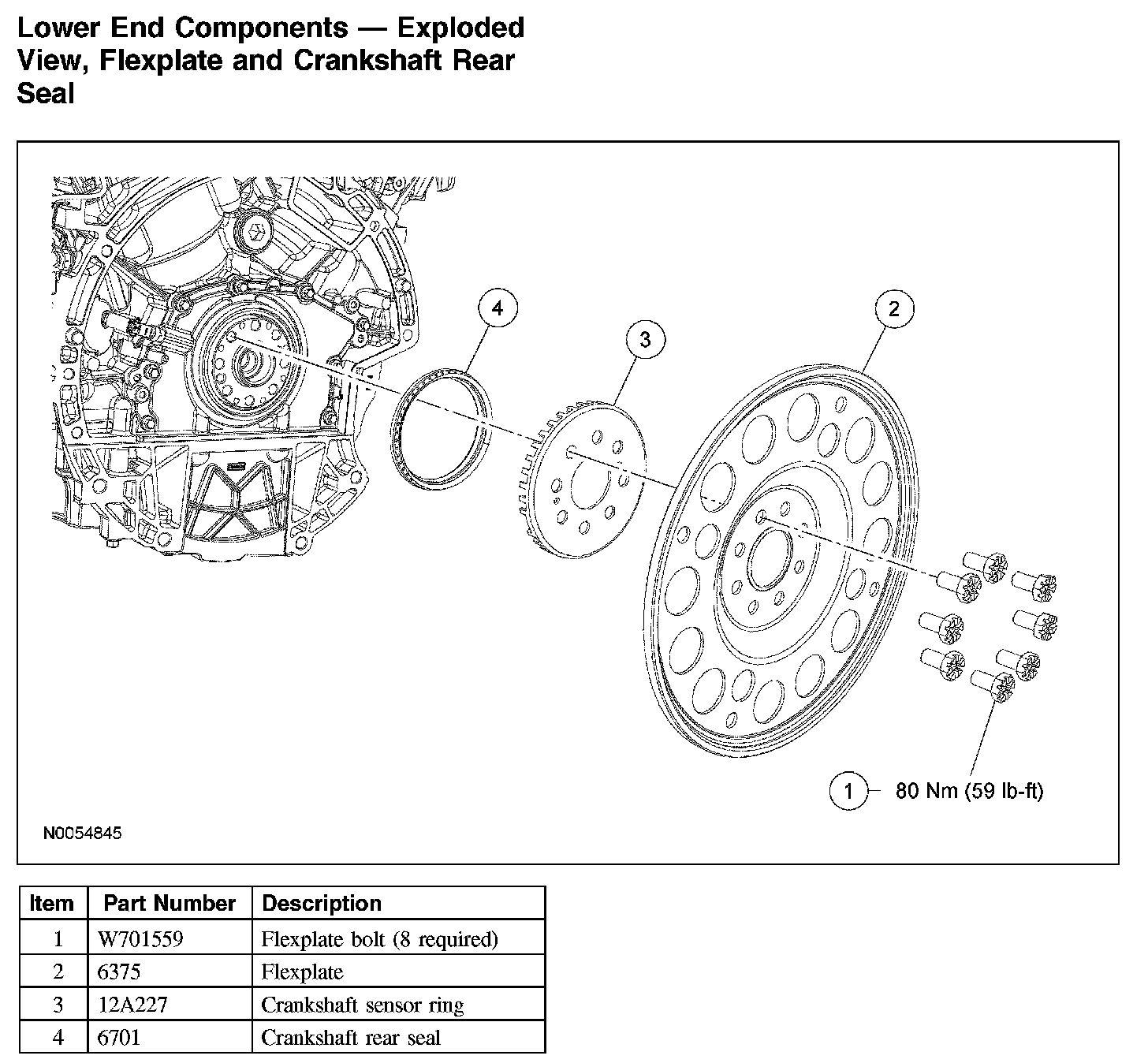

Lower End Components - Exploded View, Flexplate and Crankshaft Rear Seal
Lower End Components - View, Flexplate and Crankshaft Rear Seal:
