Differential Bearing Preload Shim Selection Chart

Differential Bearing Preload Shim Selection Chart

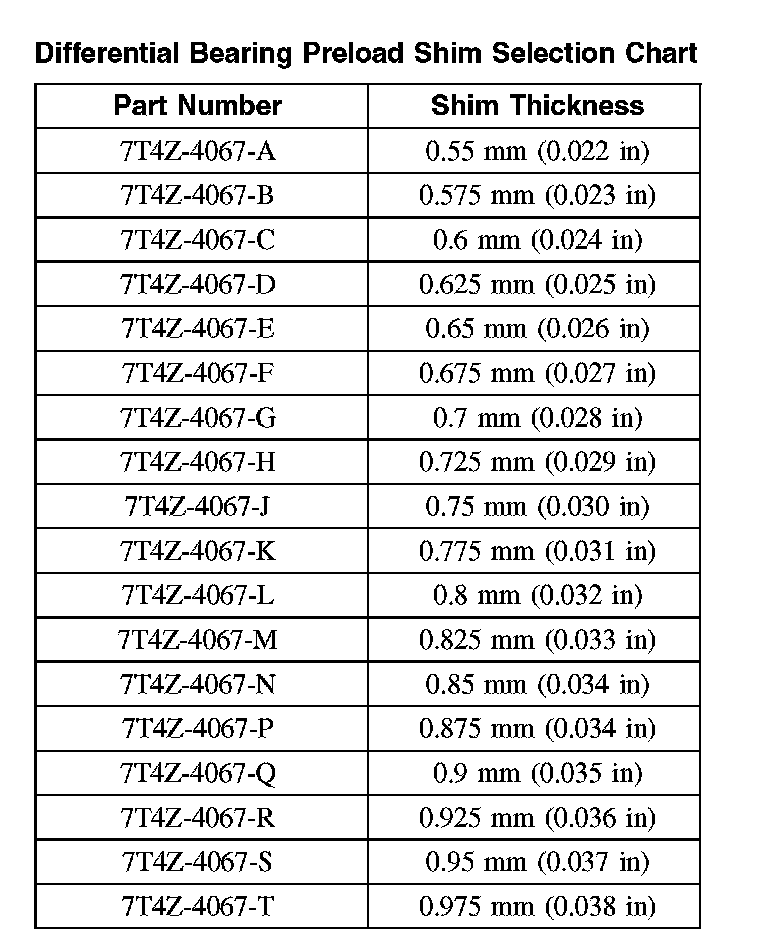

Differential Bearing Preload Shim Selection Chart (Part 1):

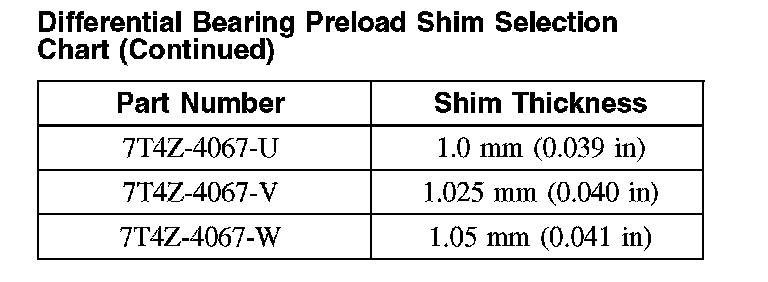

Differential Bearing Preload Shim Selection Chart (Part 2):
