Home >> Lincoln >> 2008 >> MKX AWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Control Module >> Heated Seat Module >> Passenger Side Front

Passenger Side Front

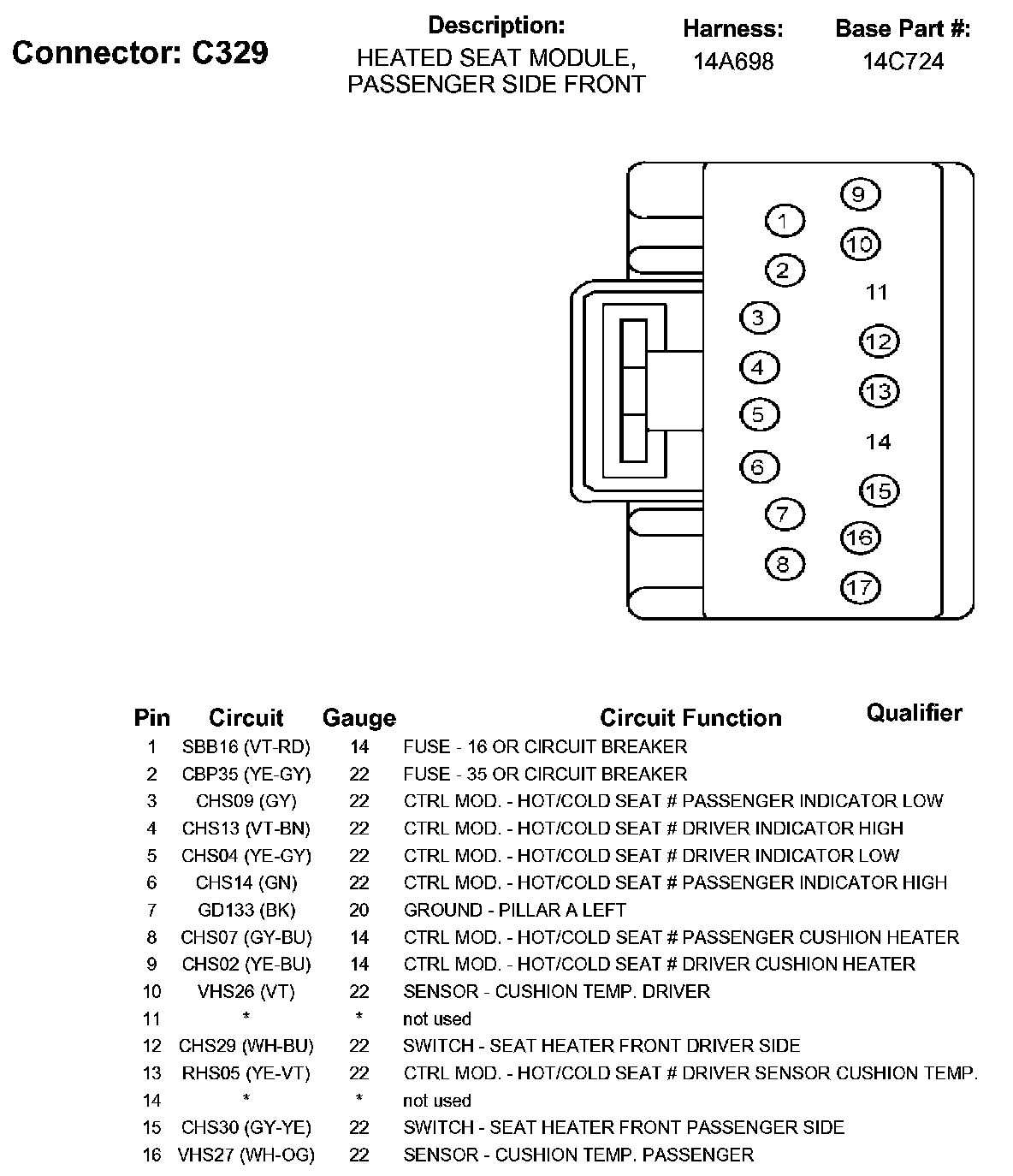

C329 (Part 1):



C329 (Part 2):
