Home >> Lincoln >> 2008 >> MKX AWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Occupant Sensor >> Occupant Classification Sensor (OCS) 1

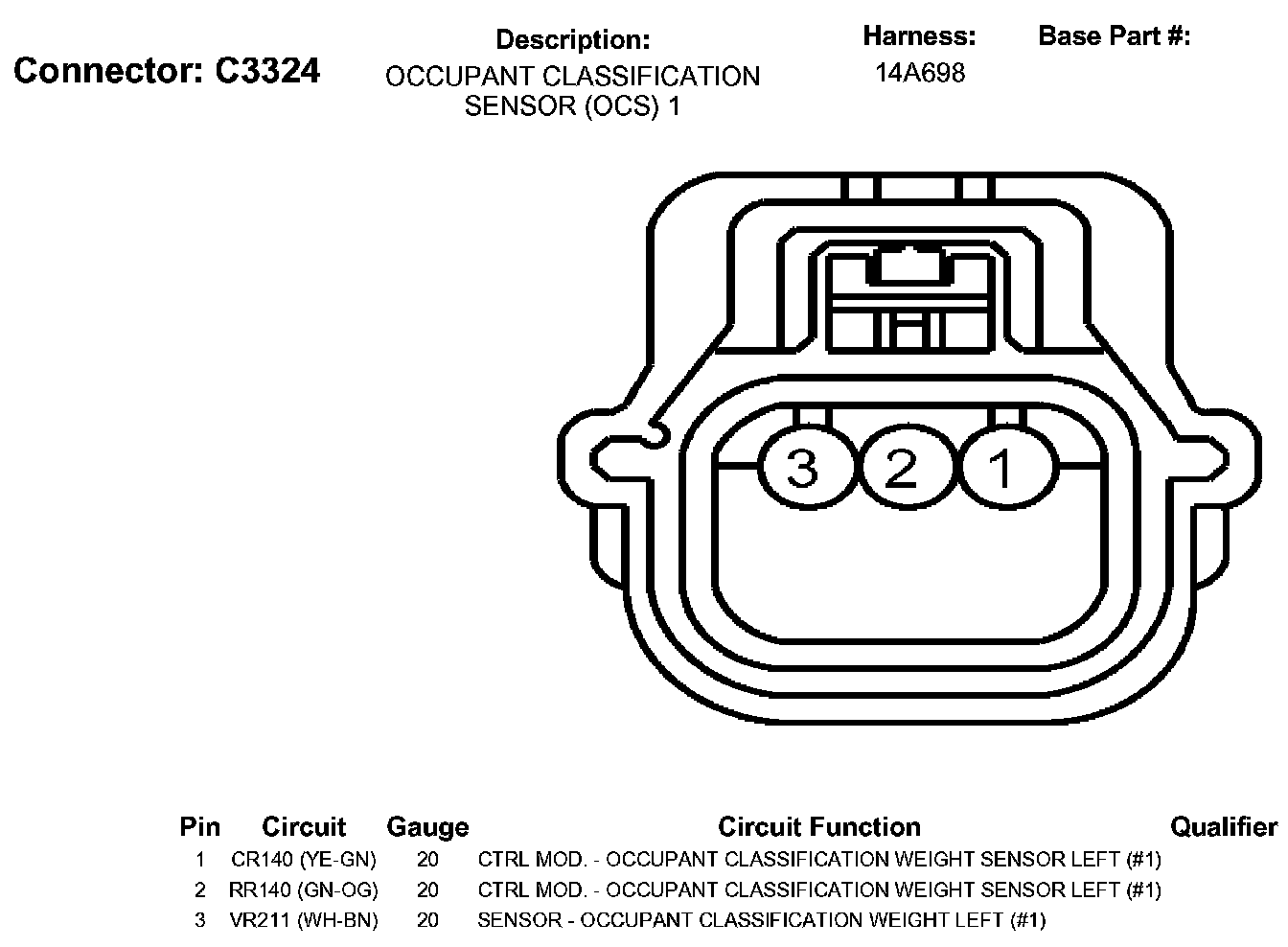

Occupant Classification Sensor (OCS) 1

C3324:
