Home >> Lincoln >> 2008 >> MKX AWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Motor >> Power Window Motor, Driver Side Front

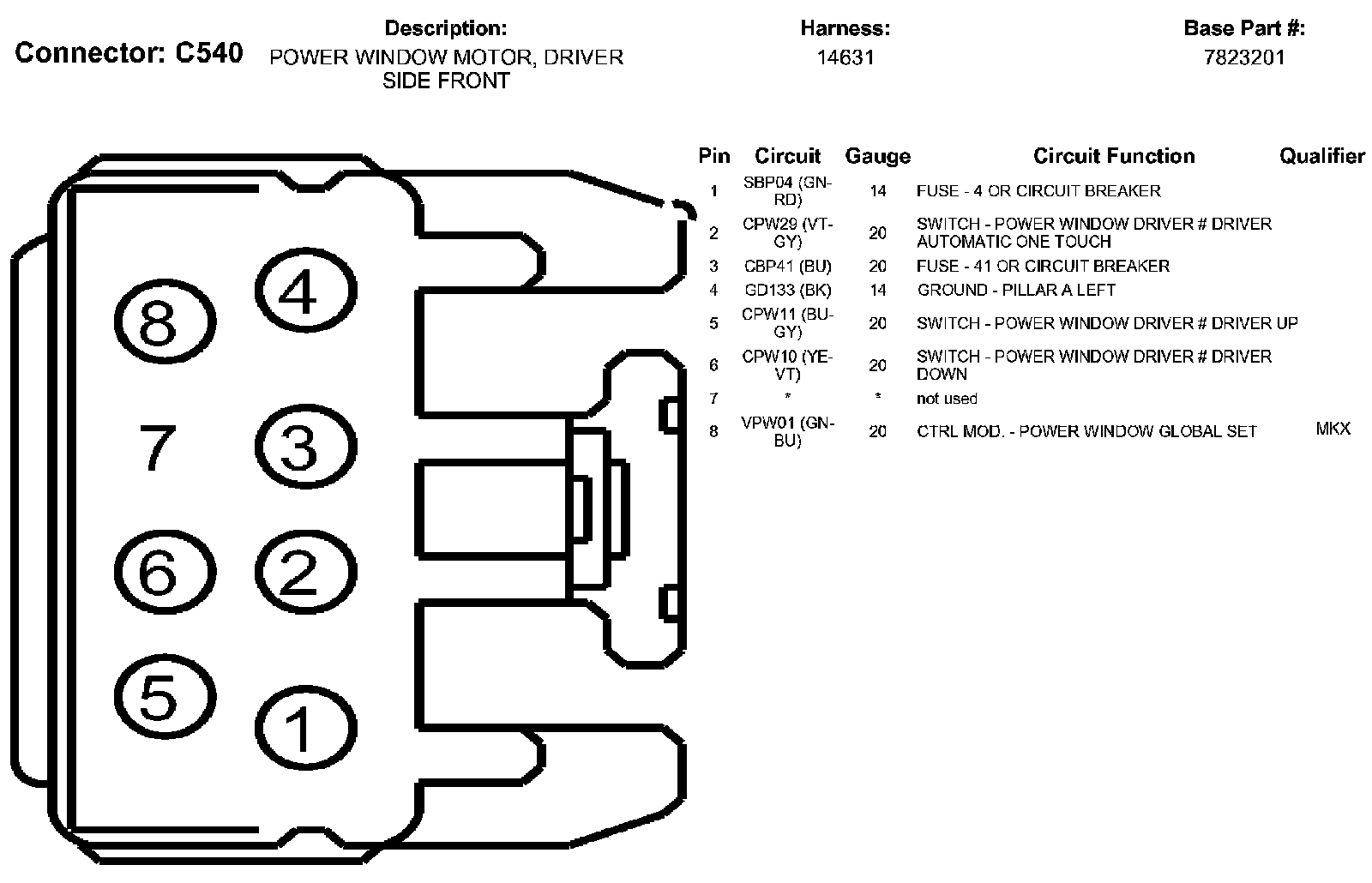

Power Window Motor, Driver Side Front

C540:
