Power Trunk / Liftgate Hazard Sensor
>>

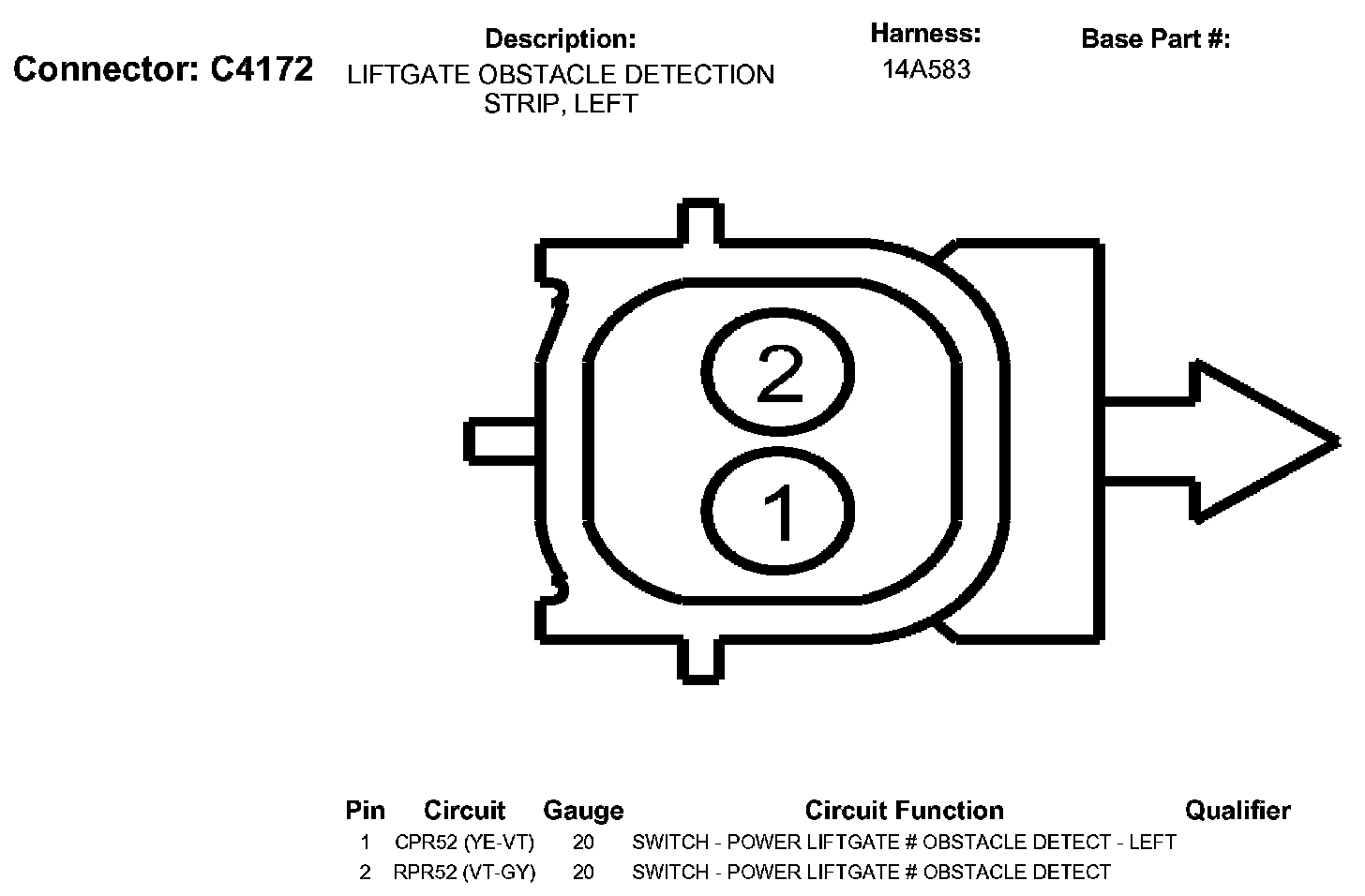

Liftgate Obstacle Detection Strip, Left
Liftgate Obstacle Detection Strip, Left
C4172:
