Home >> Lincoln >> 2008 >> MKX AWD V6-3.5L >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Temperature Control Module >> Locations >> Heated Seat Module >> Passenger Side Front

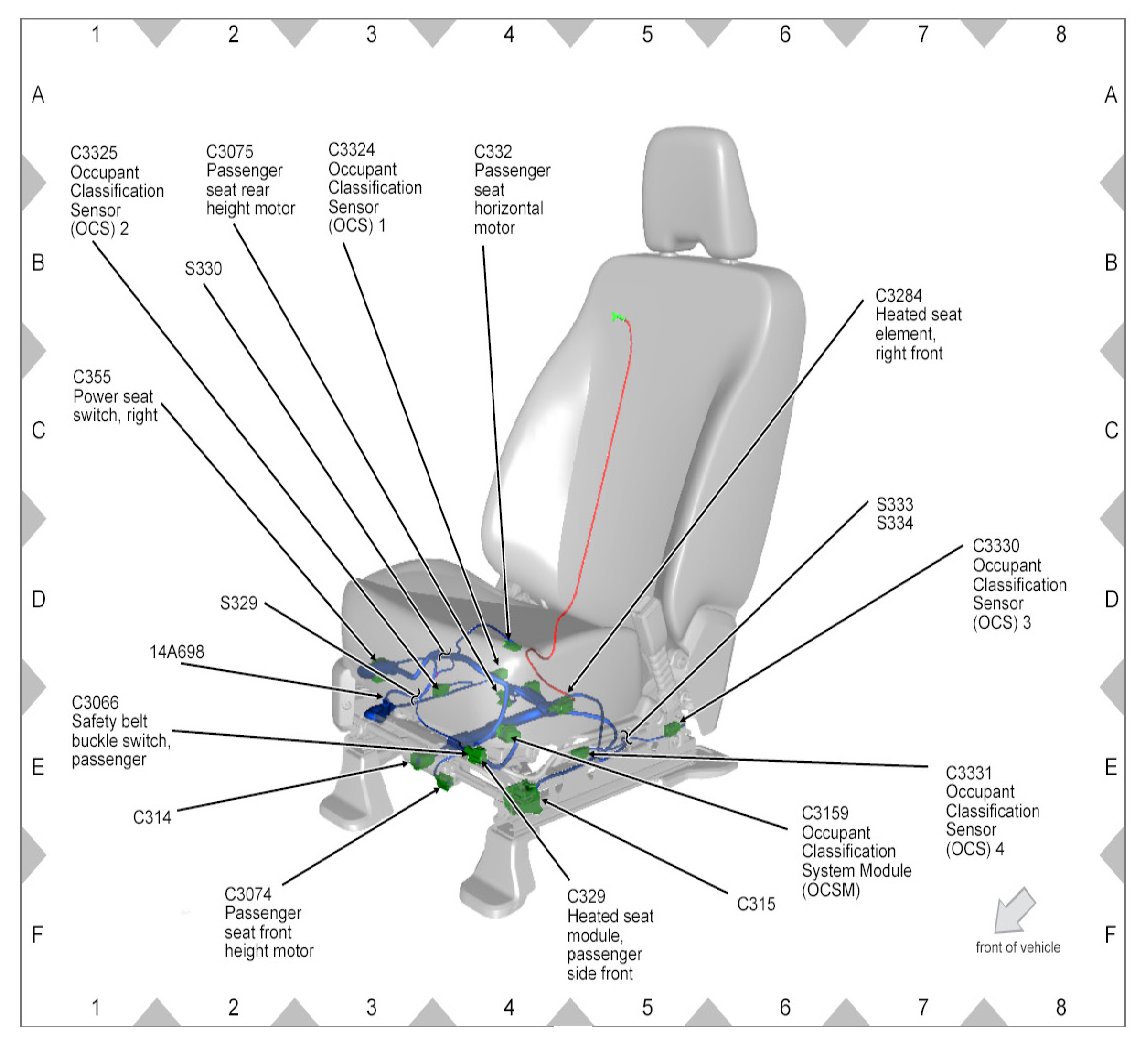

Passenger Side Front

View 151-24:



View 151-25:
