Home >> Lincoln >> 2007 >> Navigator 4WD V8-5.4L >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Locations >> Auxiliary Function Selector Switch Assembly, Rear

Auxiliary Function Selector Switch Assembly, Rear

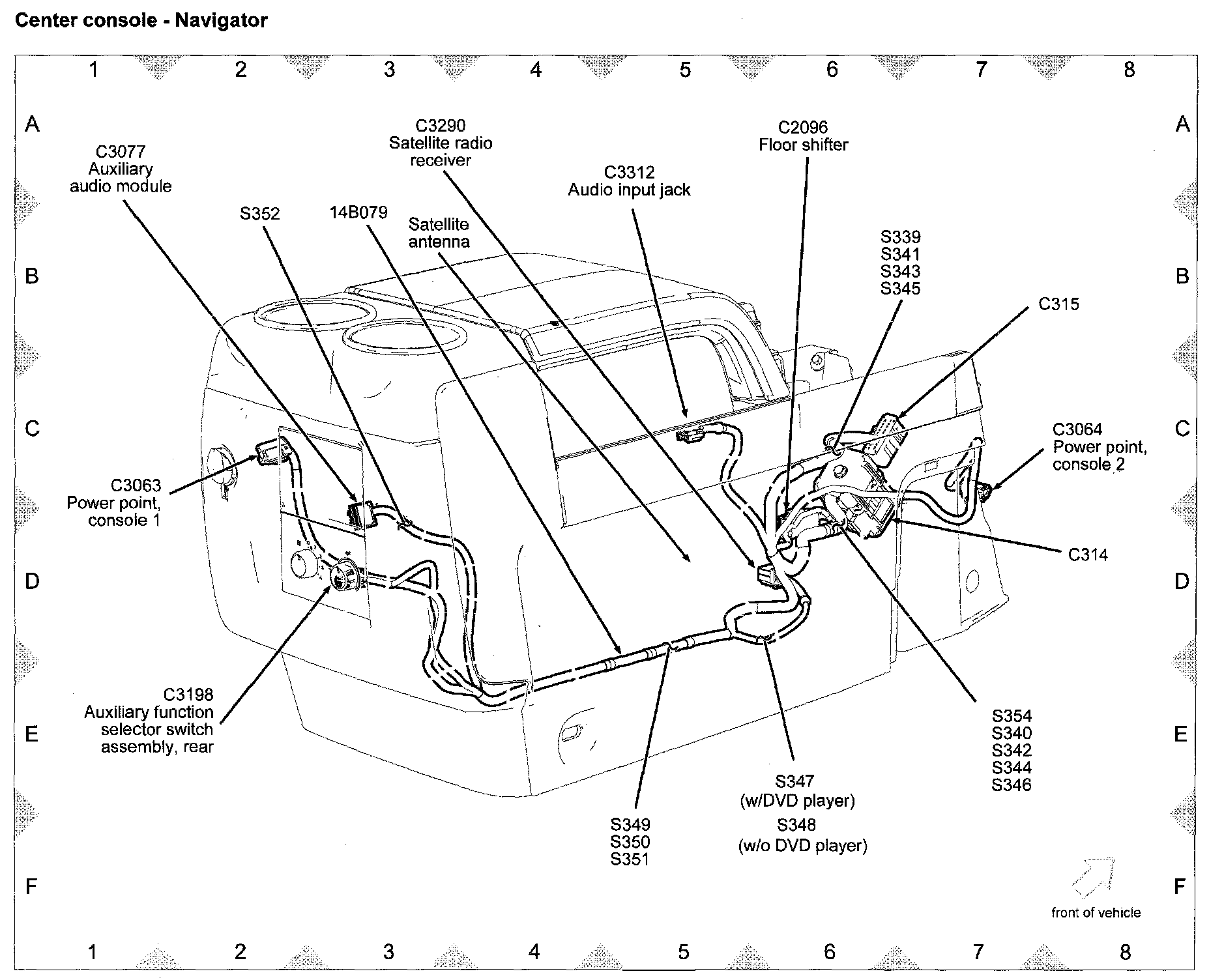

View 151-20 (Center Console - Navigator):
