Home >> Lincoln >> 2007 >> Navigator 2WD V8-5.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio, Stereo, and Compact Disc >> Remote Control Module, Audio - Stereo

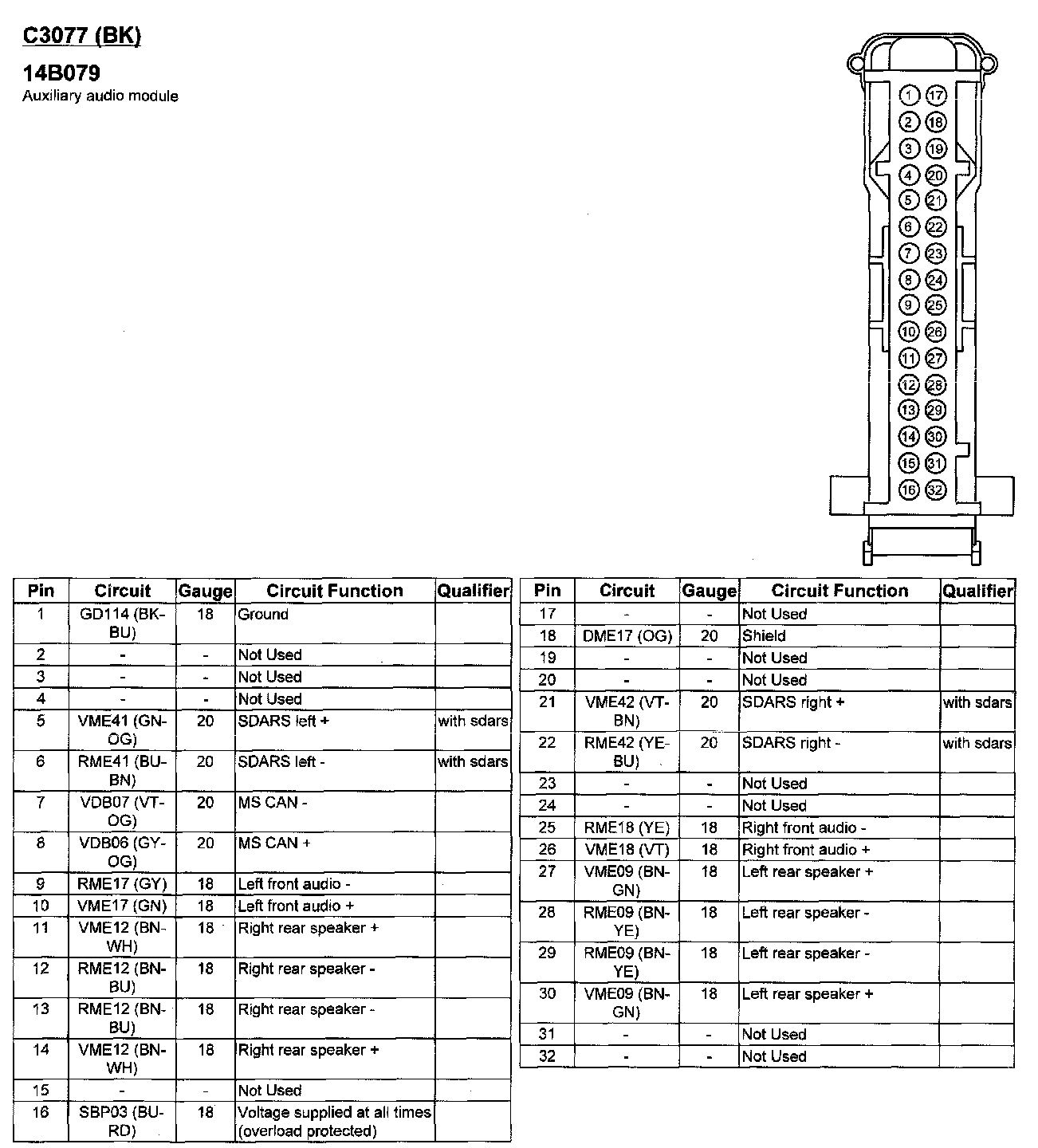

Remote Control Module, Audio - Stereo

C3077:
