Home >> Lincoln >> 2007 >> Mark LT 2WD V8-5.4L VIN 5 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Occupant Sensor >> Seat Weight Sensor Module

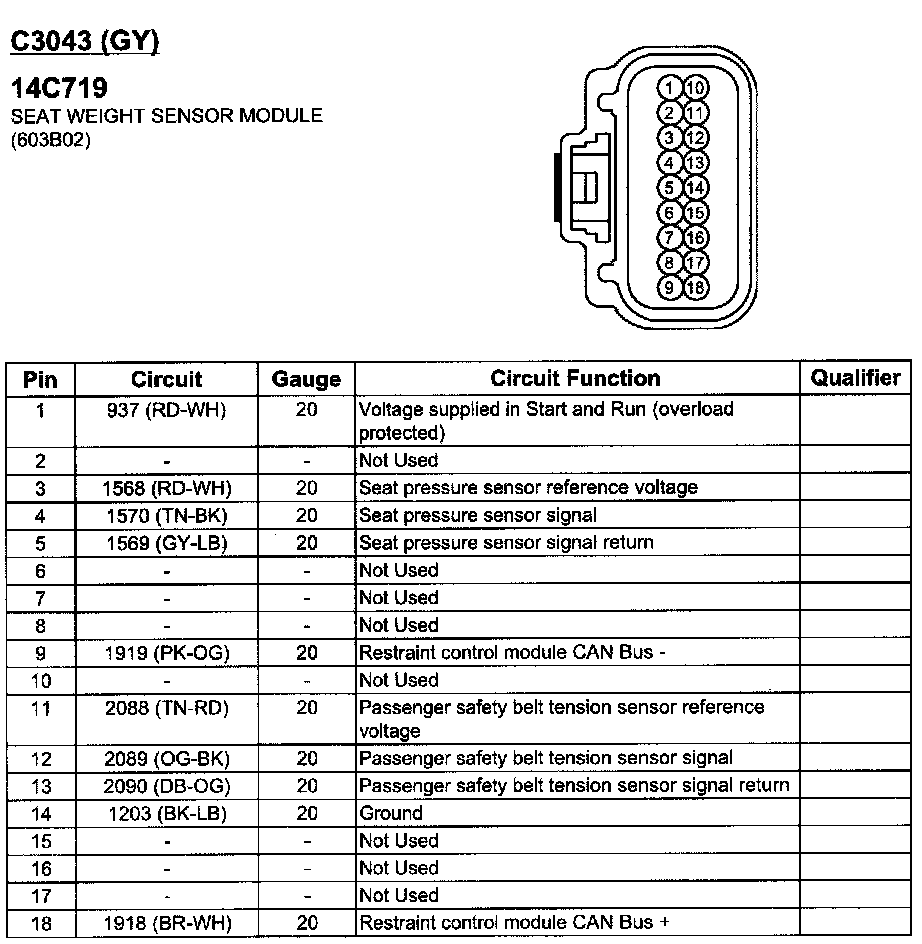

Seat Weight Sensor Module

C3043:
