Home >> Lincoln >> 2007 >> Mark LT 2WD V8-5.4L VIN 5 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module HVAC

Control Module HVAC

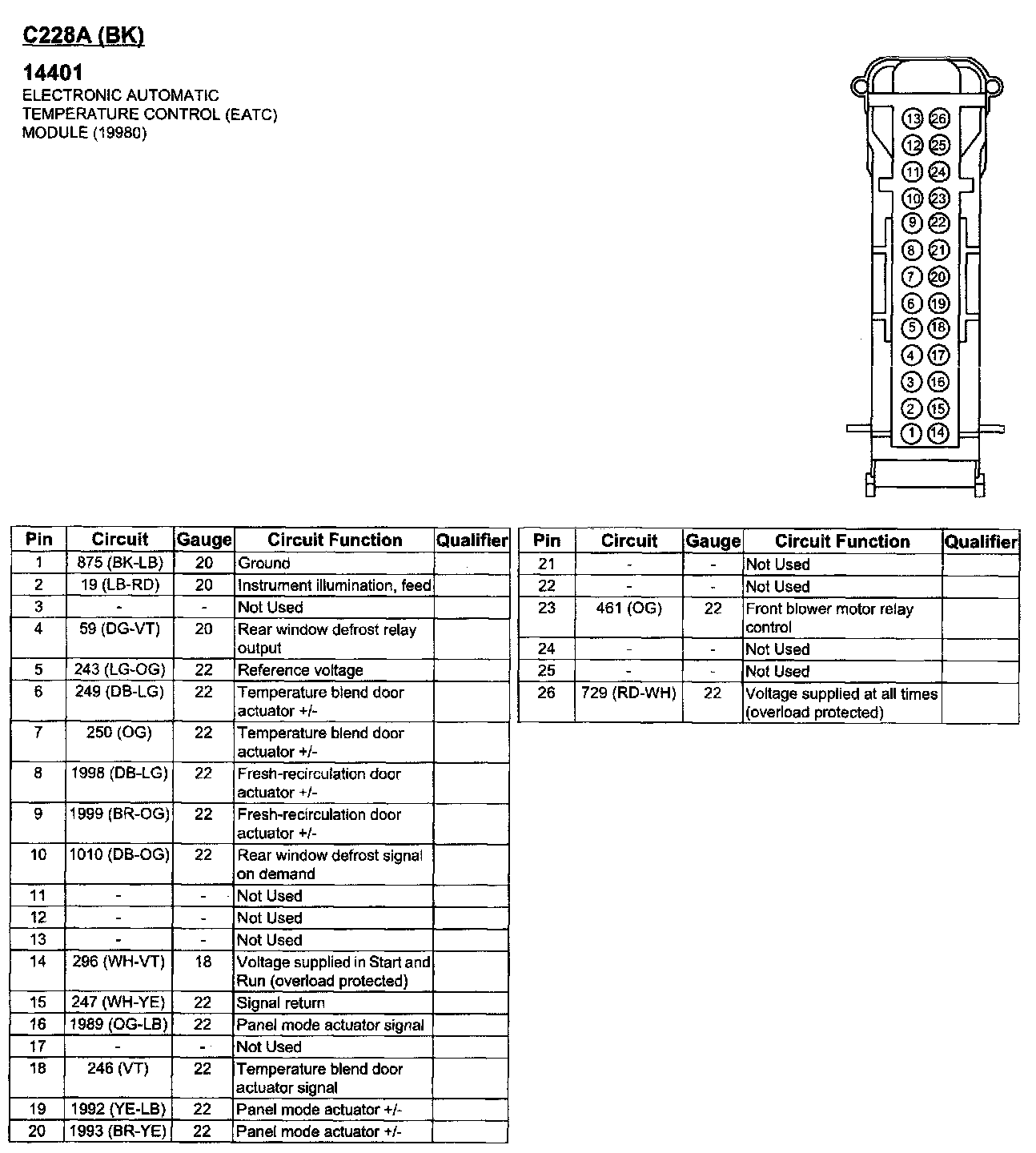

C228A:

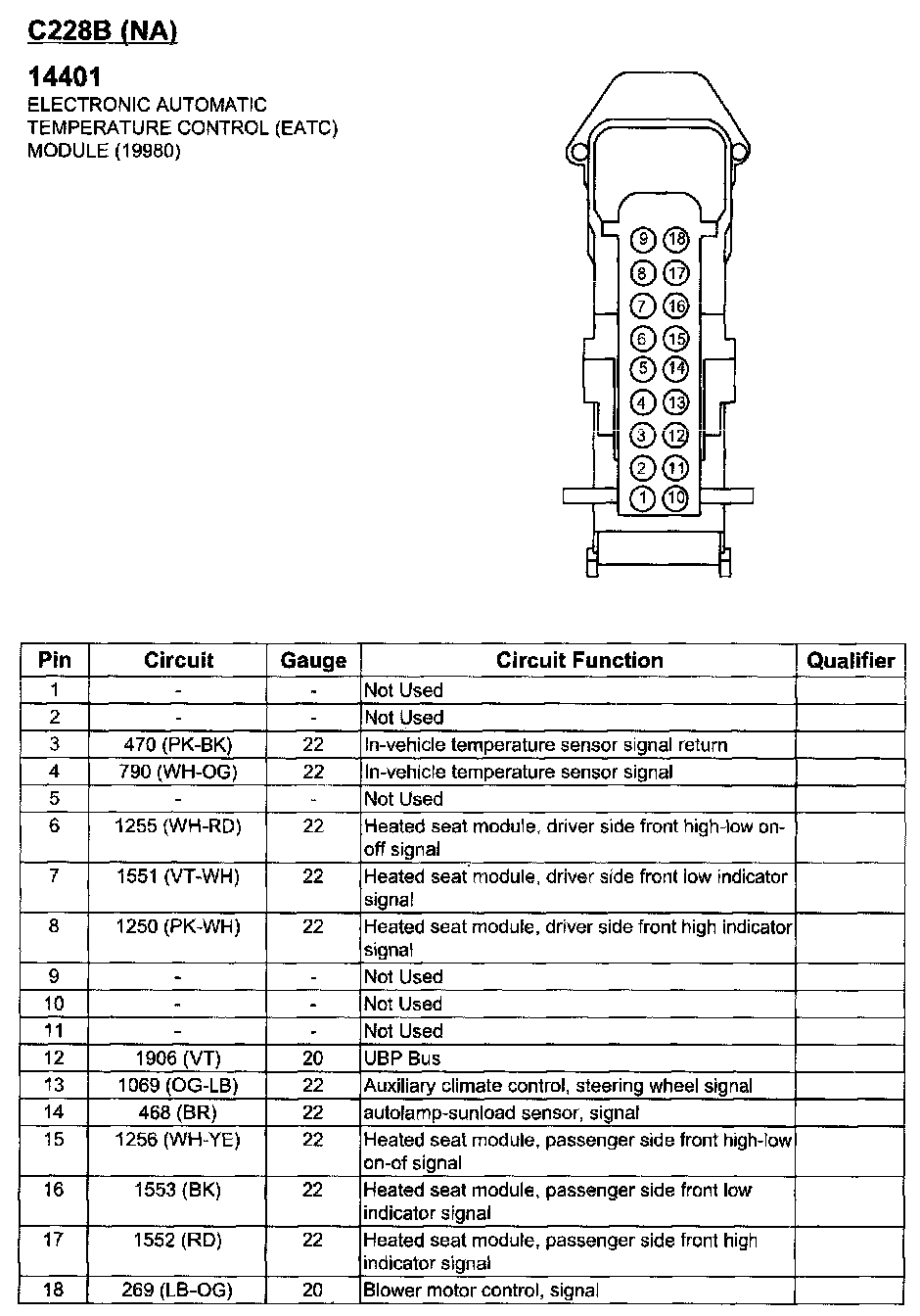

C228B:
