Home >> Lincoln >> 2007 >> Mark LT 2WD V8-5.4L VIN 5 >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Temperature Control Module >> Locations >> Heated Seat Module, Passenger Side Front

Heated Seat Module, Passenger Side Front

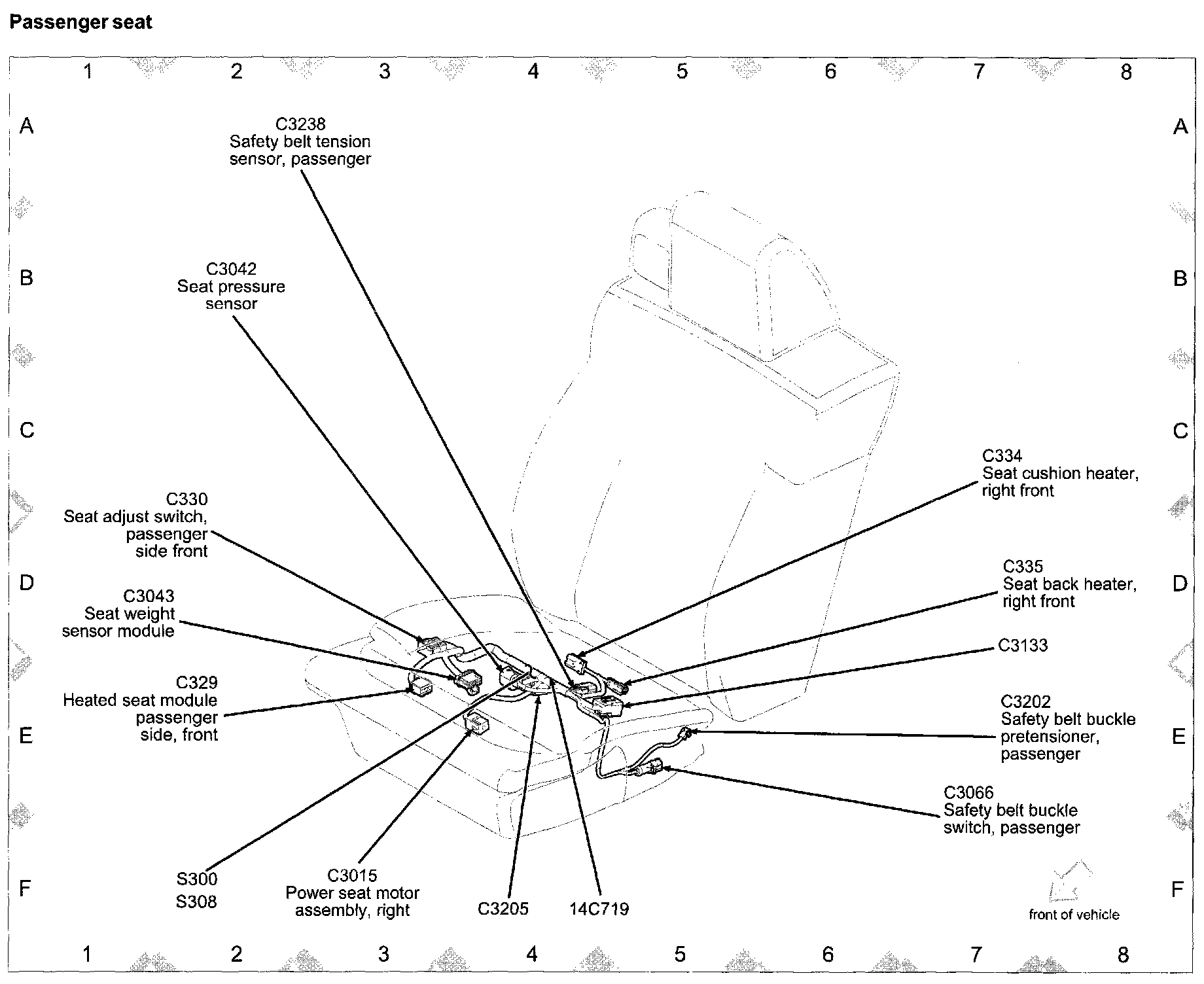

View 151-27 (Passenger Seat):
