Home >> Lincoln >> 2007 >> MKZ AWD V6-3.5L VIN T >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Flywheel

Flywheel

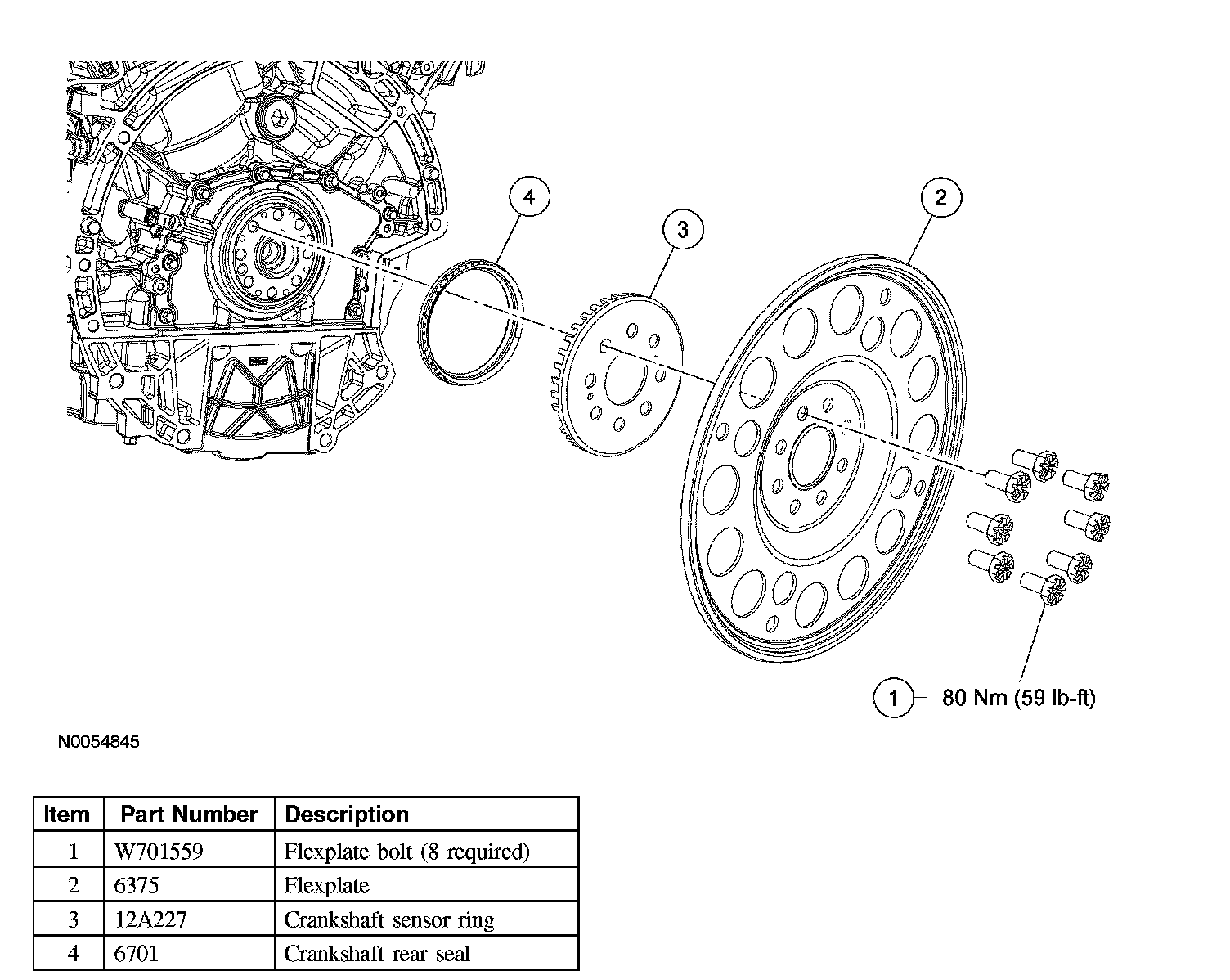

Lower End Components - Exploded View, Flexplate and Crankshaft Rear Seal





1. For additional information, refer to the procedures.
