Wheel Speed Sensor - Rear: Notes

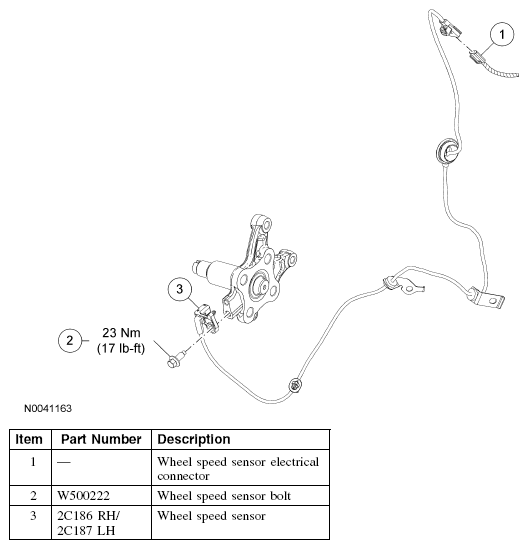

Fig 1: Wheel Speed Sensor Electrical Connector And Wheel Speed Sensor Bolt With Torque Specifications

G04679820

Courtesy of FORD MOTOR CO.
