Home >> Lincoln >> 2006 >> Zephyr V6-3.0L VIN 1 >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Temperature Control Module >> Locations >> Heated/Cooled Seat Module

Heated/Cooled Seat Module

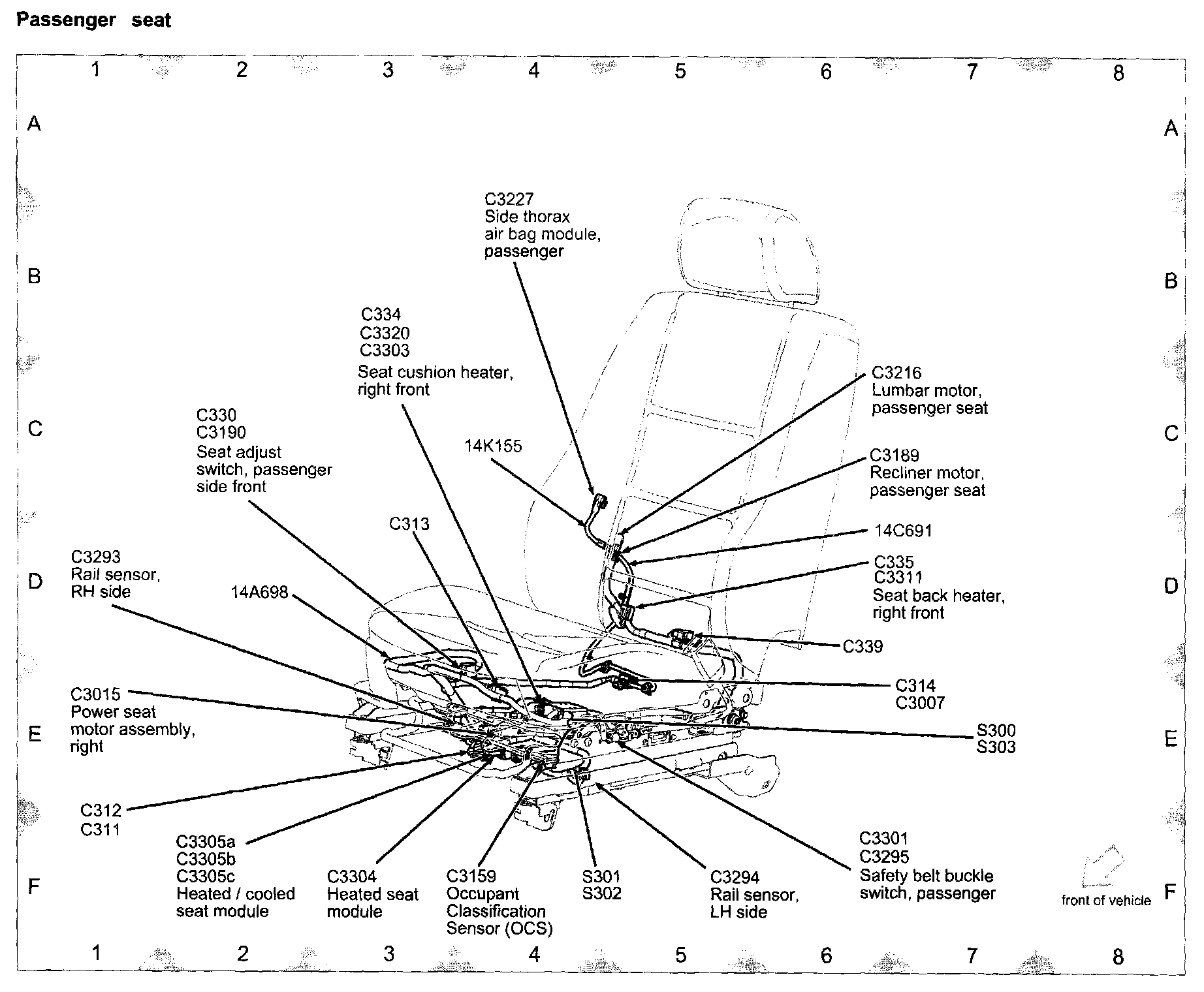

View 151-19 (Passenger Seat):
