Differential Assembly

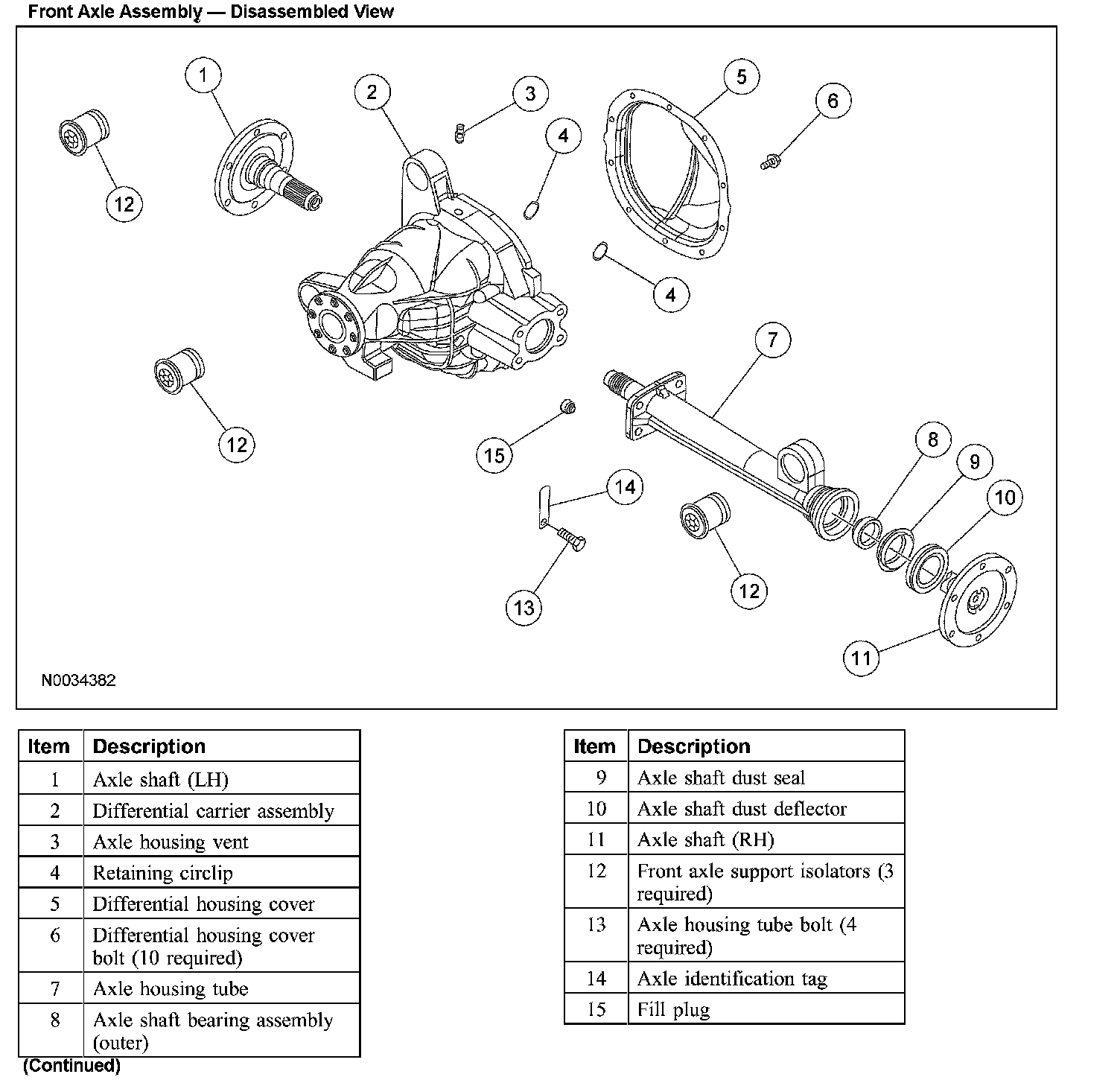

Front Axle Assembly - Disassembled View (Part 1):
Front Axle Assembly - Disassembled View (Part 2):
Front Axle Assembly - Disassembled View (Part 3):
