Home >> Lincoln >> 2006 >> Navigator 2WD V8-5.4L VIN 5 >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Locations >> Auxiliary Function Selector Switch Assembly, Rear

Auxiliary Function Selector Switch Assembly, Rear

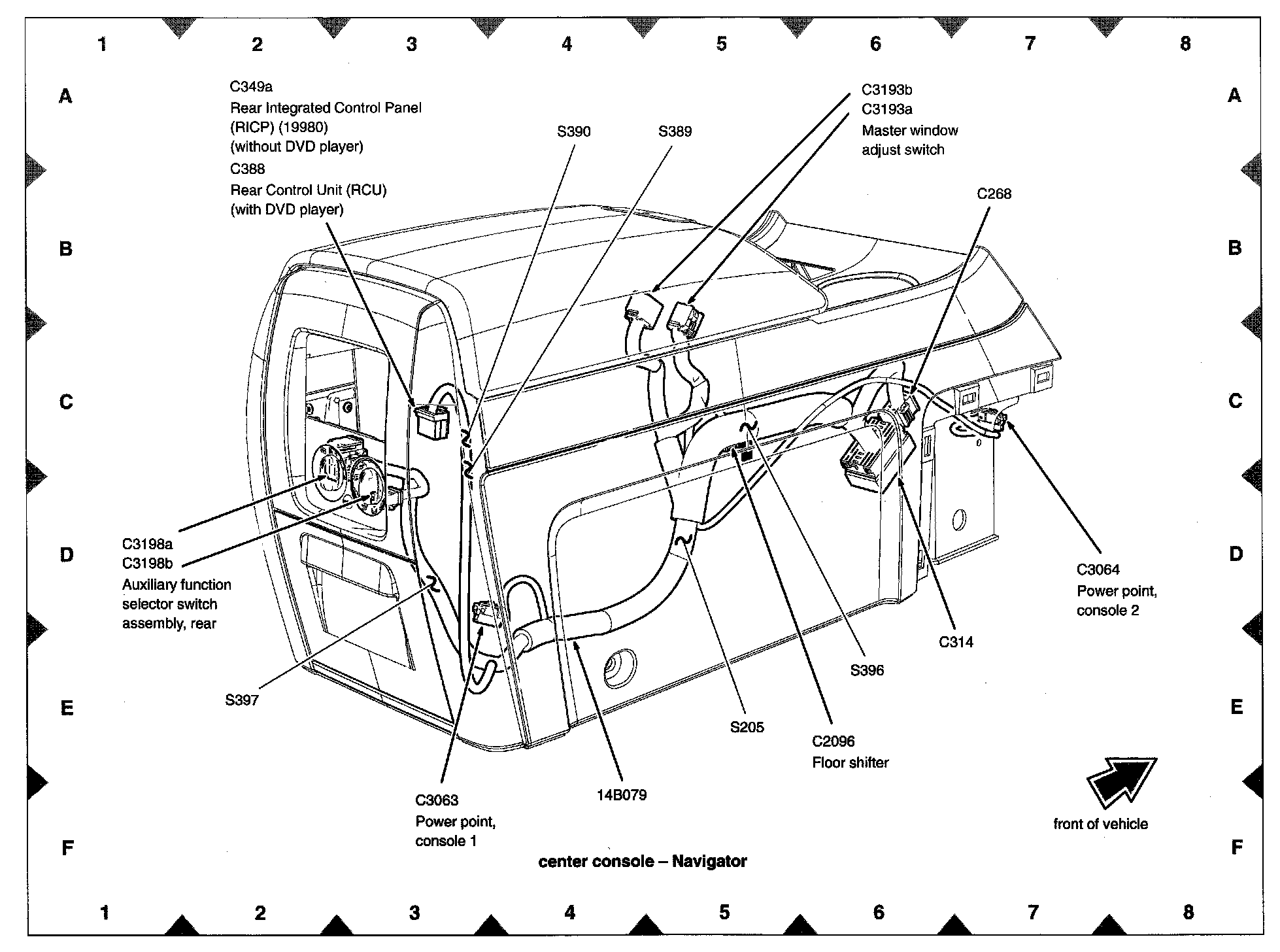

View 151-25 (Center Console):

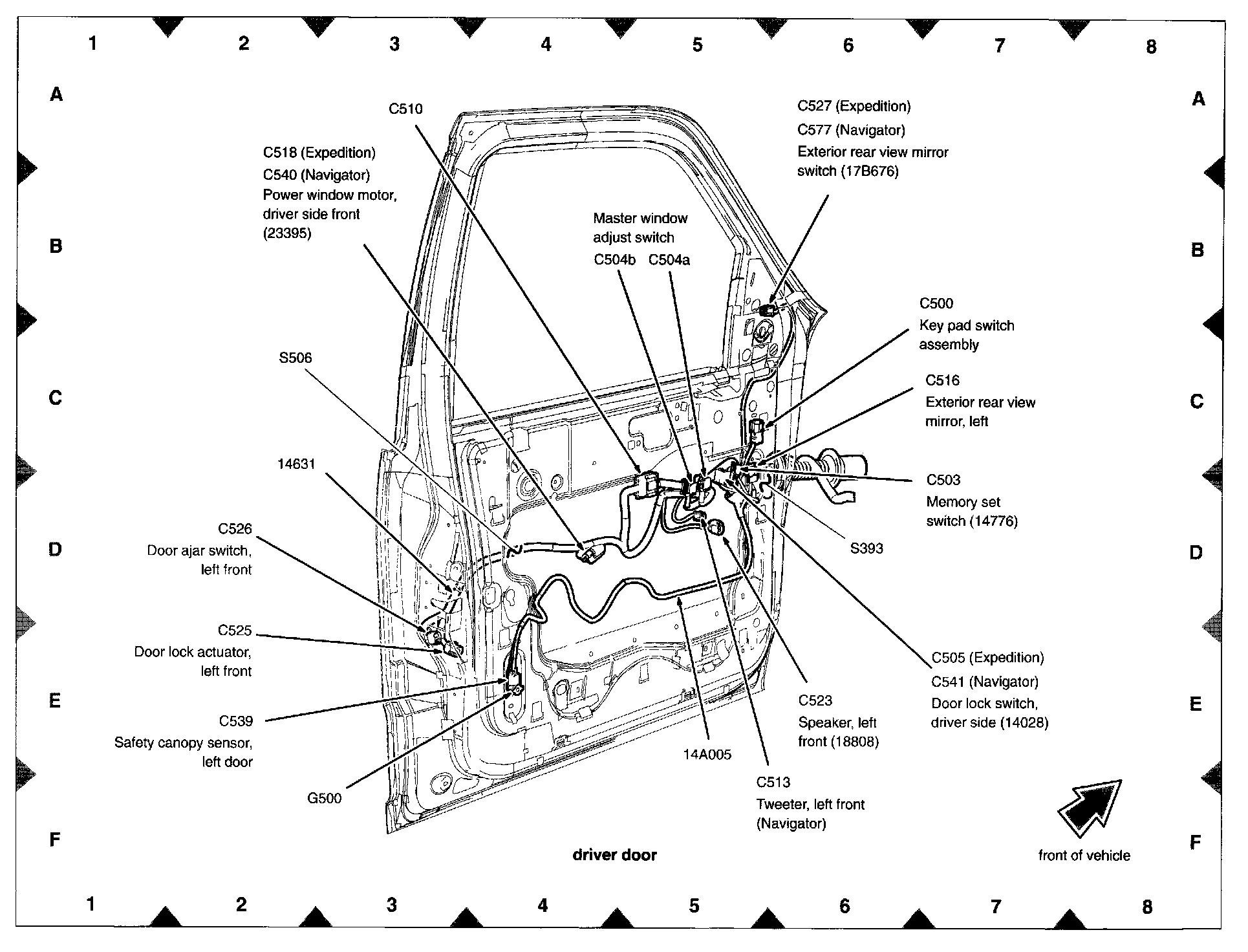

View 151-28 (Driver Door):
