Home >> Lincoln >> 2006 >> Navigator 2WD V8-5.4L VIN 5 >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Diagrams >> Connector Views >> Auxiliary Function Selector Switch Assembly, Front

Auxiliary Function Selector Switch Assembly, Front

C989a:

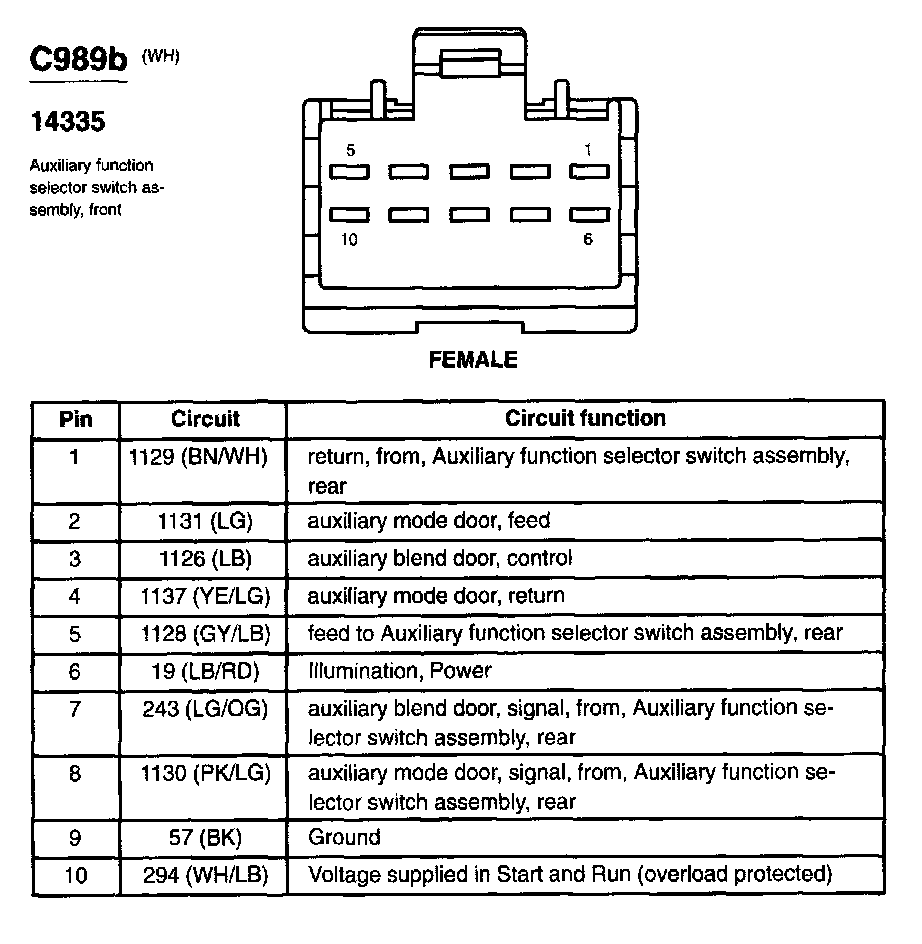

C989b:
