Home >> Lincoln >> 2006 >> Navigator 2WD V8-5.4L VIN 5 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Disc Brake System >> Front

Front

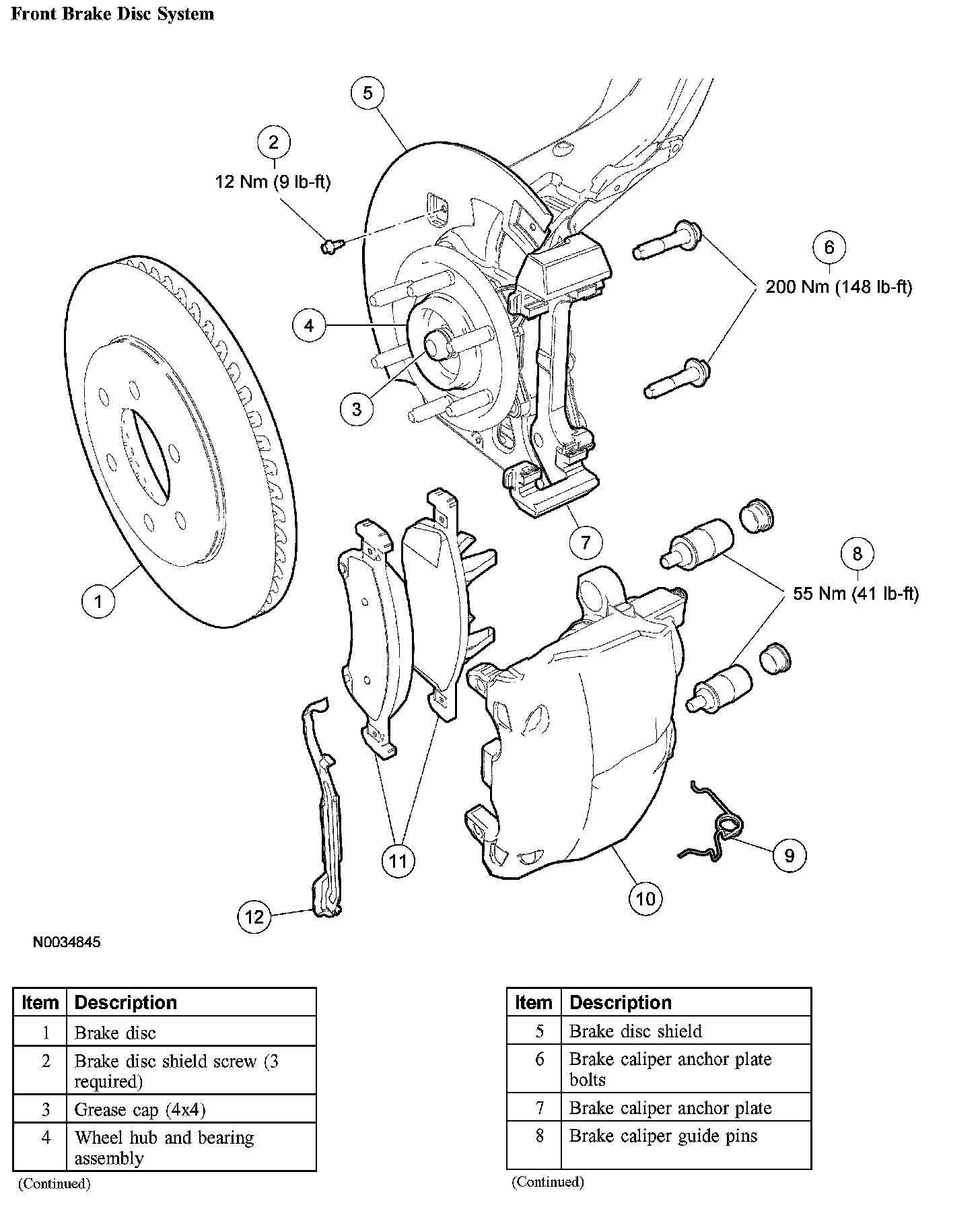

Front Brake Disc System:



Front Brake Disc System:
