Home >> Lincoln >> 2006 >> Navigator 2WD V8-5.4L VIN 5 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Trunk / Liftgate >> Power Trunk / Liftgate Control Module

Power Trunk / Liftgate Control Module

C4174a:



C4174b:



C4174c:

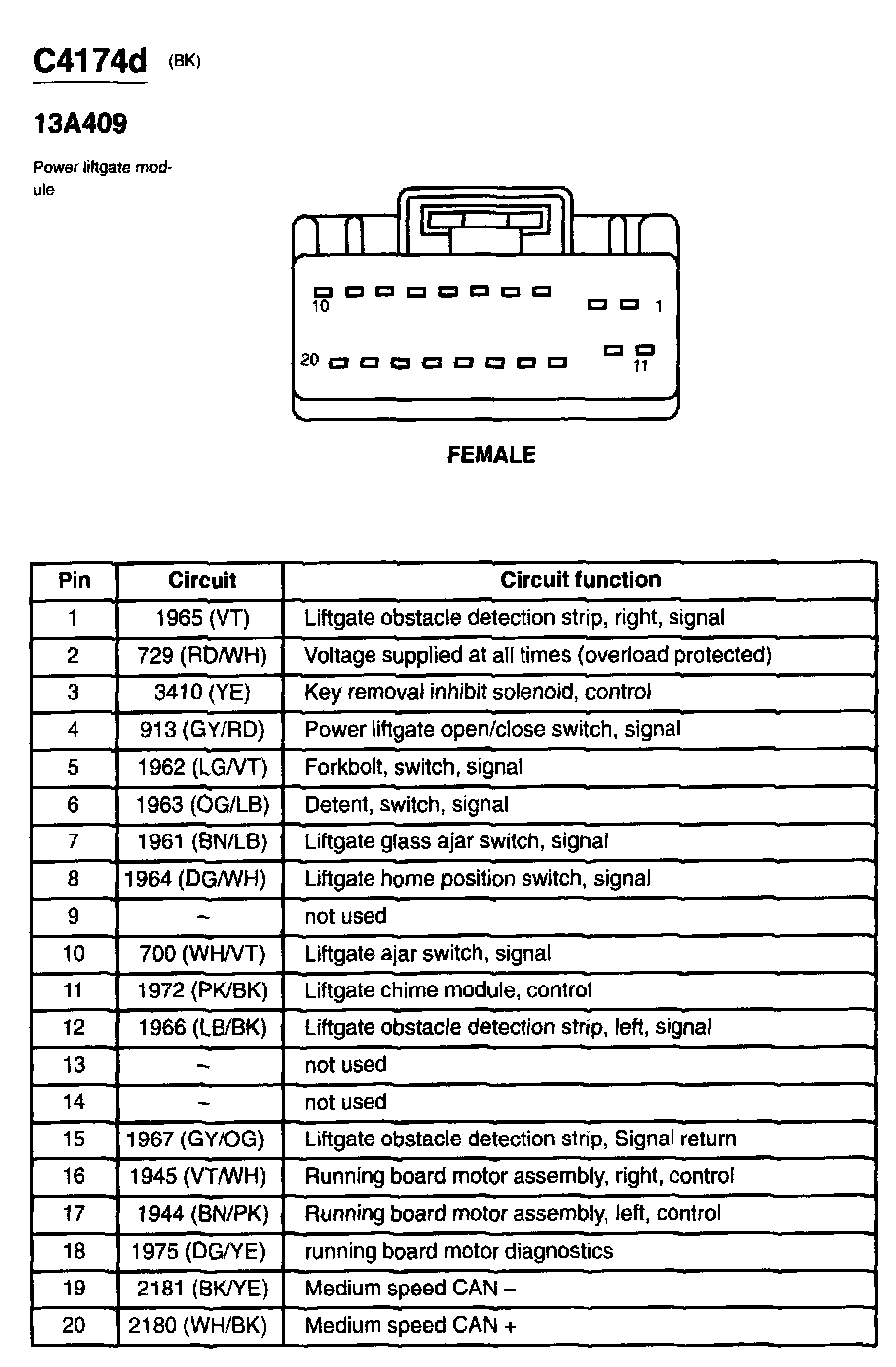

C4174d:
