Home >> Lincoln >> 2006 >> Navigator 2WD V8-5.4L VIN 5 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

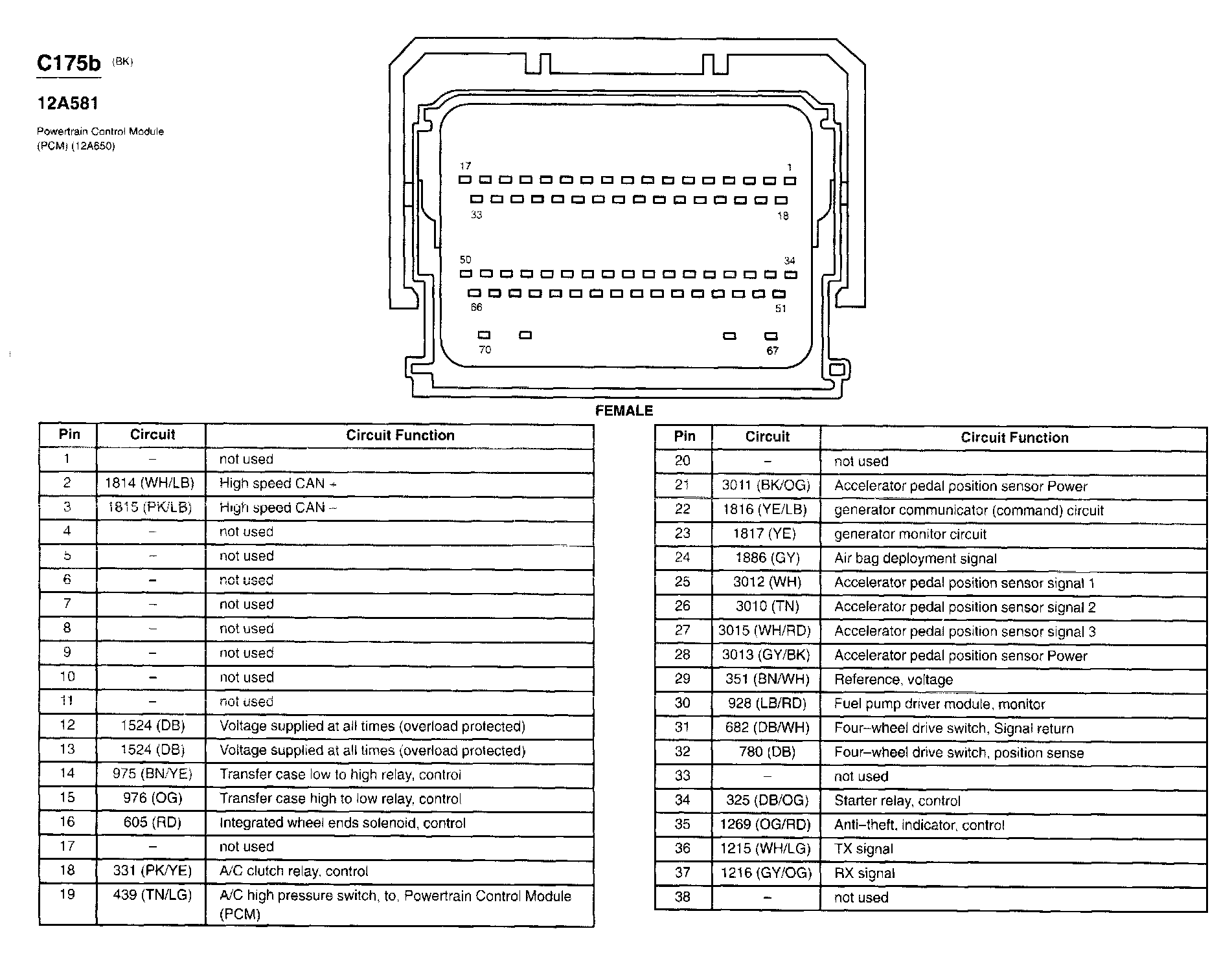

C175b (Part 1):



C175b (Part 2):

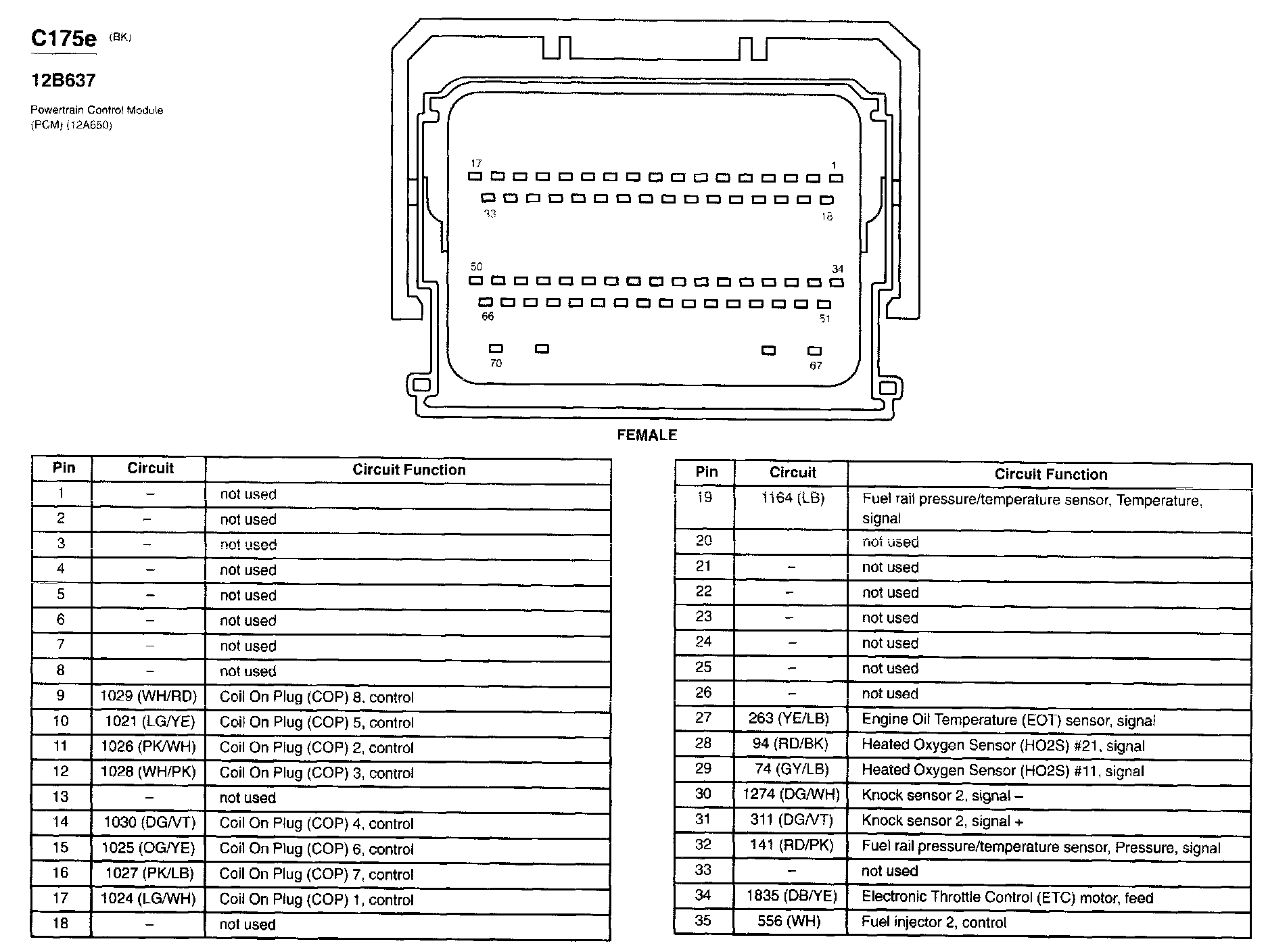

C175e (Part 1):

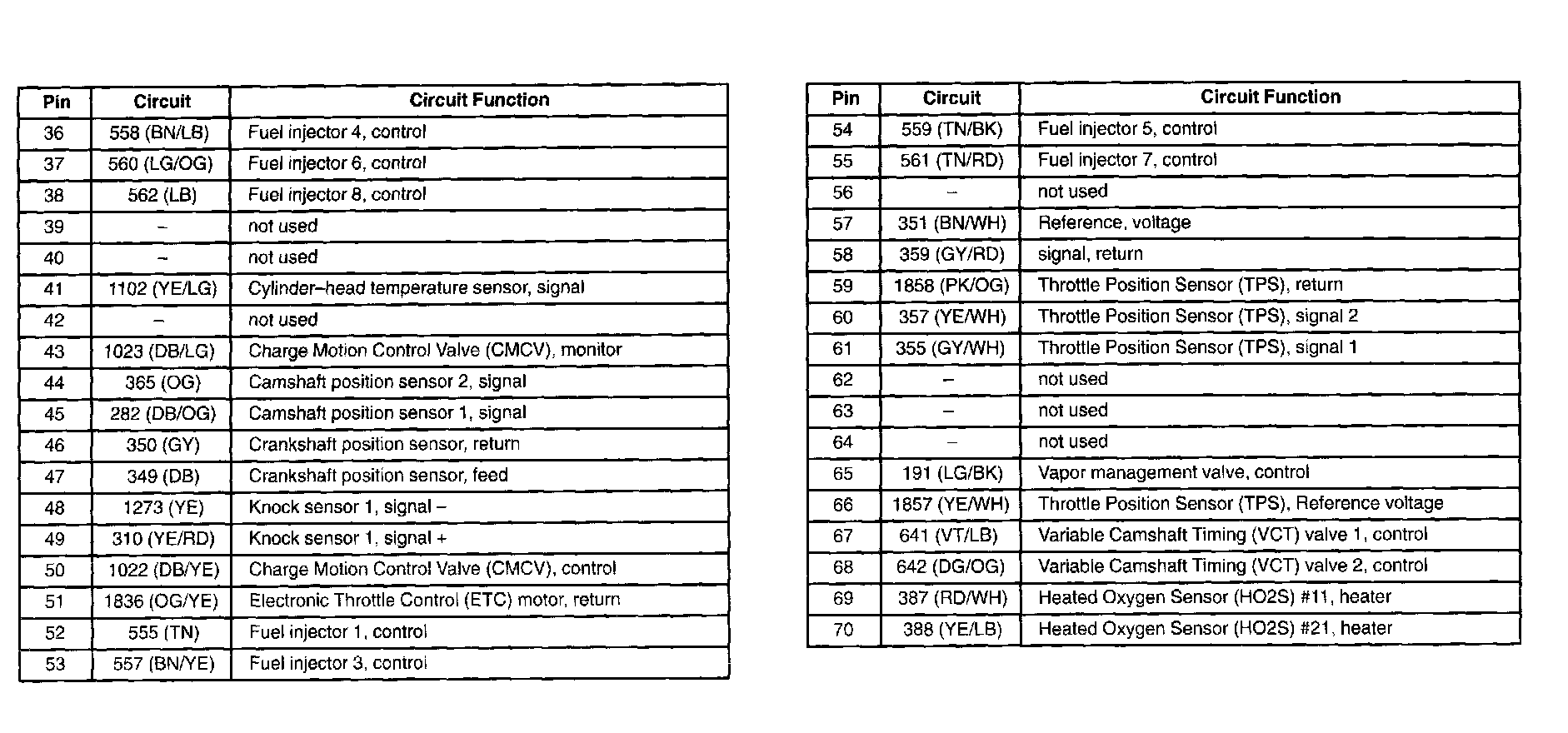

C175e (Part 2):

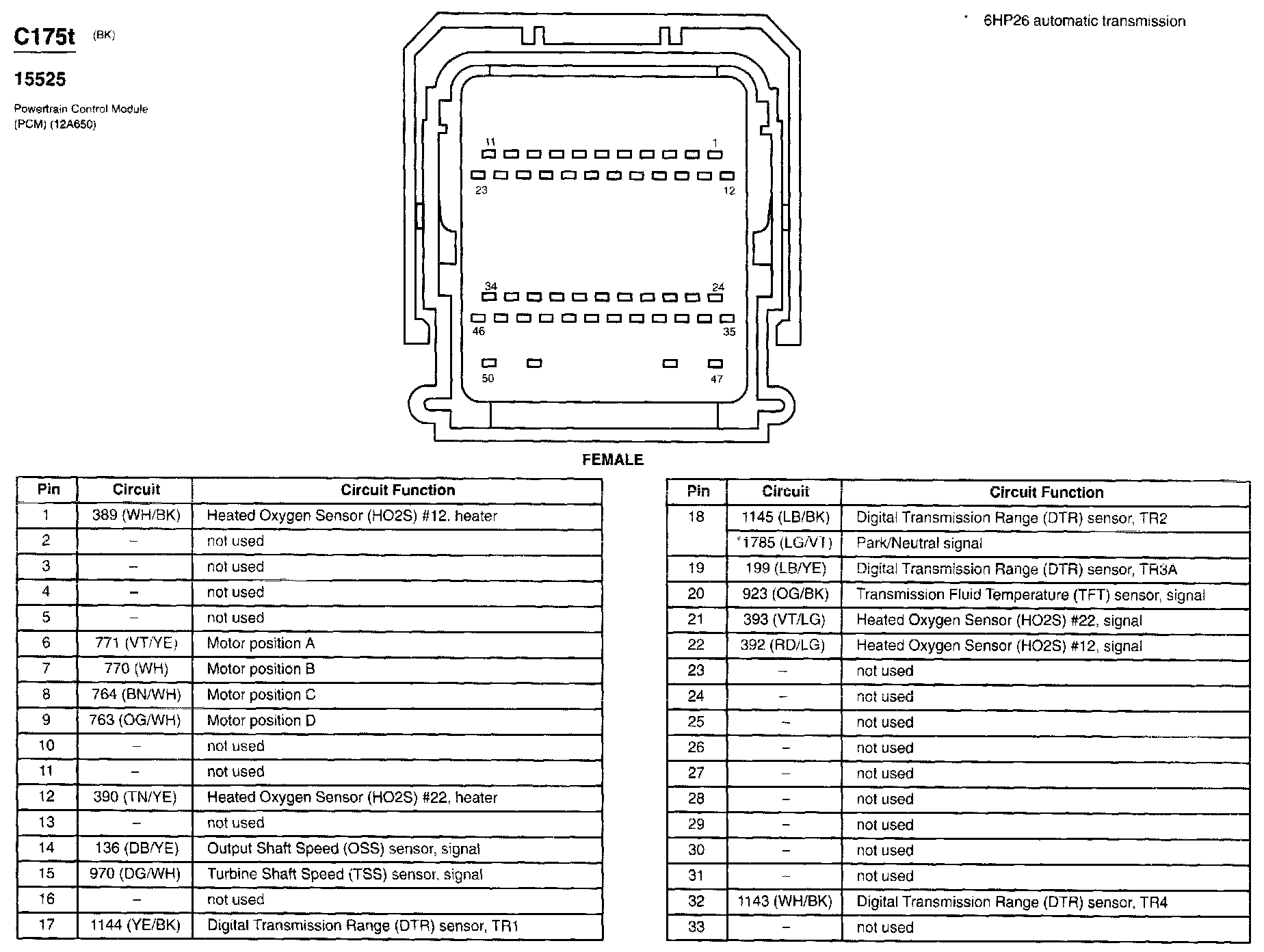

C175t (Part 1):

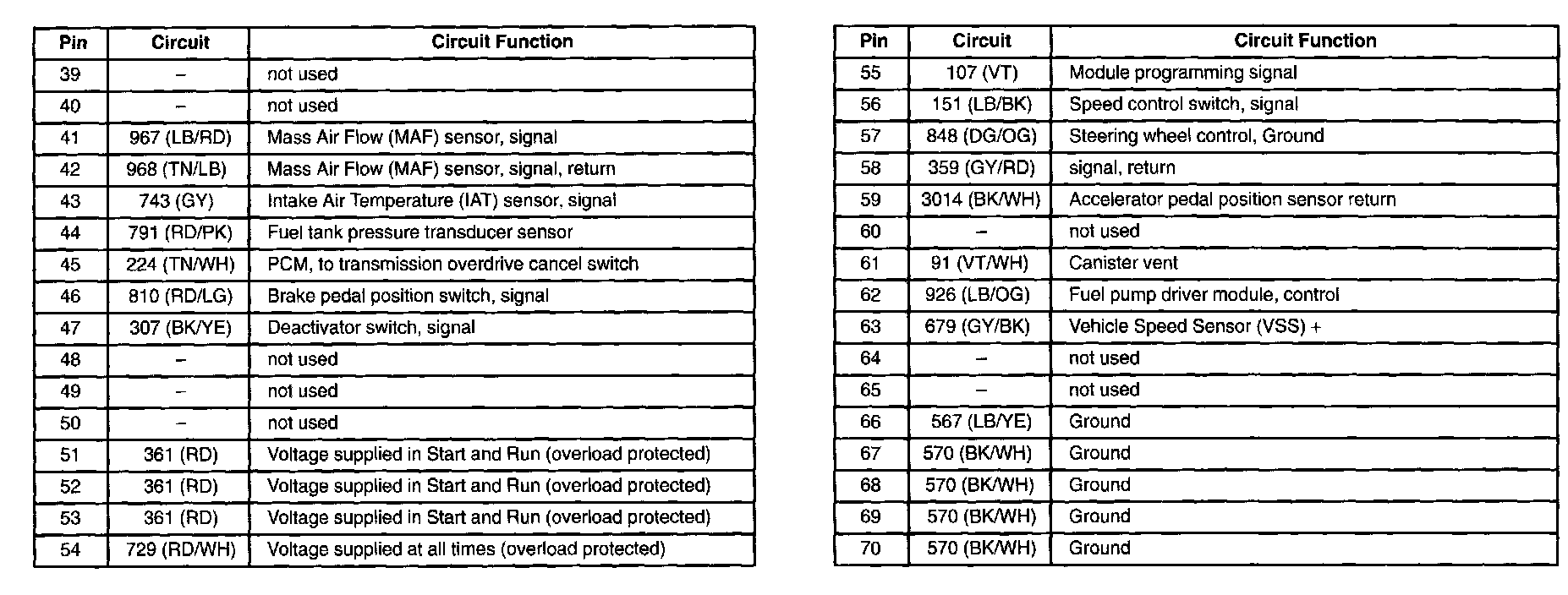

C175t (Part 2):
