Navigator 2WD V8-5.4L VIN 5
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module HVAC
Control Module HVAC

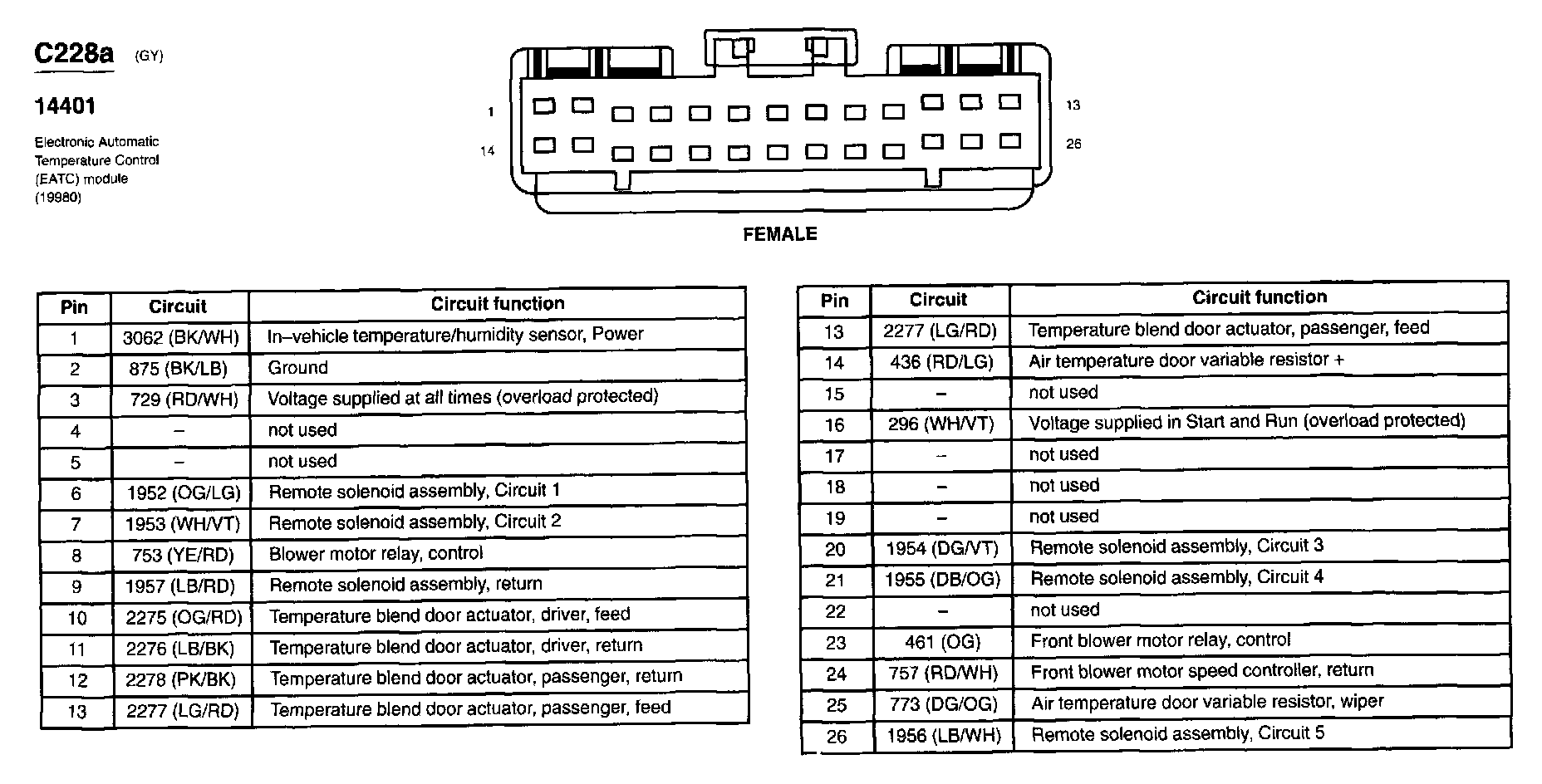

C228a:

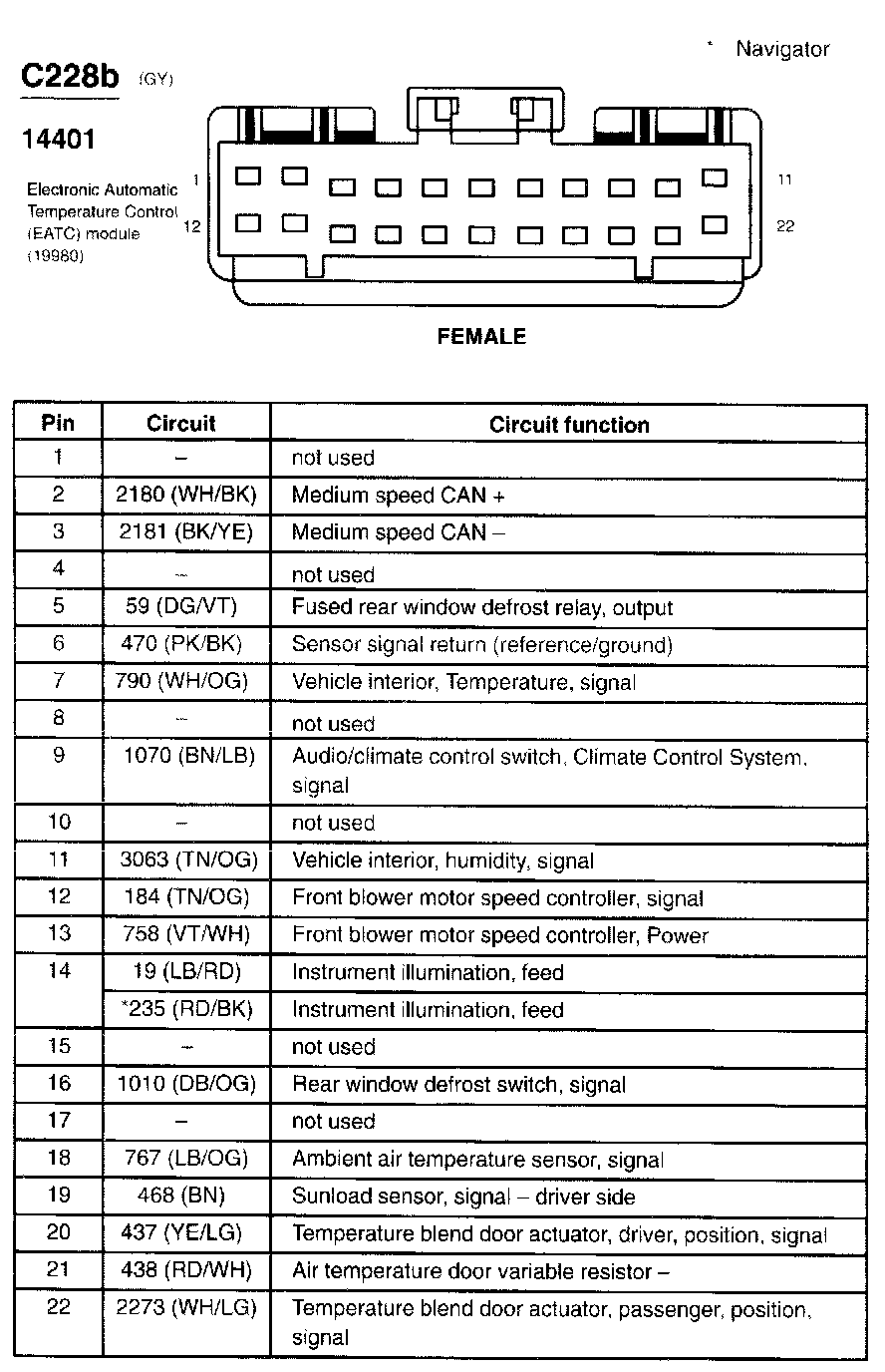

C228b:
