Home >> Lincoln >> 2006 >> Navigator 2WD V8-5.4L VIN 5 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC >> Auxiliary Function Selector Switch Assembly, Rear

Auxiliary Function Selector Switch Assembly, Rear

C3198a:

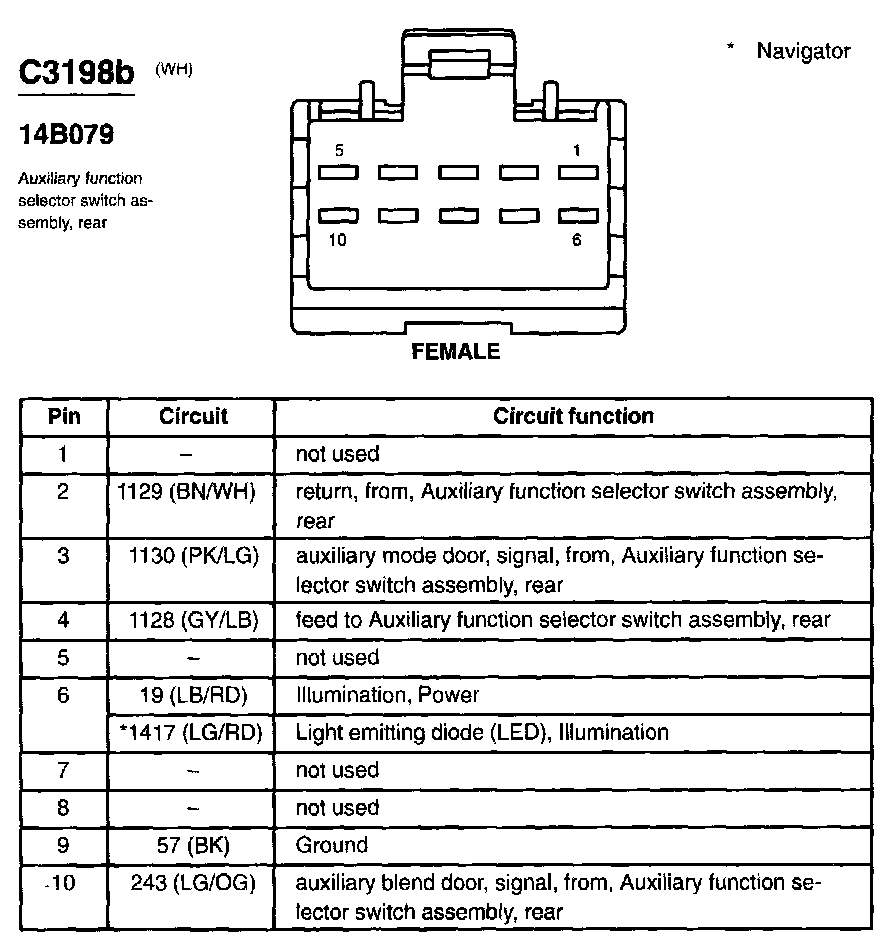

C3198b:
