Home >> Lincoln >> 2006 >> Navigator 2WD V8-5.4L VIN 5 >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Navigation Module >> Diagrams >> Audio/Navigation Control Unit

Audio/Navigation Control Unit

C2123a:



C2123b:



C2123c:



C2123d:



C2123e:



C2123f:



C2123g:

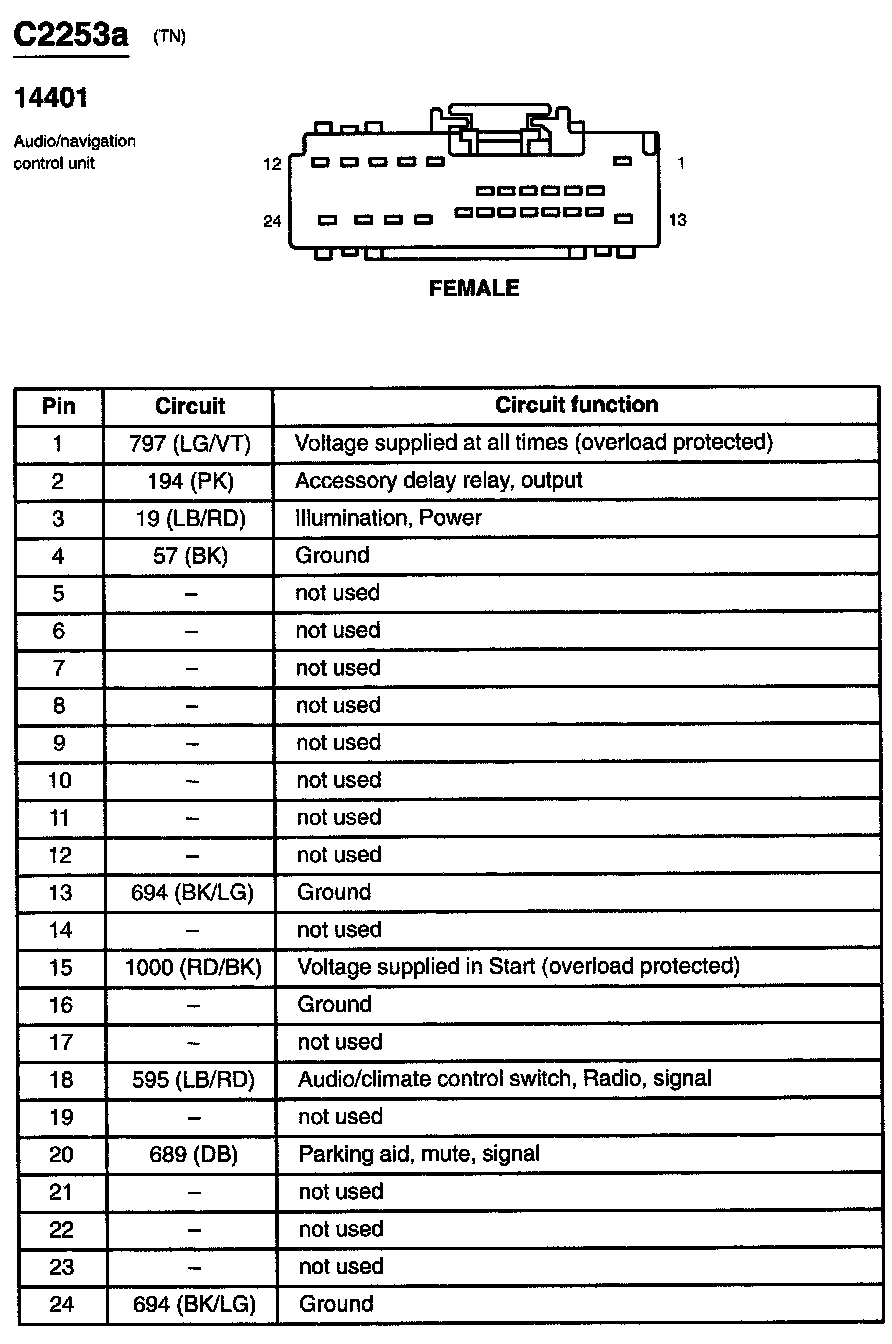

C2253a:

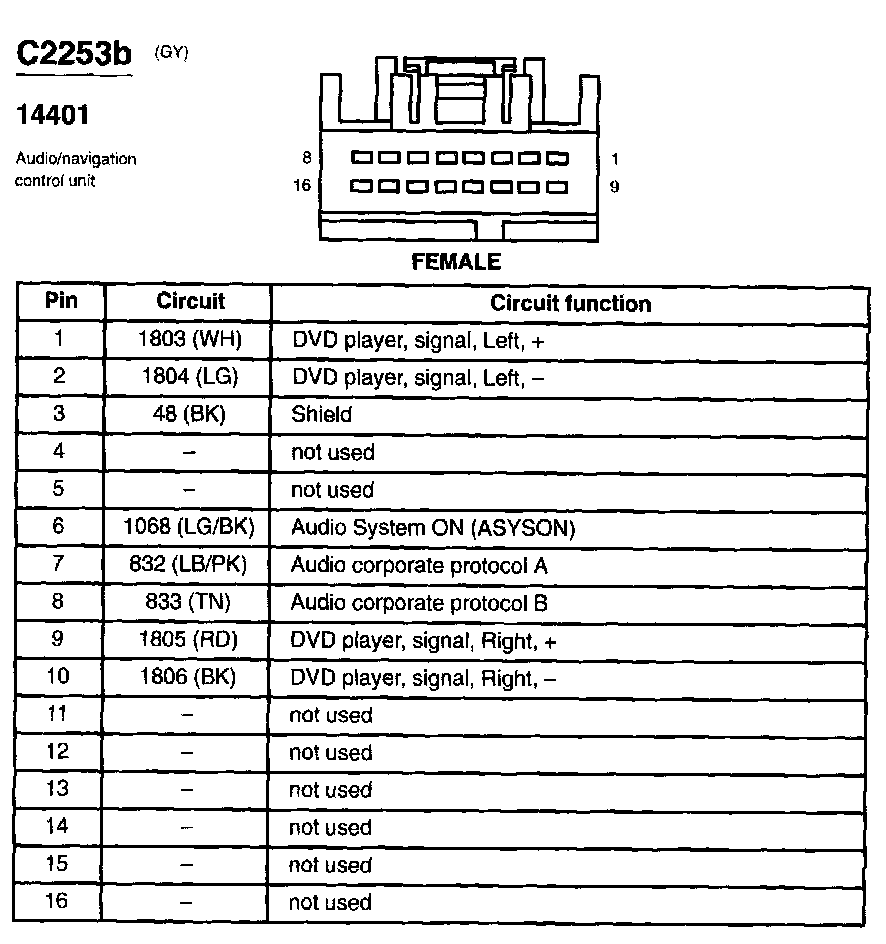

C2253b:



C2253c:



C2253d:

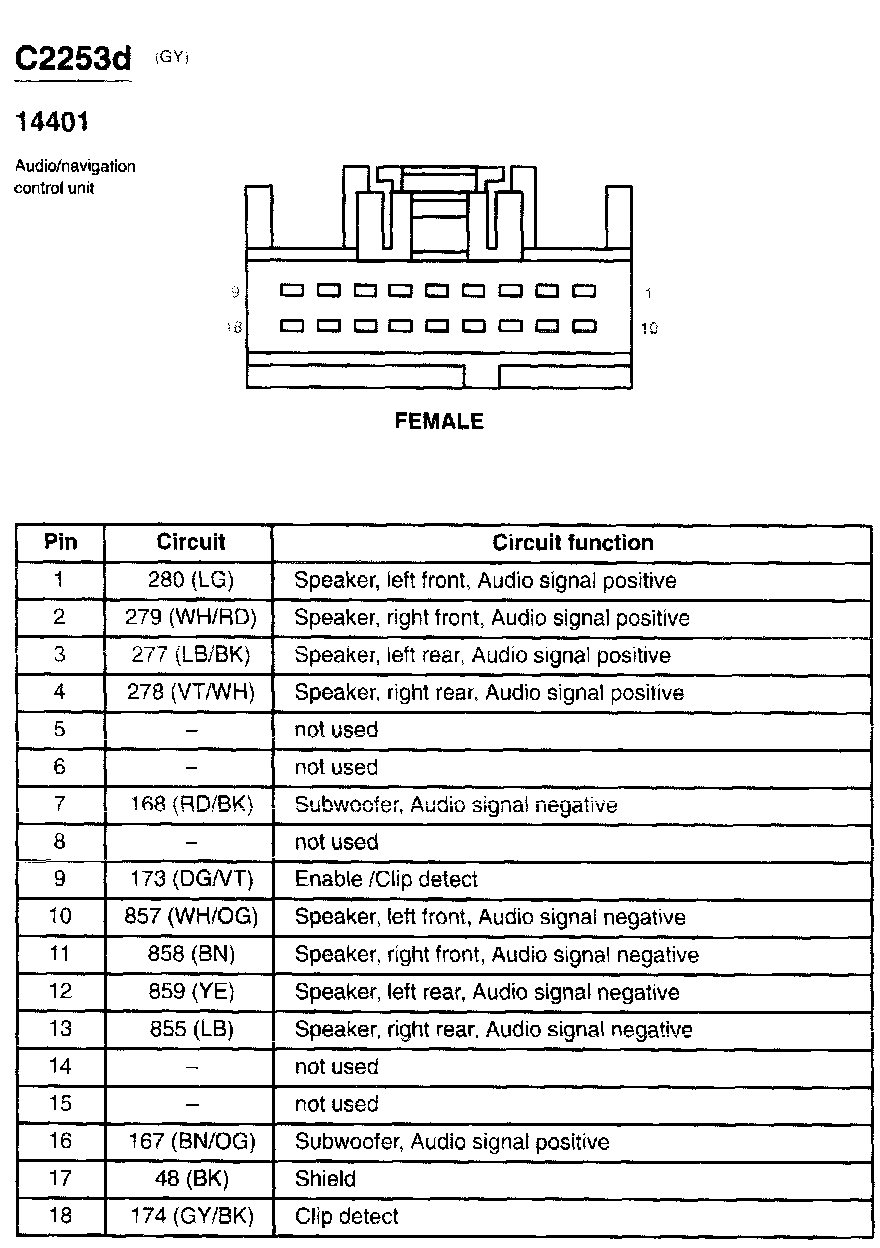

C2253e:
