Home >> Lincoln >> 2006 >> LS >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle-Transmission >> Disassembly And Assembly Of Subassemblies >> Overdrive Planetary and One-Way Clutch Assembly >> Notes

Overdrive Planetary and One-Way Clutch Assembly: Notes

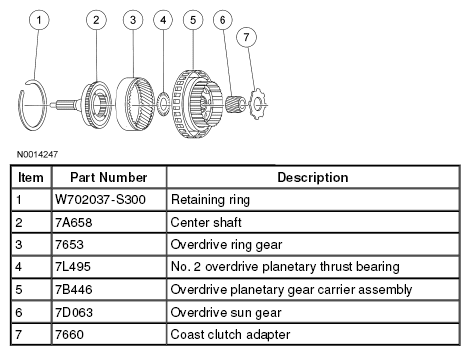

Fig 1: Exploded View Of Overdrive Planetary And One-Way Clutch Assembly

G04691525

Courtesy of FORD MOTOR CO.
