Instrument Panel - Exploded View

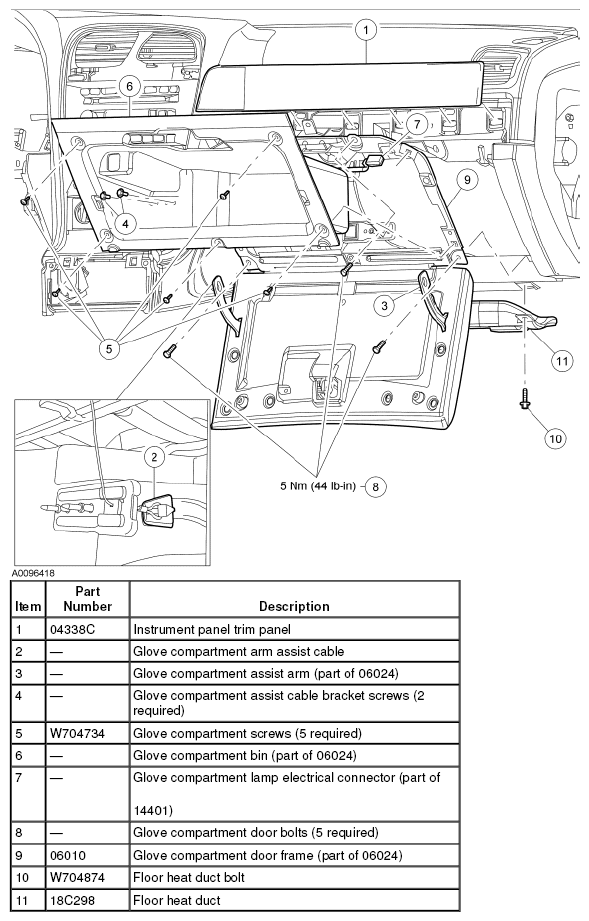

Fig 1: Exploded View Of Instrument Panel With Torque Specifications (Items 1-11)
G04693361Courtesy of FORD MOTOR CO.

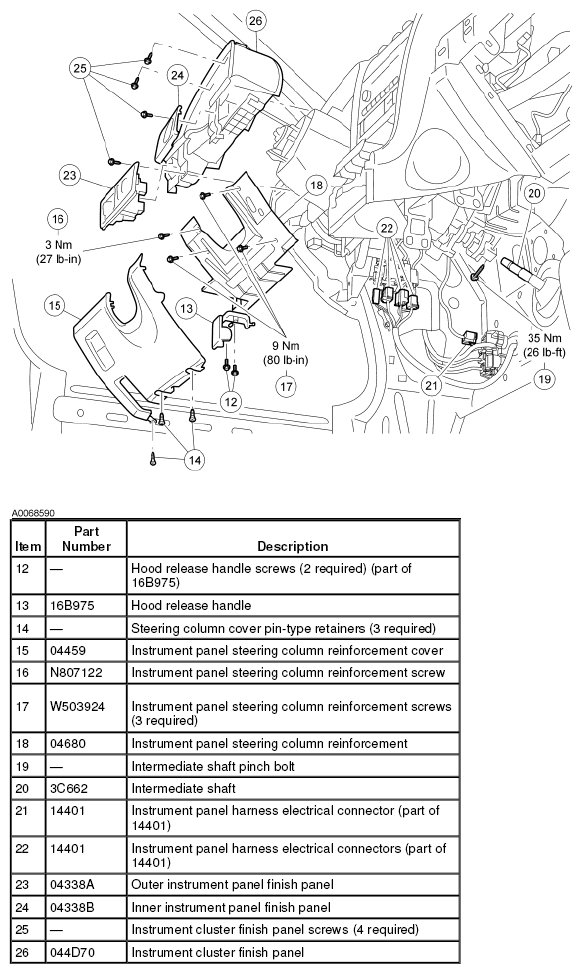

Fig 2: Exploded View Of Instrument Panel With Torque Specifications (Items 12-26)
G04693362Courtesy of FORD MOTOR CO.

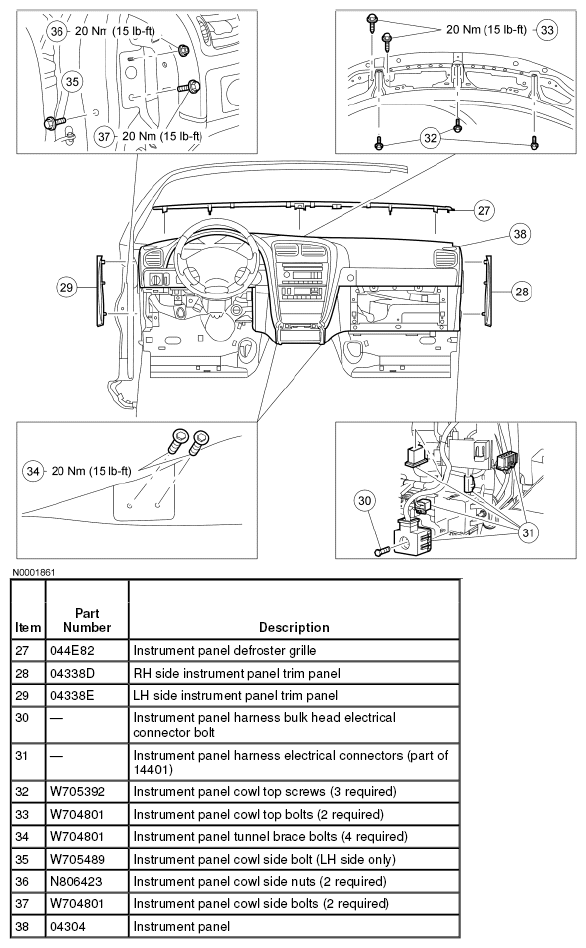

Fig 3: Exploded View Of Instrument Panel With Torque Specifications (Items 27-38)
G04693363Courtesy of FORD MOTOR CO.
  1. For additional information, refer to appropriate procedure.
