Home >> Lincoln >> 2006 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Control Module >> Heated Seat Module, Left Rear

Heated Seat Module, Left Rear

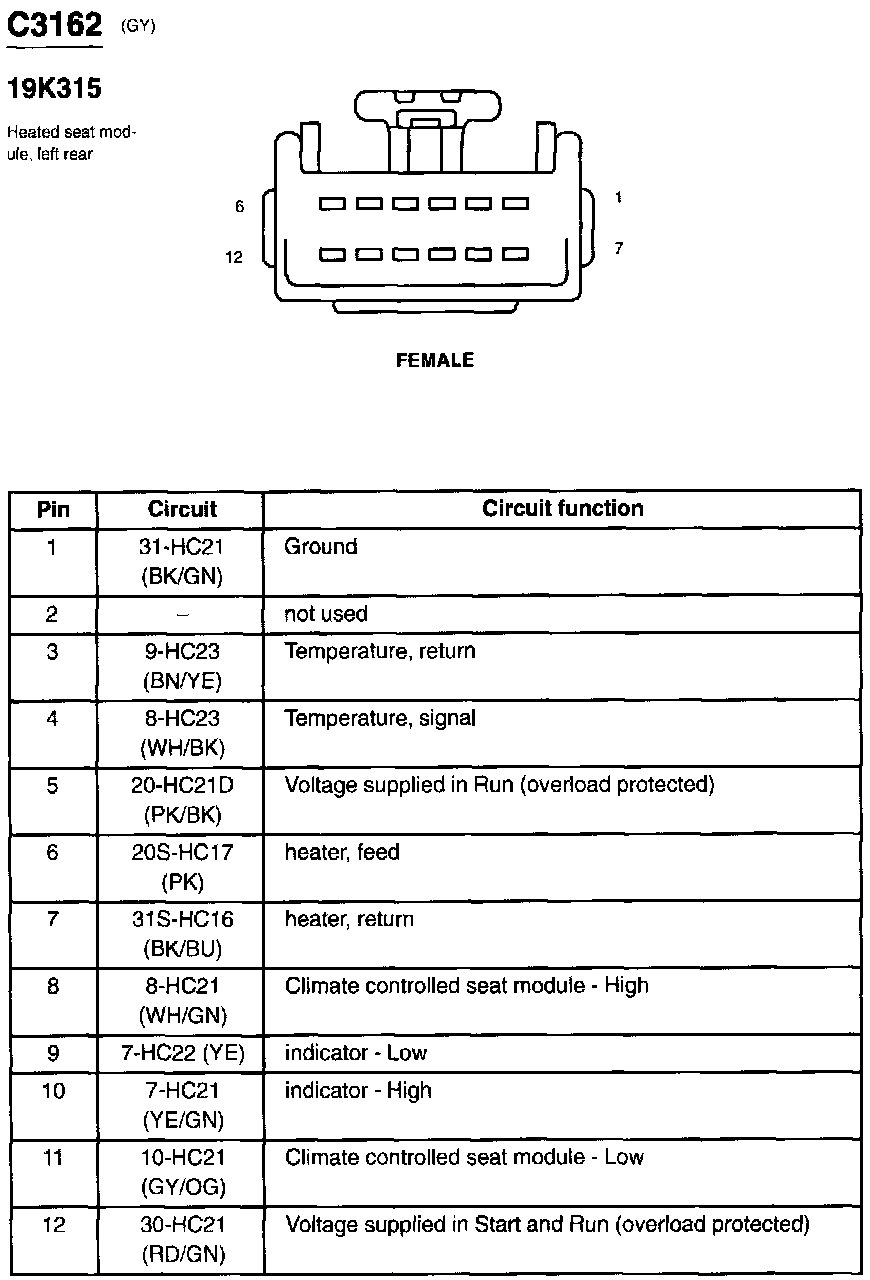

C3162:
