Home >> Lincoln >> 2005 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Disc Brake System >> Front

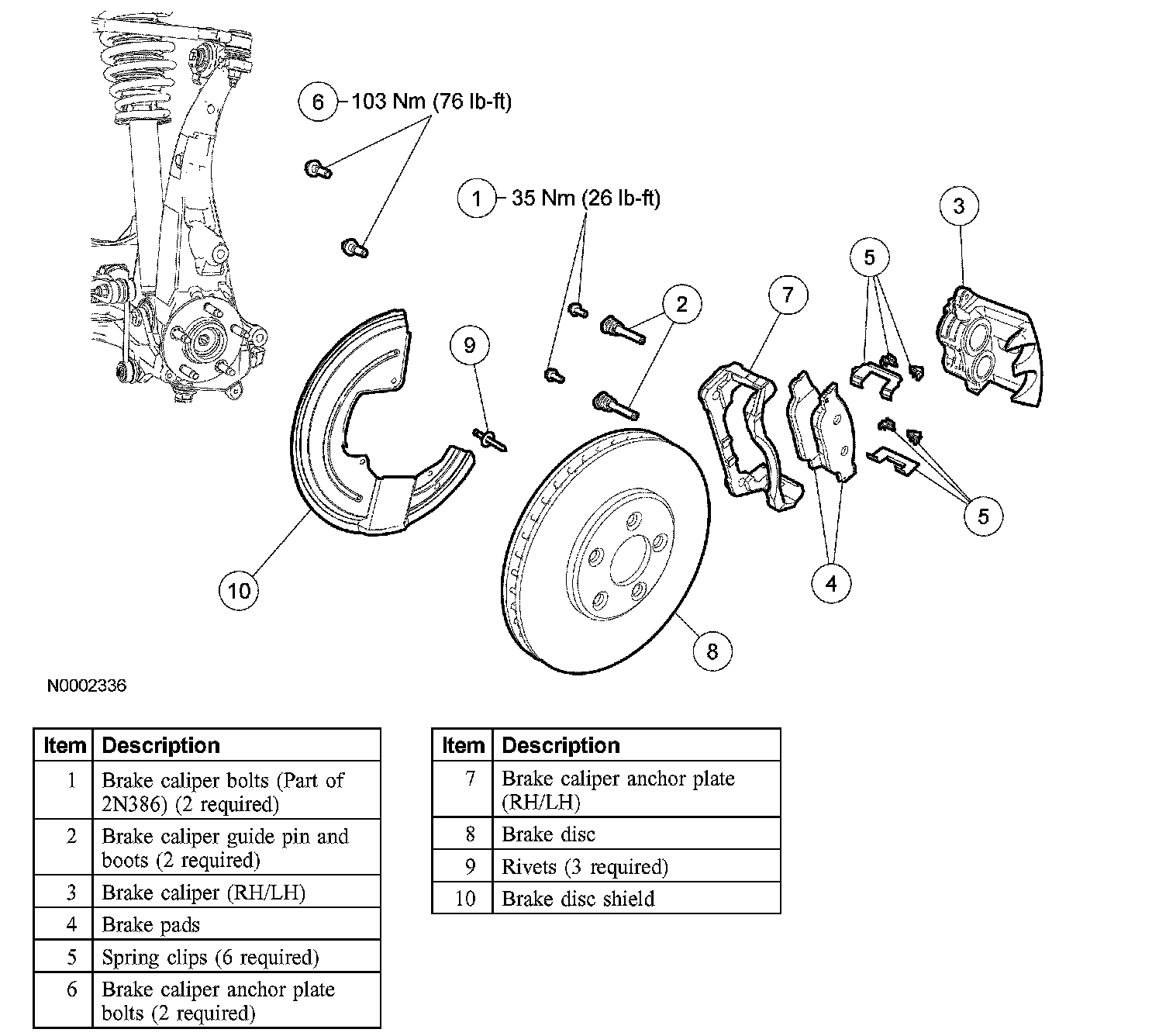

Front
