Brake Switch (Cruise Control): Service and Repair

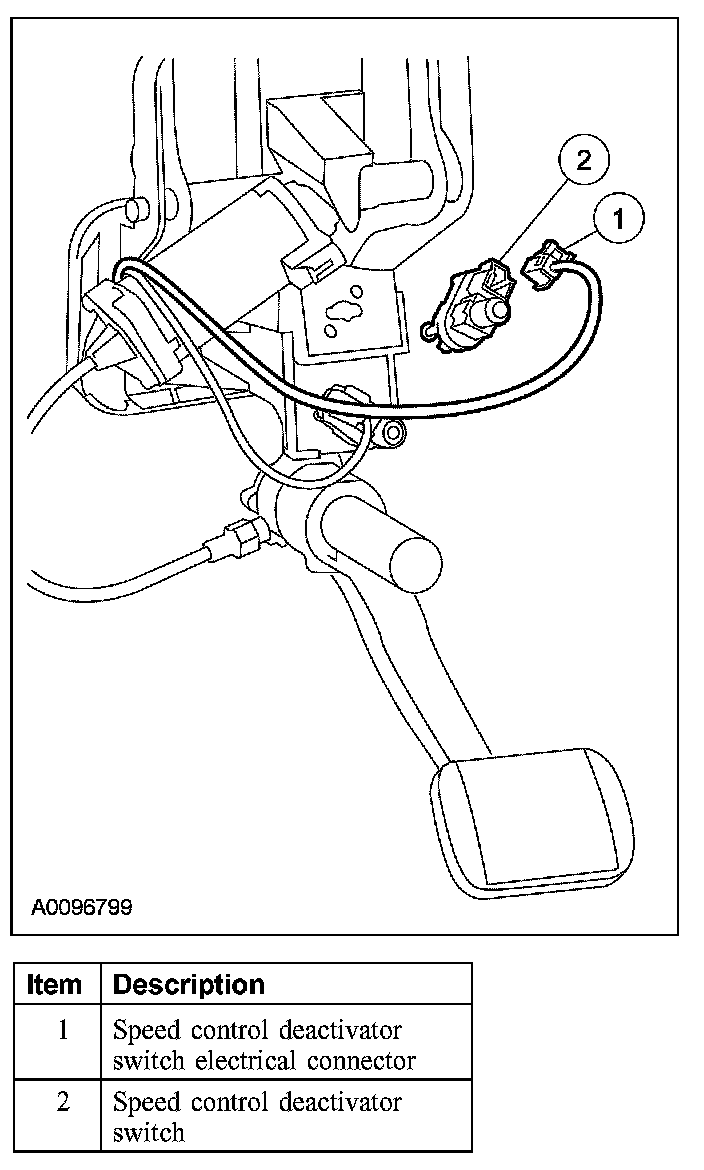

SPEED CONTROL DEACTIVATOR SWITCH







Removal
1. Disconnect the speed control deactivator switch electrical connector.
2. Rotate the speed control deactivator switch counterclockwise 45 degrees and remove it from the bracket.

Installation
1. While applying the brake pedal, install the speed control deactivator switch in the bracket and rotate it 45 degrees clockwise.
2. Connect the electrical connector.
