Removal and Installation

  1. Remove the air cleaner outlet tube (9B659). For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
  2. Disconnect the connector from the ignition coil.

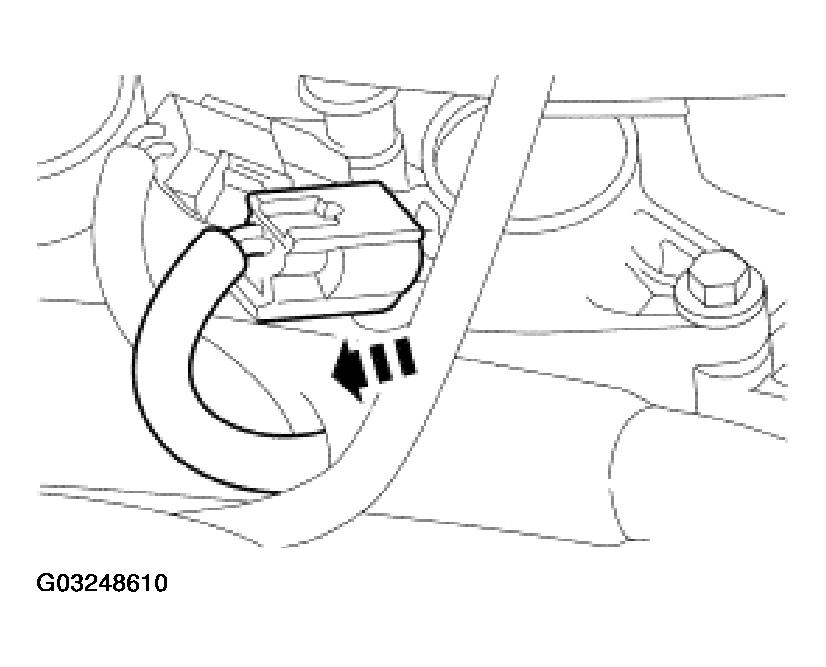

    Fig 1: Disconnecting Connector From Ignition Coil
    G03248610Courtesy of FORD MOTOR CO.
  3. Remove the bolt from the ignition coil.

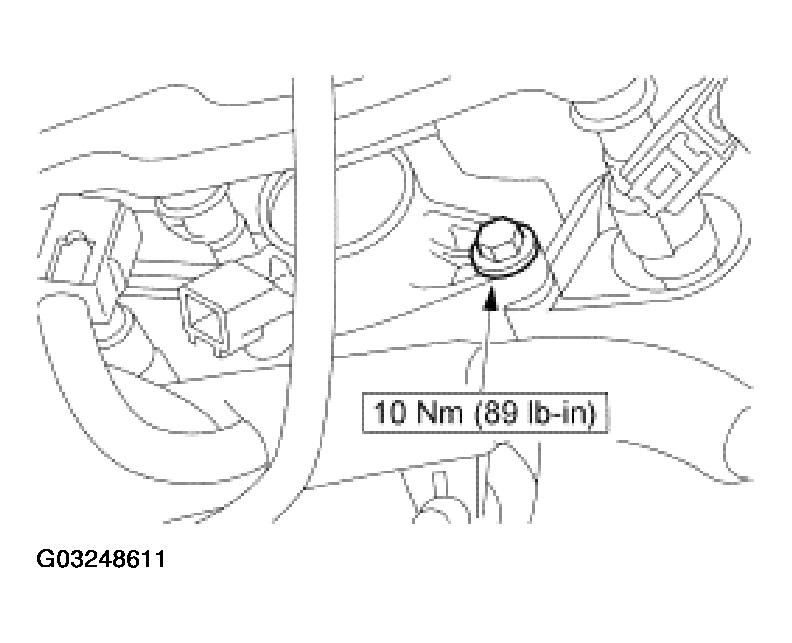

    Fig 2: Removing Bolt From Ignition Coil
    G03248611Courtesy of FORD MOTOR CO.
  4. Remove the ignition coil on plug.

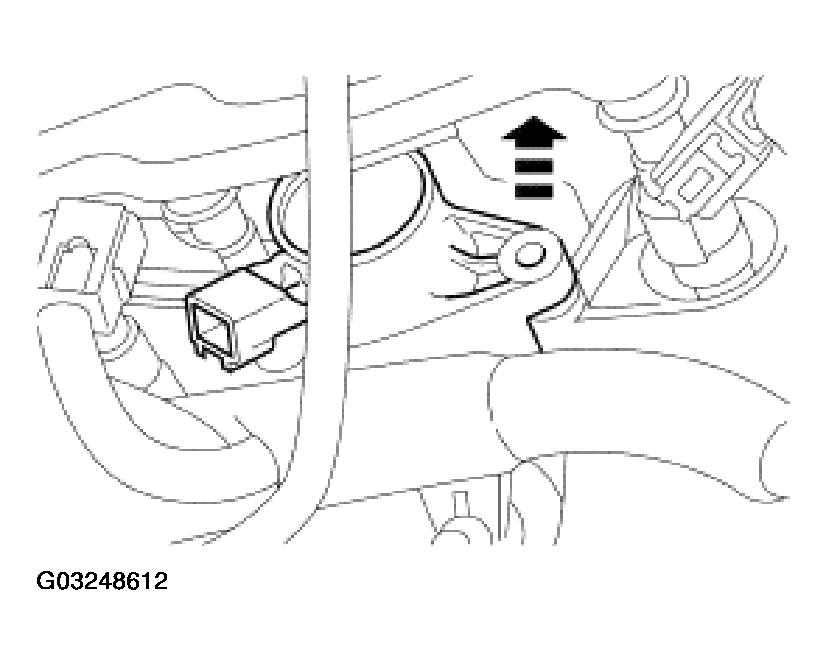

    Fig 3: Removing Ignition Coil On Plug
    G03248612Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
    Fig 4: Installing Bolt To Ignition Coil
    G03248613Courtesy of FORD MOTOR CO.
