Band/Clutch Application Chart A

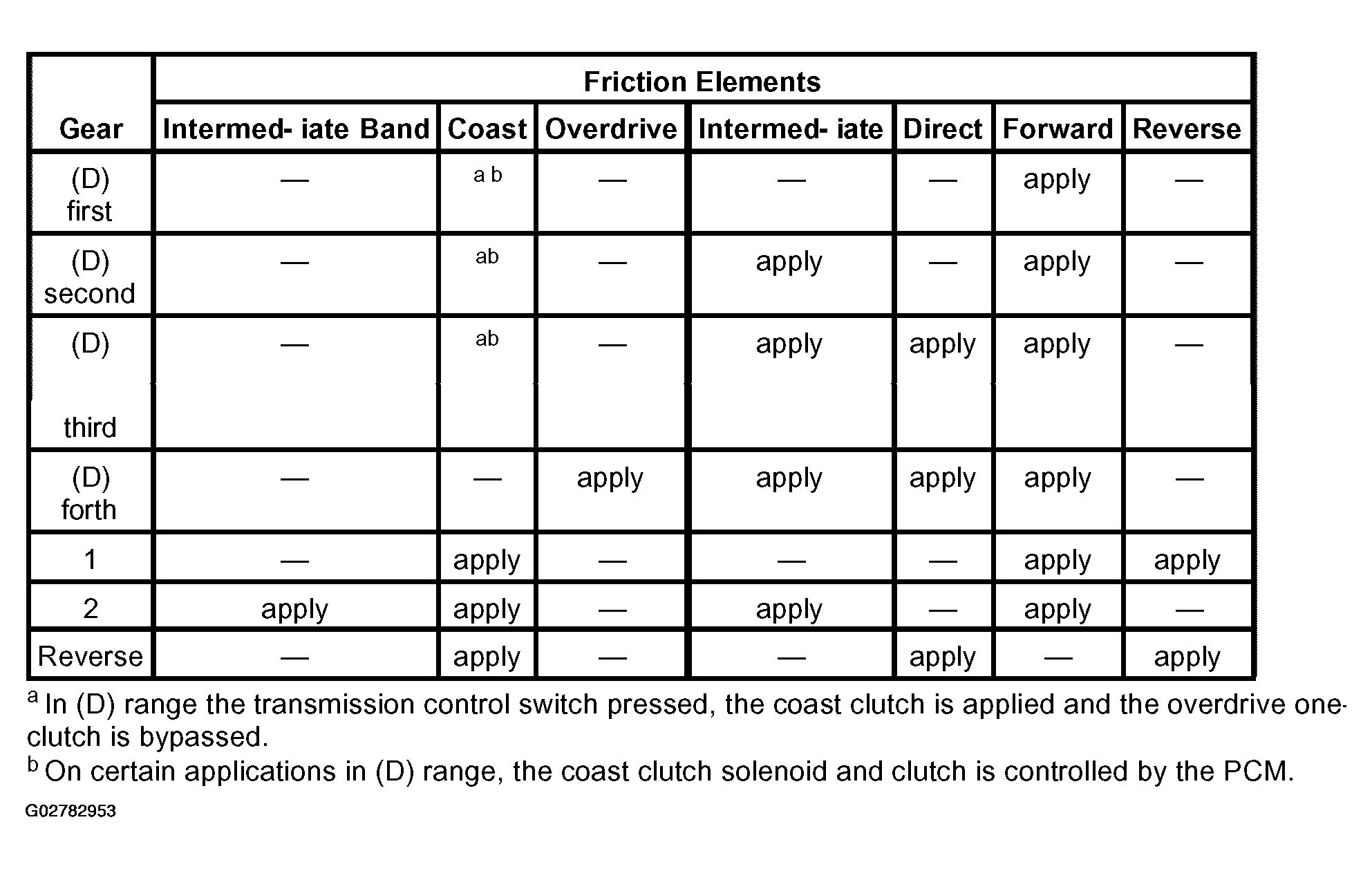

Fig 1: Band/Clutch Application Chart A

G02782953

Courtesy of FORD MOTOR CO.
