Home >> Lincoln >> 2004 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle

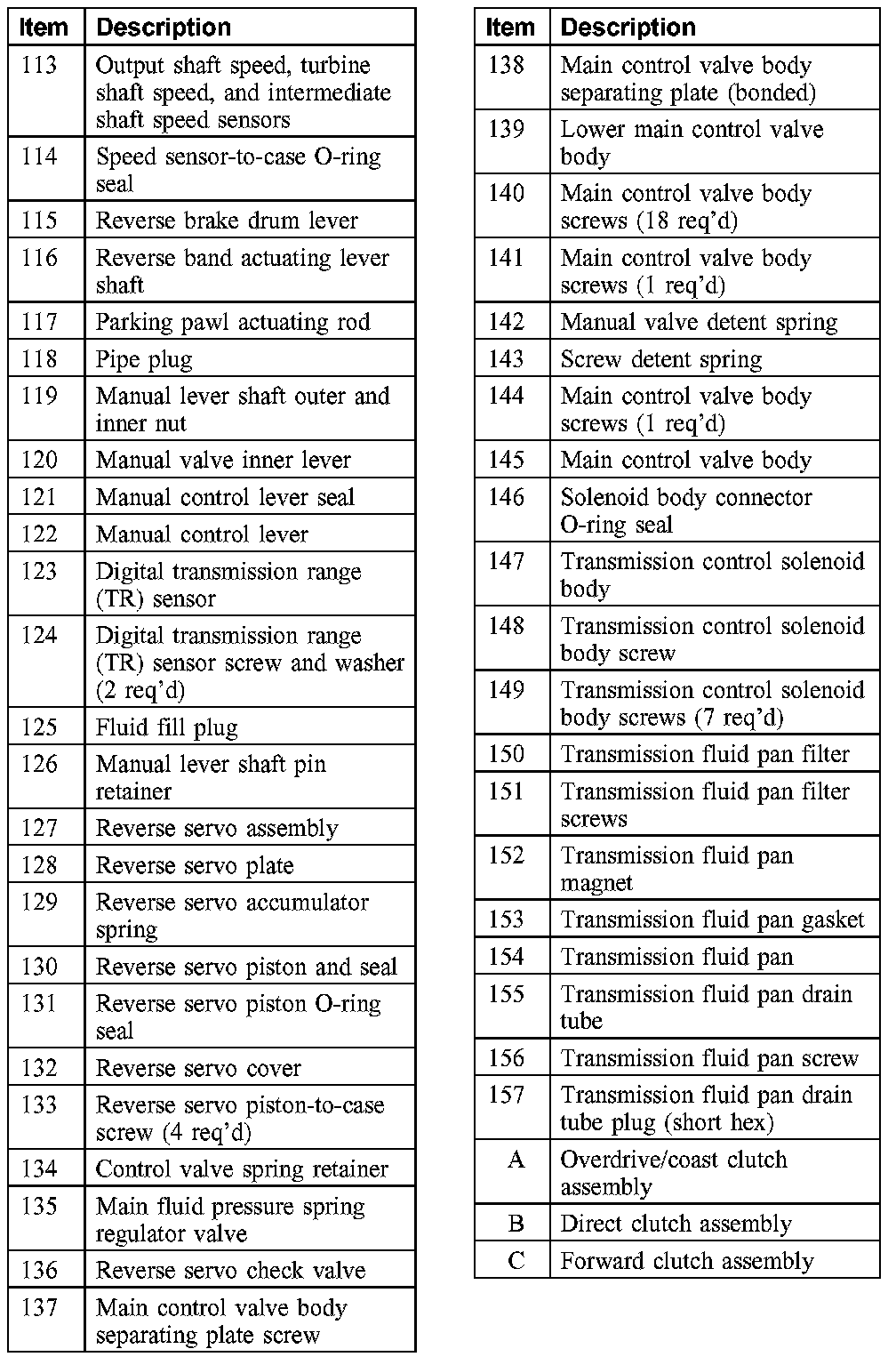

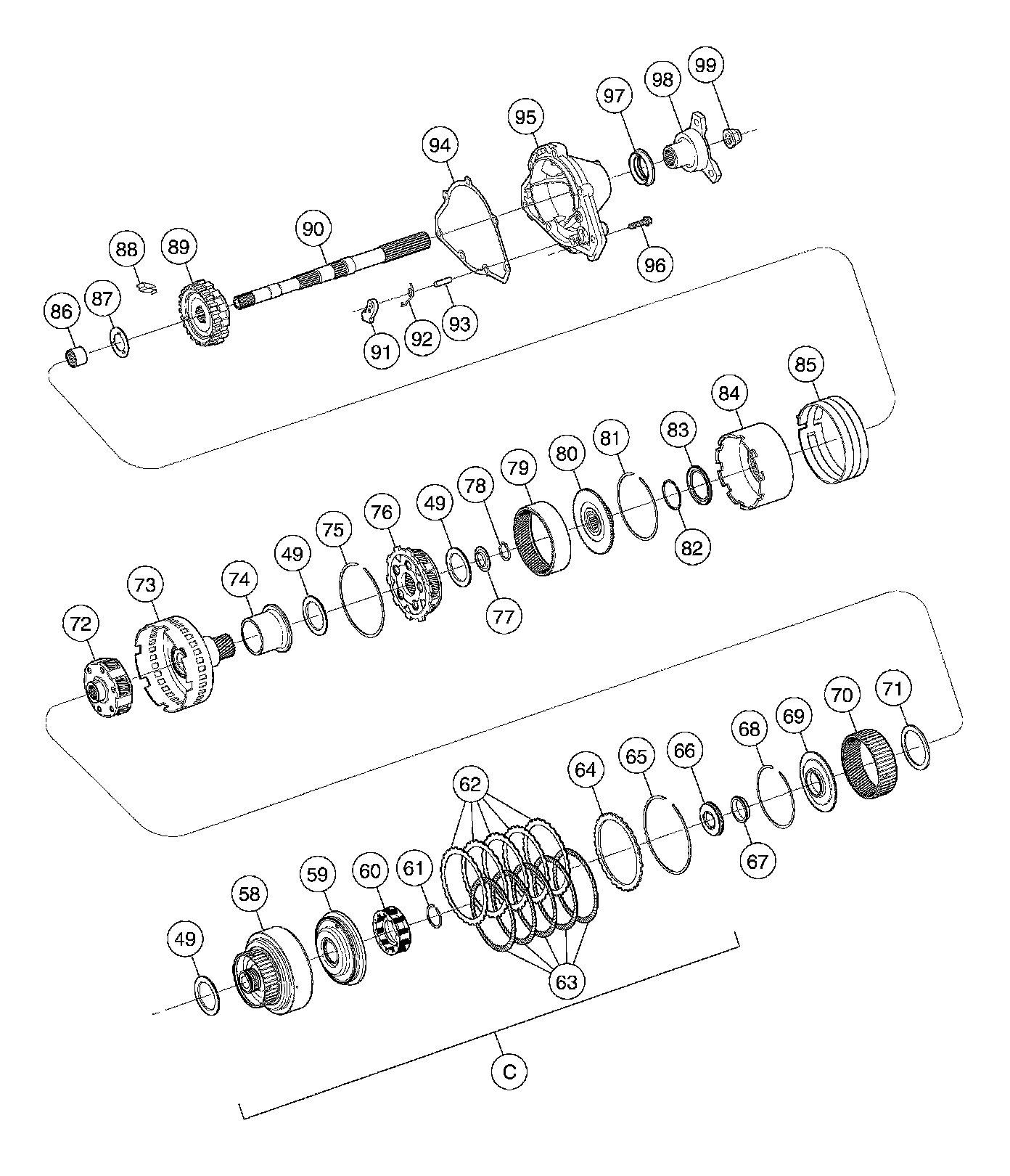

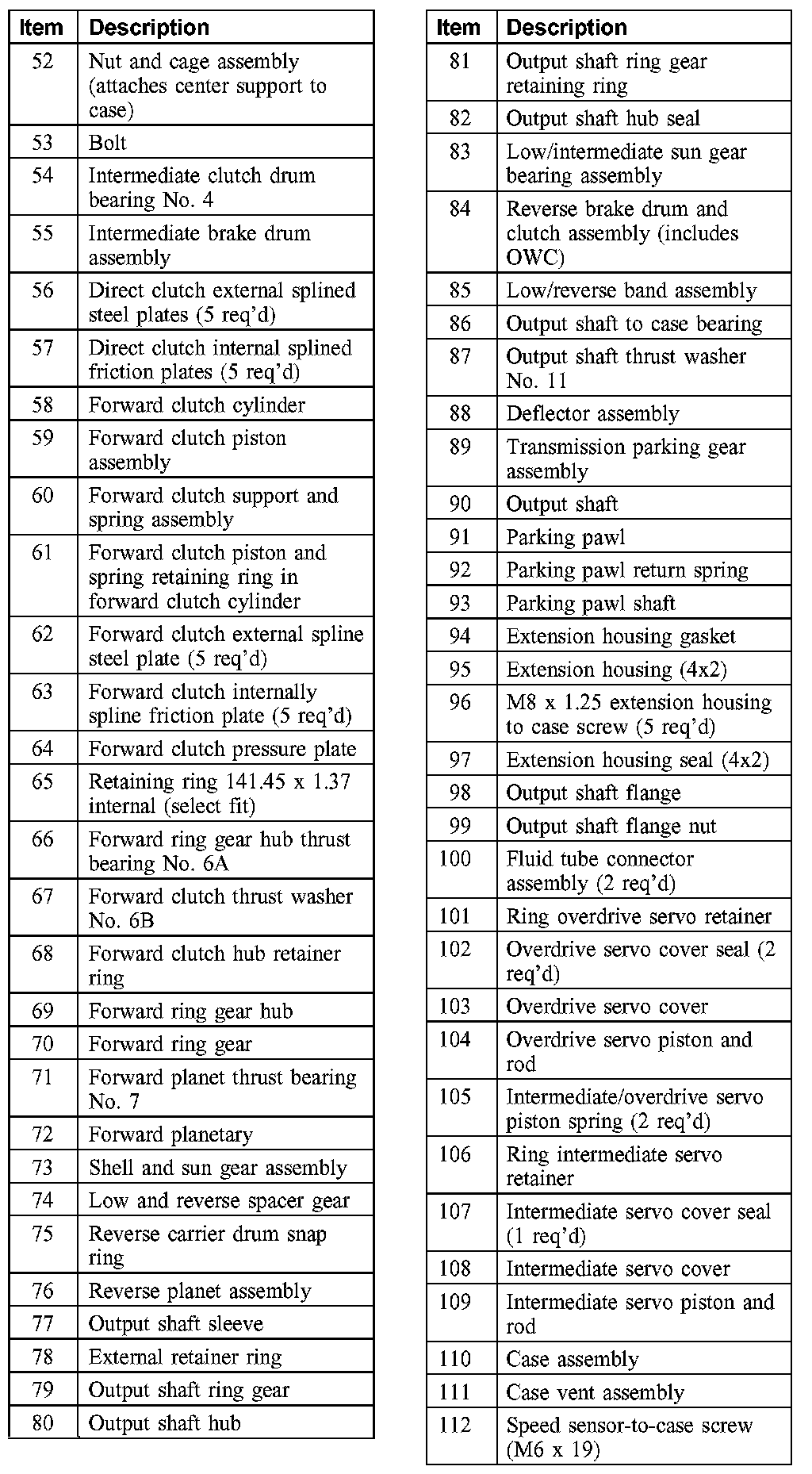

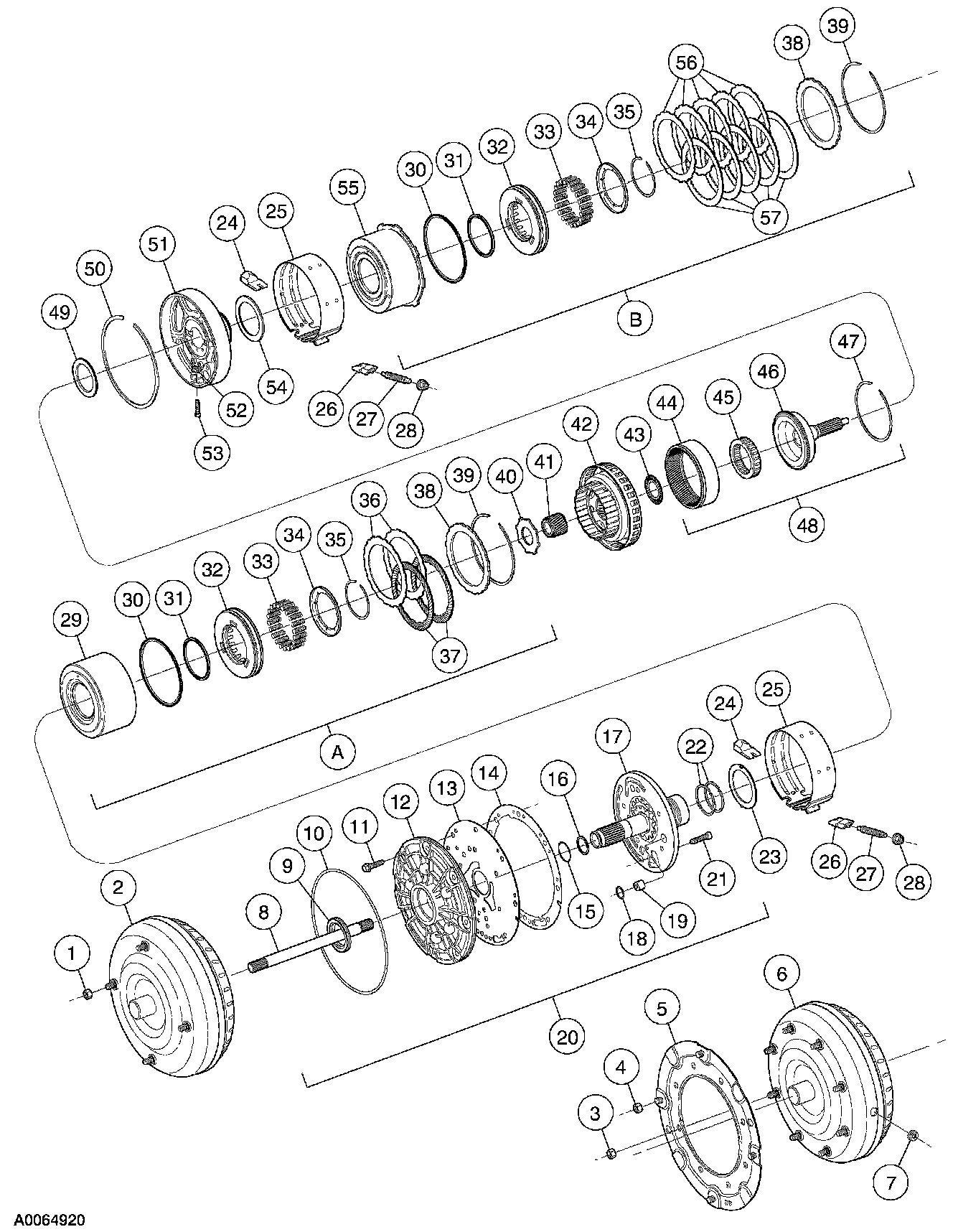

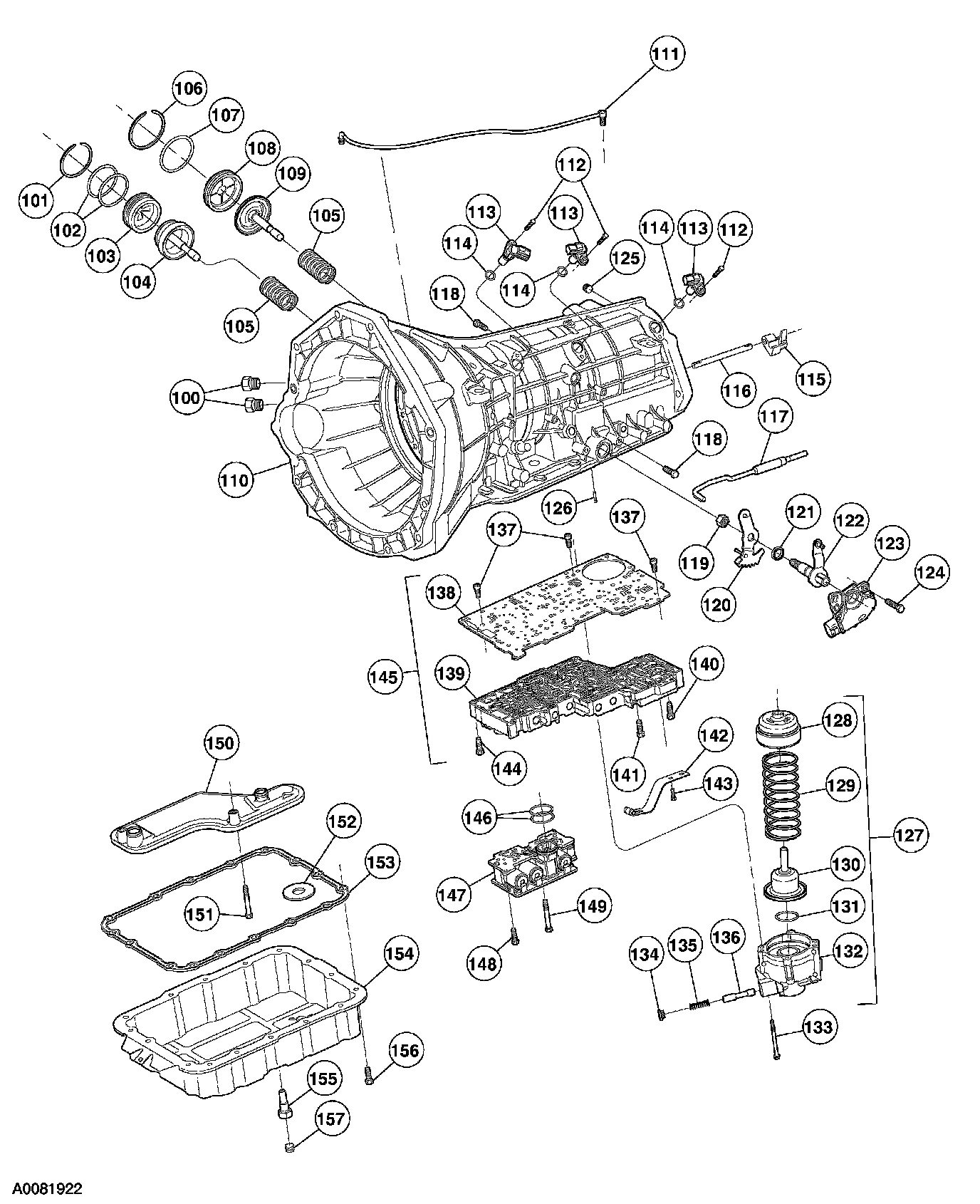

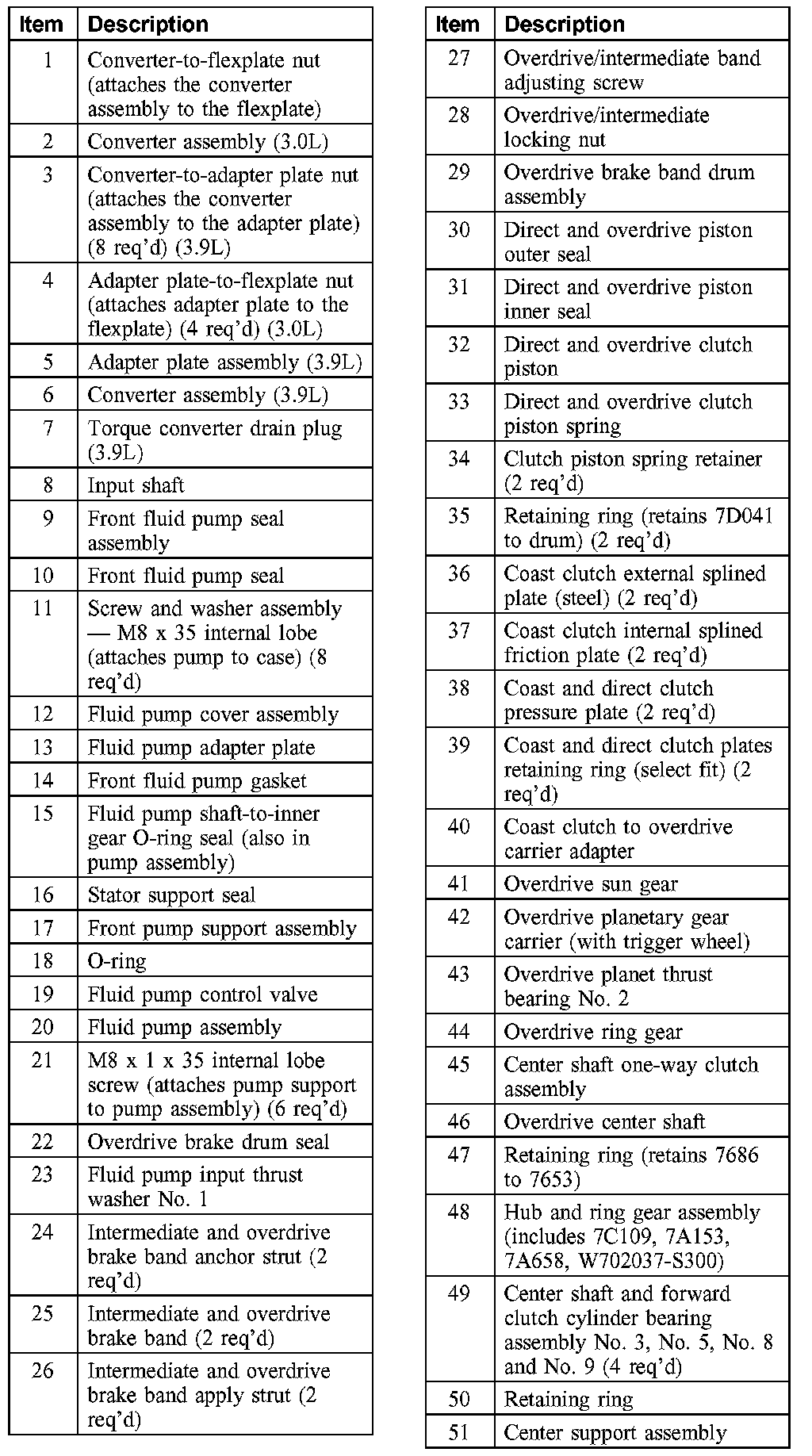

Automatic Transmission/Transaxle

Part 1 Of 6:



Part 2 Of 6:



Part 3 Of 6:



Part 4 Of 6:



Part 5 Of 6:



Part 6 0f 6:
