Engine Temperature Sensor: Service and Repair
CYLINDER HEAD TEMPERATURE (CHT) SENSORREMOVAL
1. Disconnect the battery ground cable.

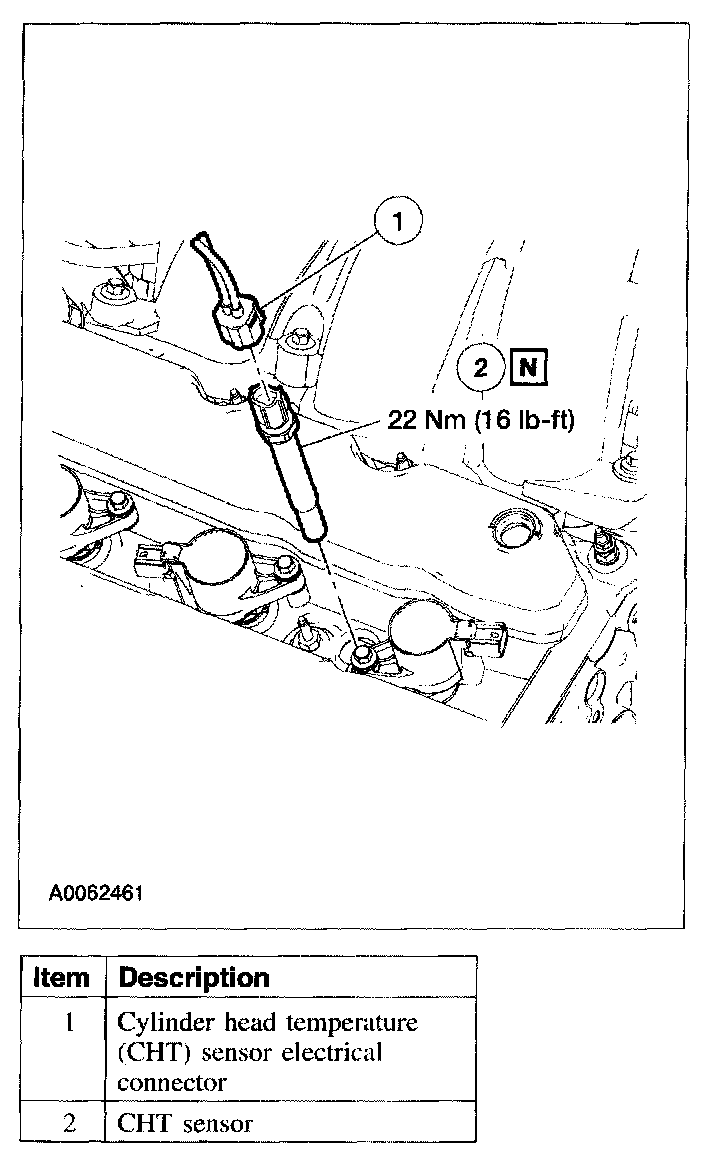

2. Remove the components in the order indicated in the illustration and table.
INSTALLATION
1. To install, reverse the removal procedure.
