Home >> Lincoln >> 2004 >> Aviator AWD >> Repair and Diagnosis >> Engine Performance >> System >> Fuel System >> Removal And Installation >> Inertia Fuel Shutoff (IFS) Switch

Inertia Fuel Shutoff (IFS) Switch

  1. Remove the parts in the order indicated in the following illustration and table.

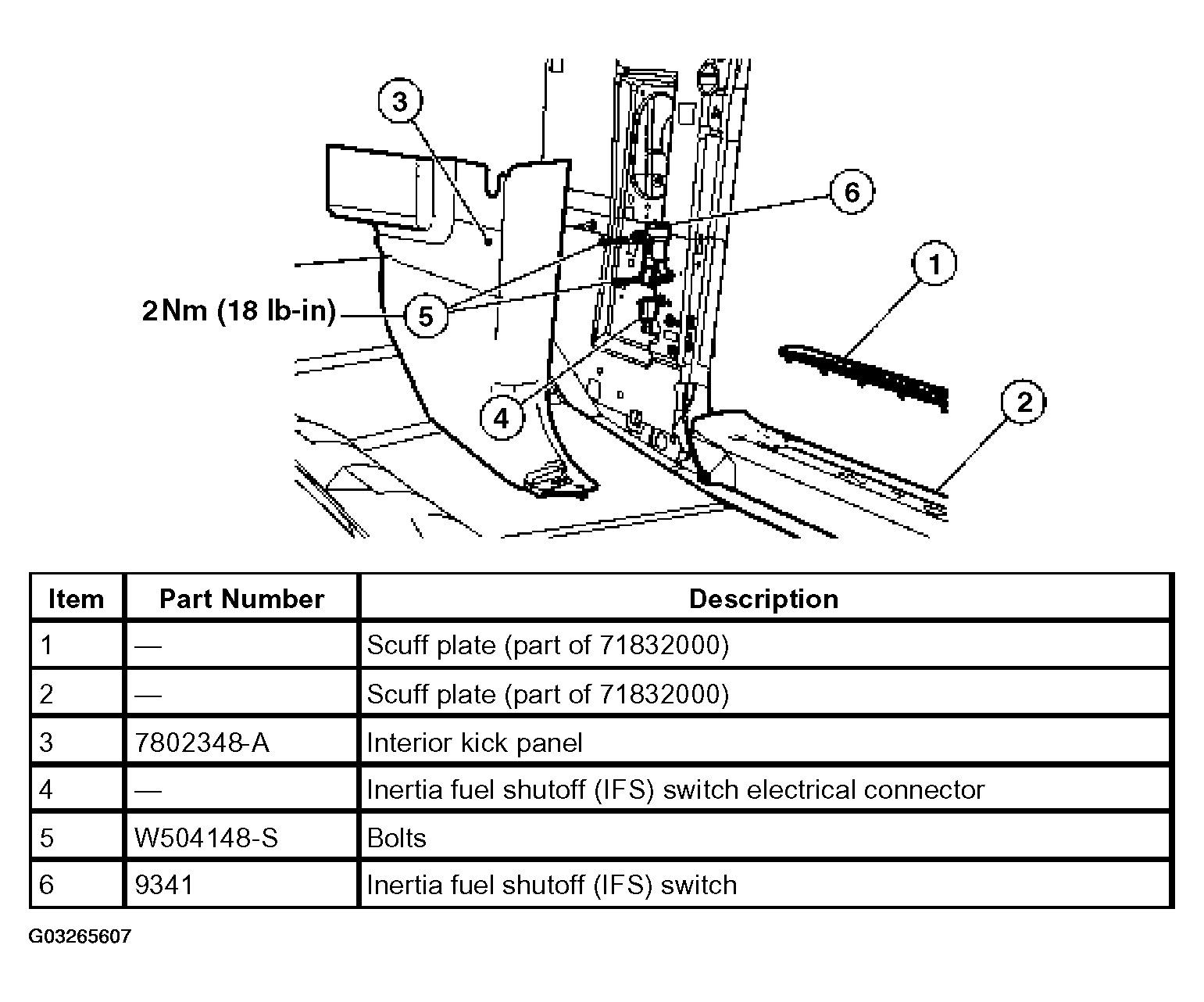

    Fig 1: Removing Inertia Fuel Shutoff (IFS) Switch Components (Items 1-6)
    G03265607Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
