Home >> Lincoln >> 2003 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Locations >> Splice Locations

Splice Locations

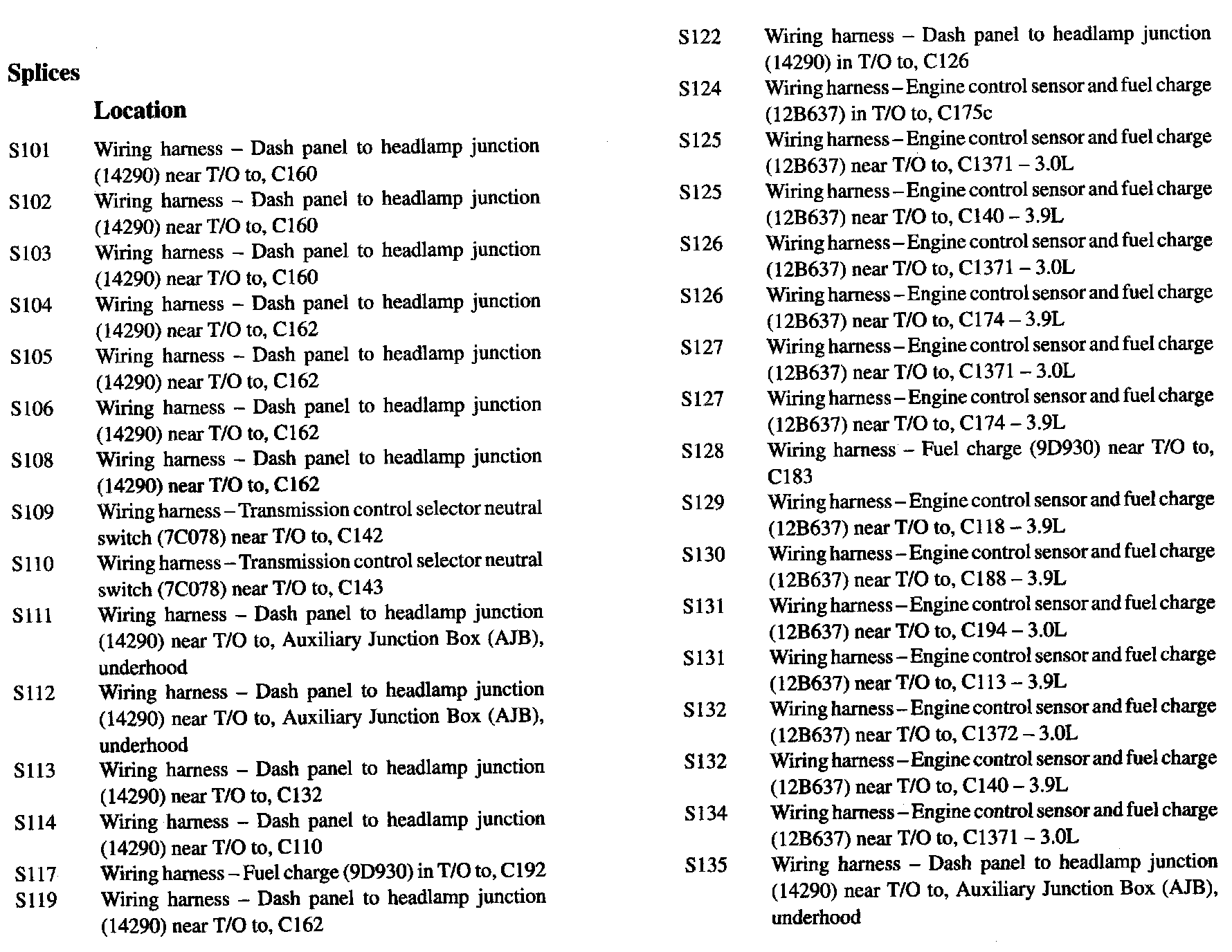

S101 - S135:

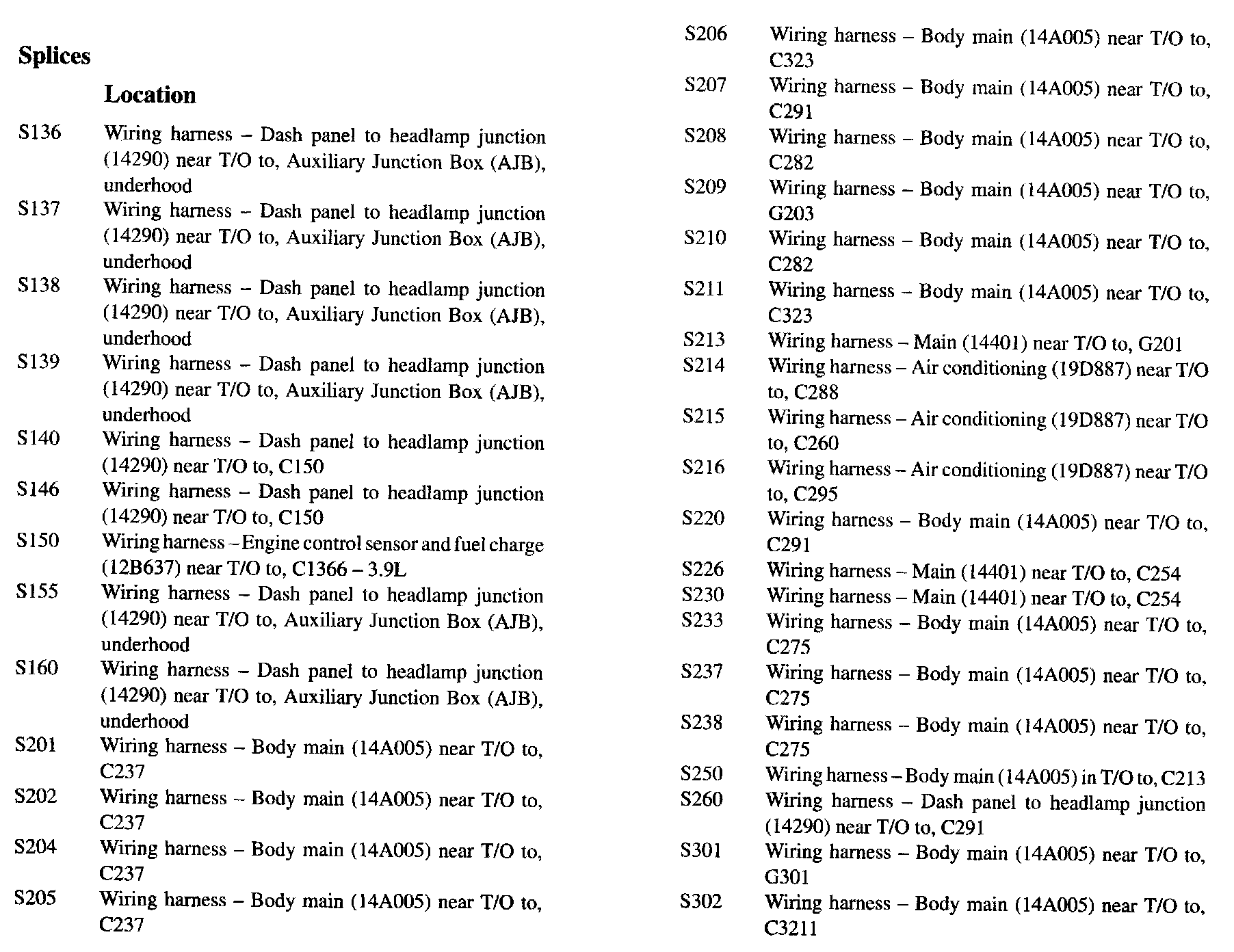

S136 - S302:

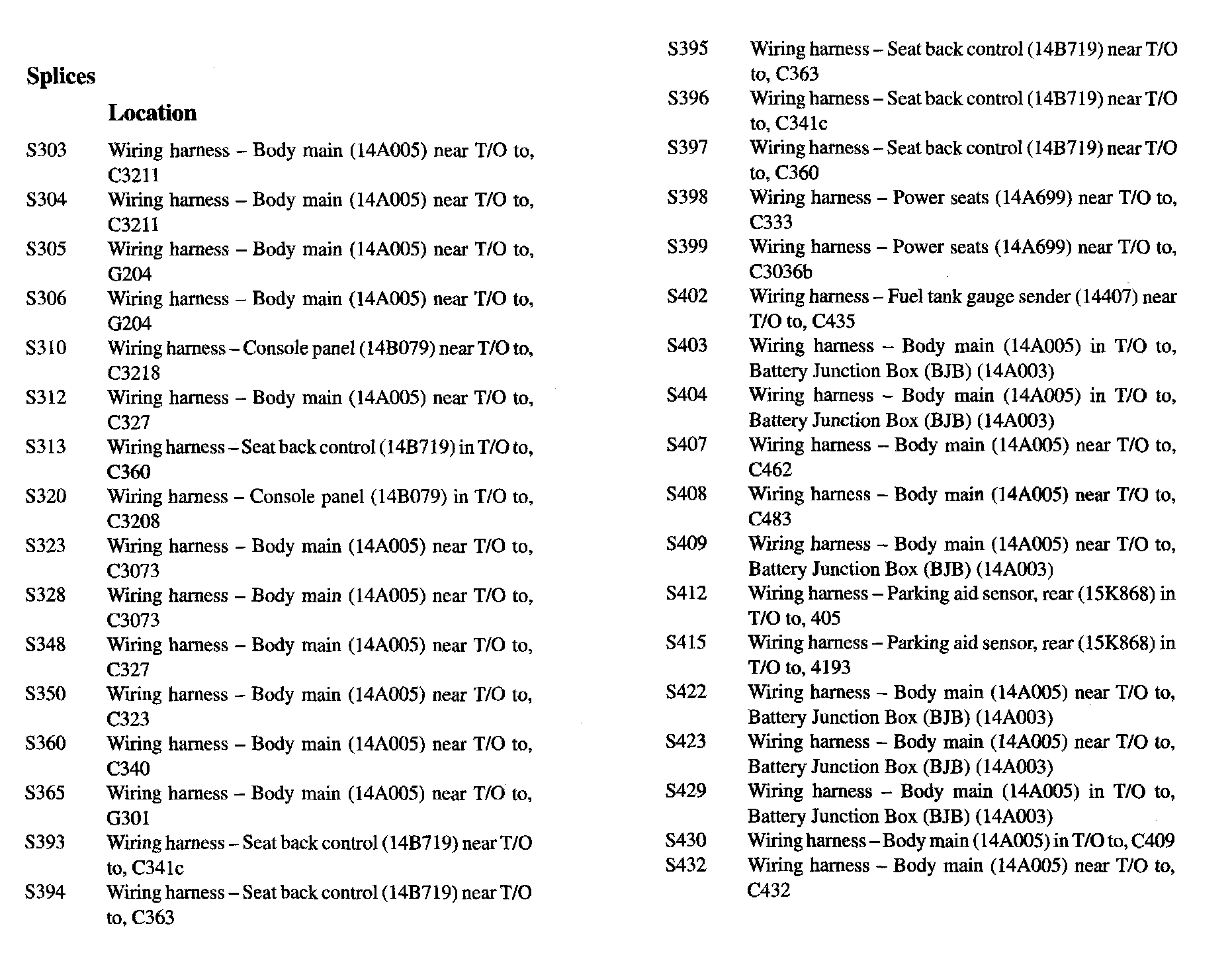

S303 - S432:

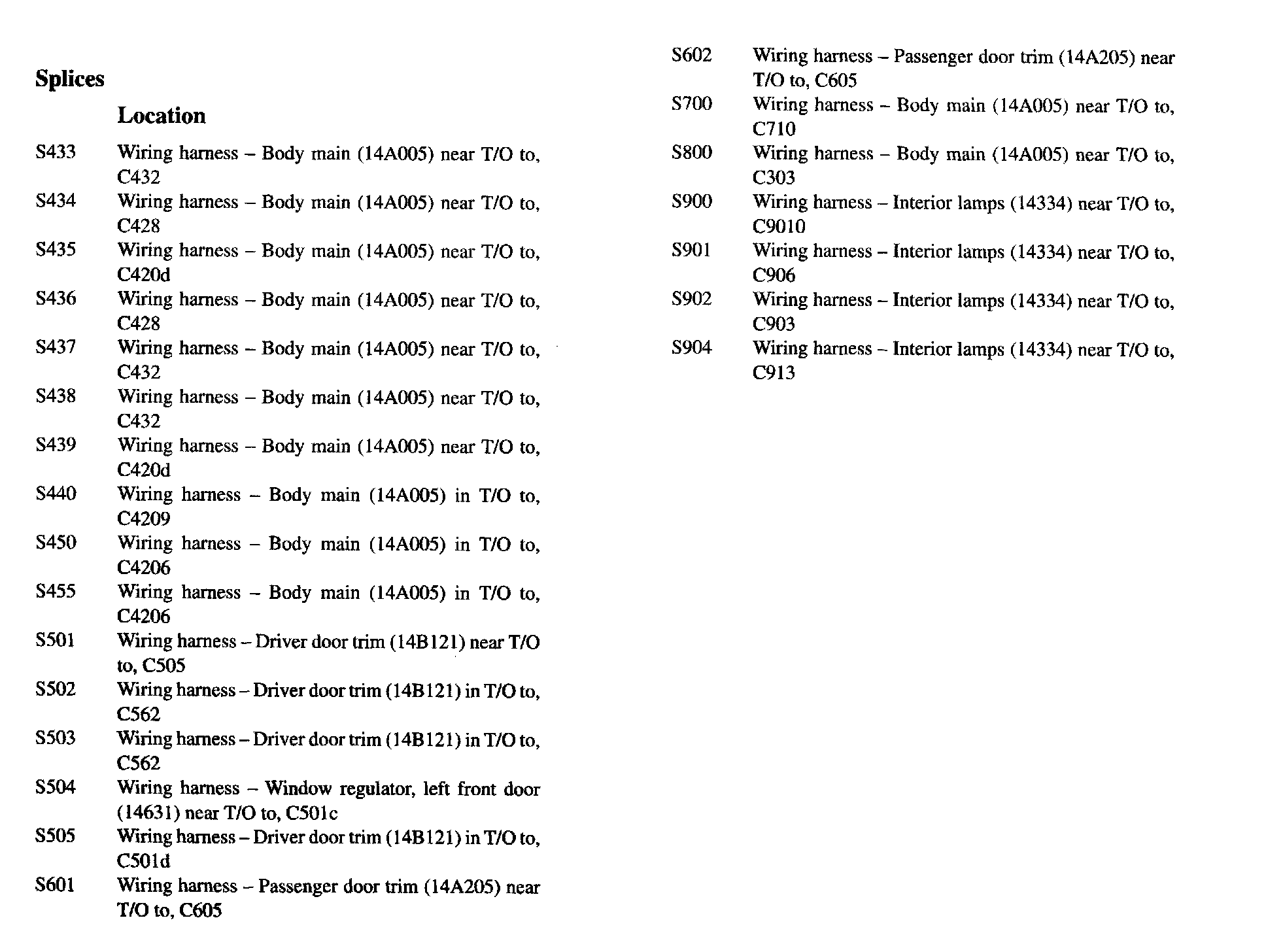

S433 - S904:
