Home >> Lincoln >> 2003 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Blower Motor Speed Control Module C297

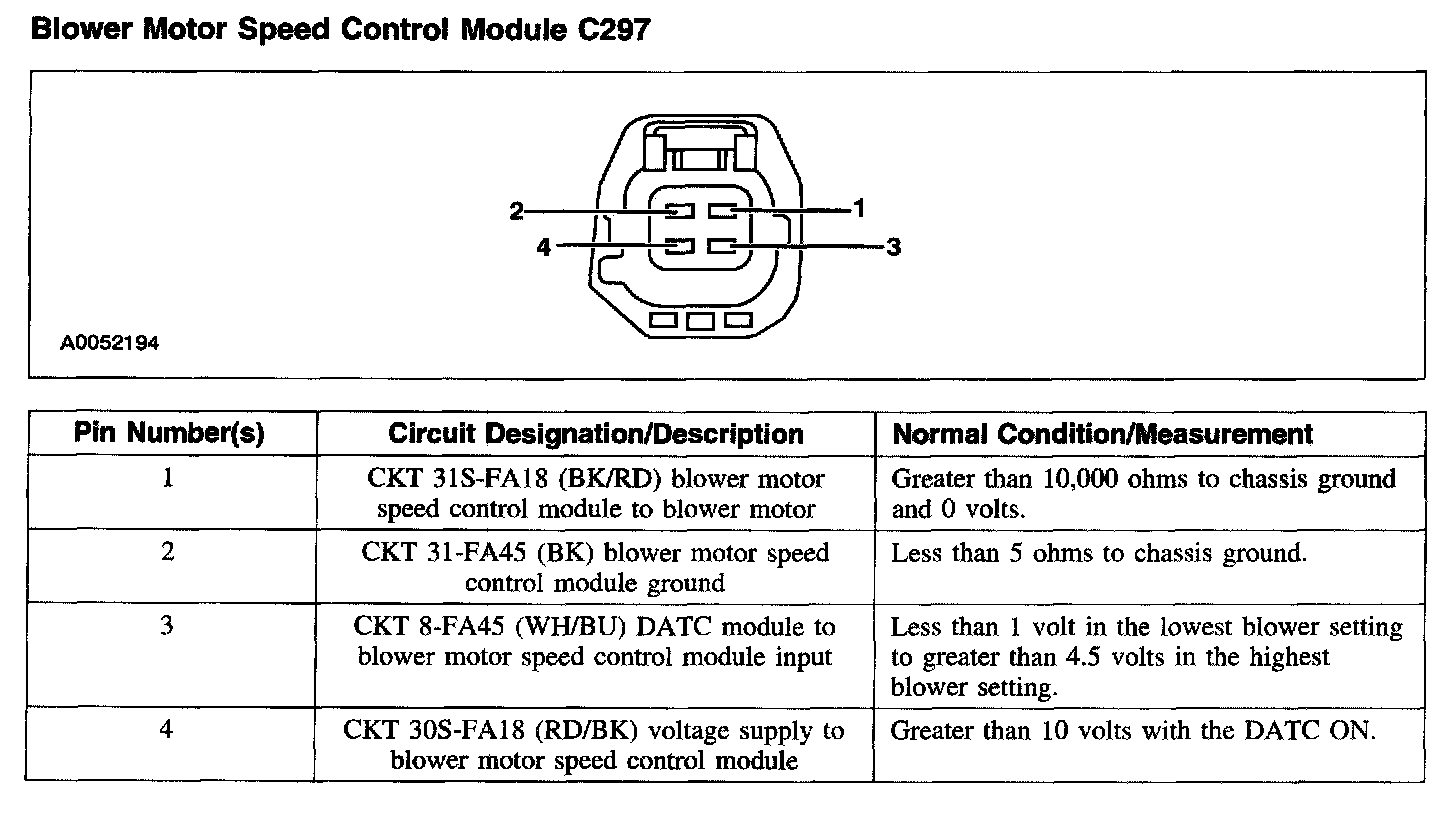

Blower Motor Speed Control Module C297

Blower Motor Speed Control Module C297:
