Crankshaft Position Sensor: Service and Repair
CRANKSHAFT POSITION (CKP) SENSORREMOVAL
1. Disconnect the battery ground cable.
2. Remove the accessory drive belt.

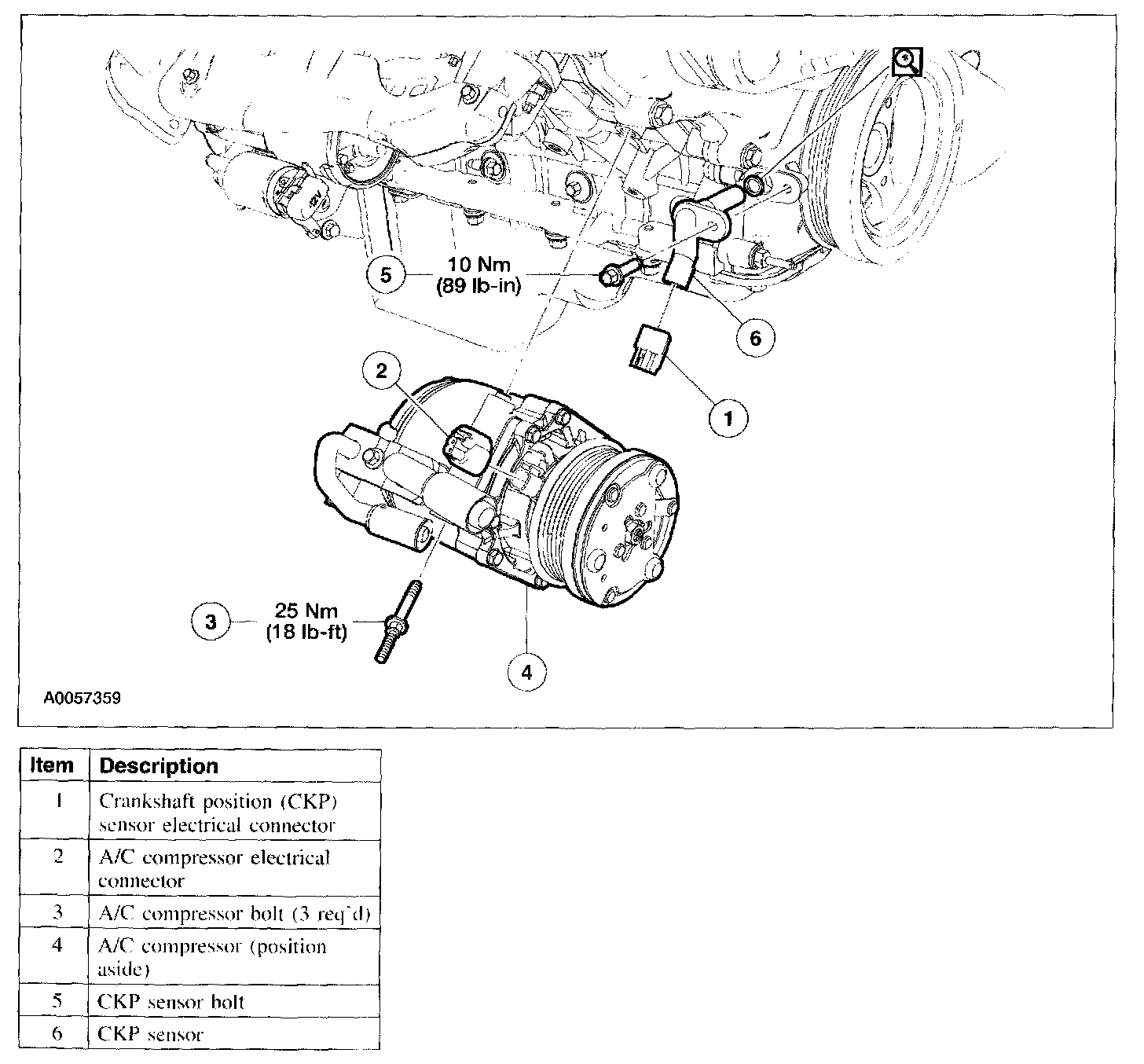

3. Remove the components in the order indicated in the illustration and table.
INSTALLATION
1. To install, reverse the removal procedure.
