Control Module HVAC: Service and Repair
BLOWER MOTOR SPEED CONTROLREMOVAL
1. Remove the RH lower instrument panel insulator.

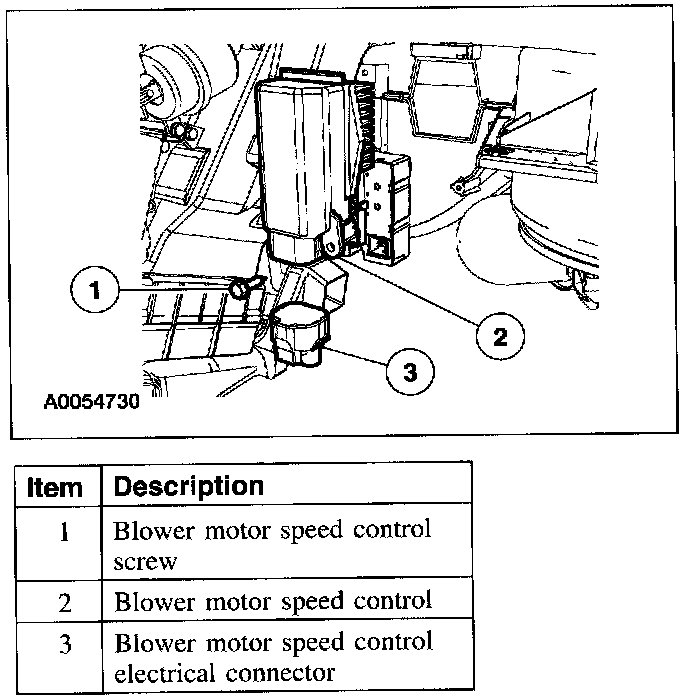

2. Remove the components in the order indicated in the illustration and table.
INSTALLATION
1. To install, reverse the removal procedure.
