Home >> Lincoln >> 2003 >> Aviator 2WD V8-4.6L DOHC >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Module HVAC >> Locations

Control Module HVAC: Locations

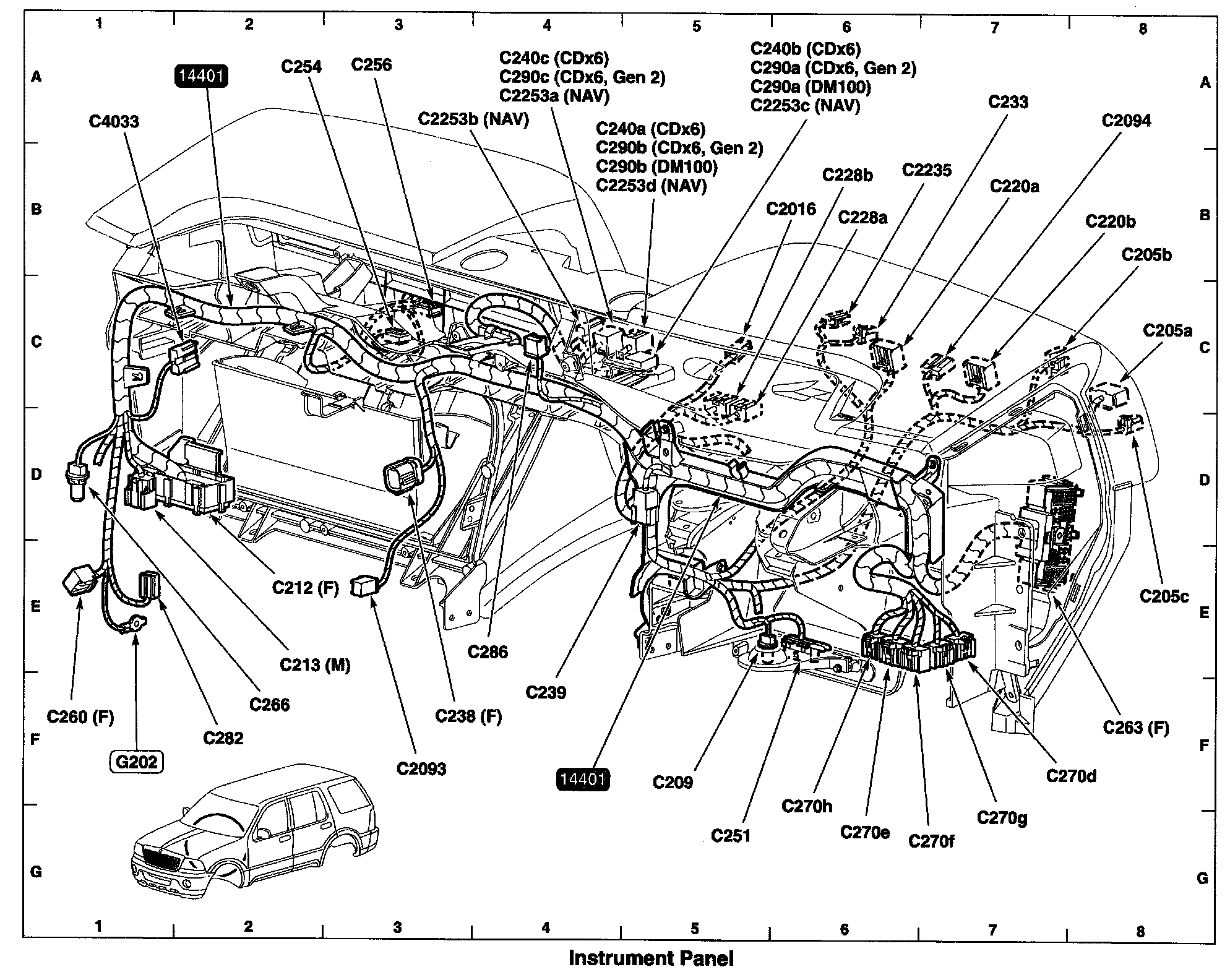

View 151-11:

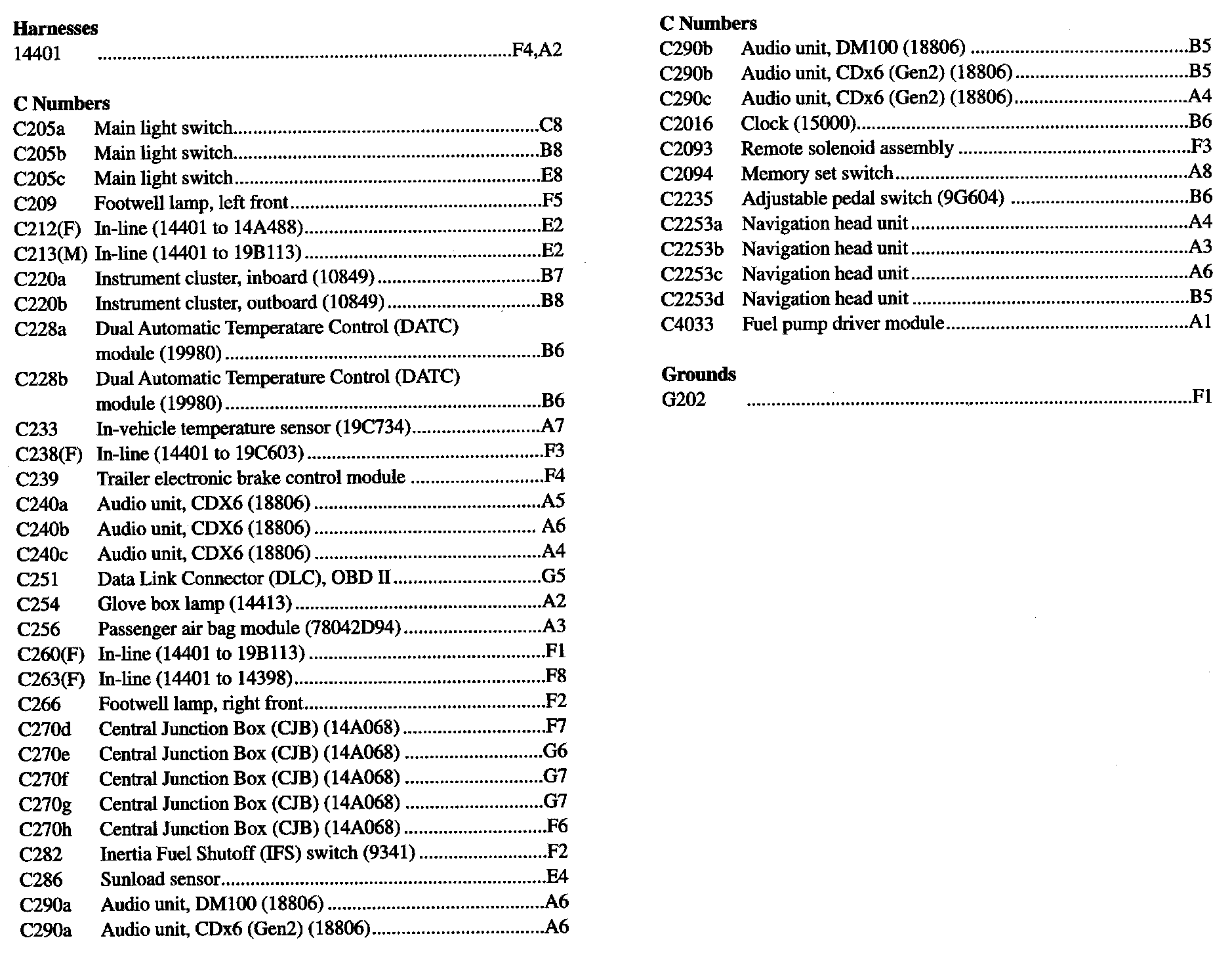

View 151-11 (Legend):
