Home >> Lincoln >> 2003 >> Aviator 2WD V8-4.6L DOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle

Automatic Transmission/Transaxle

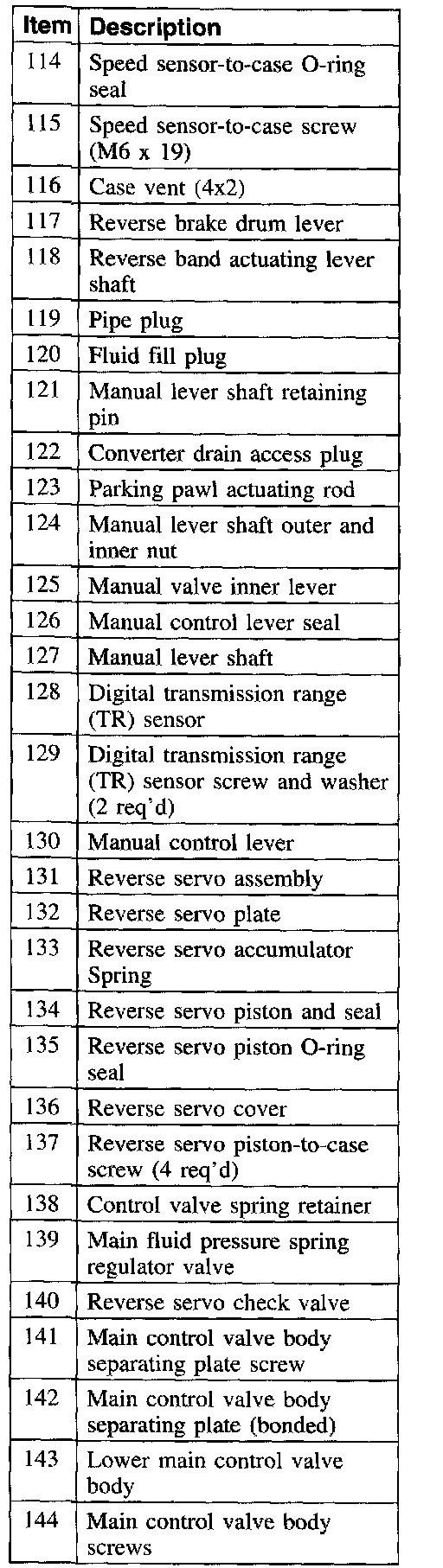

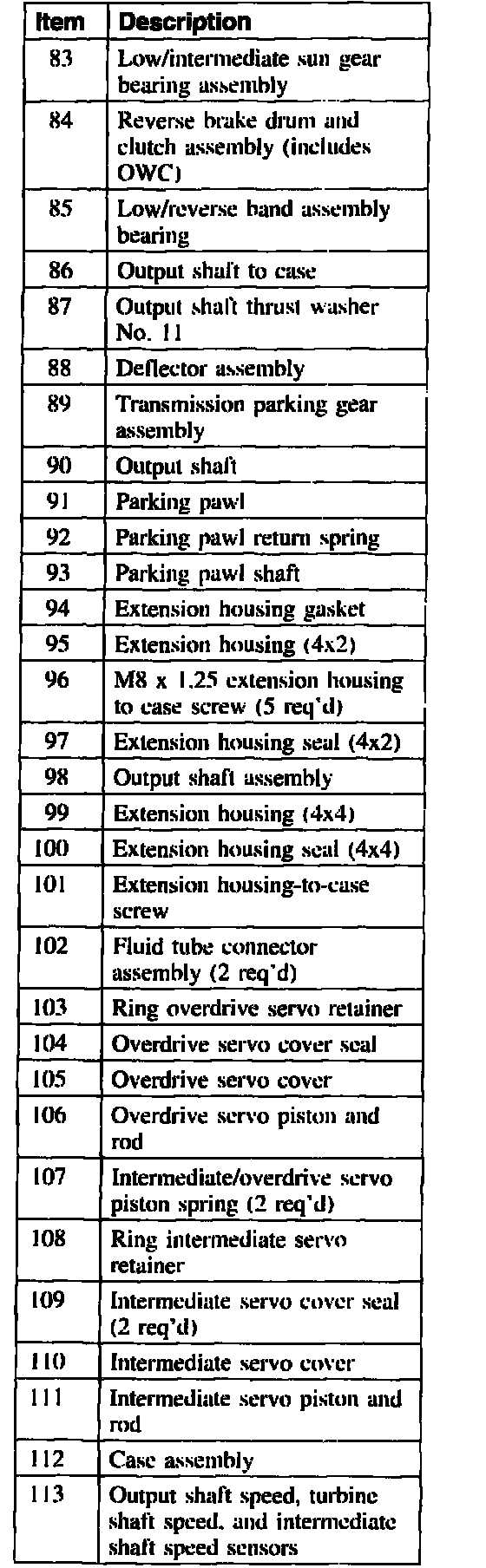

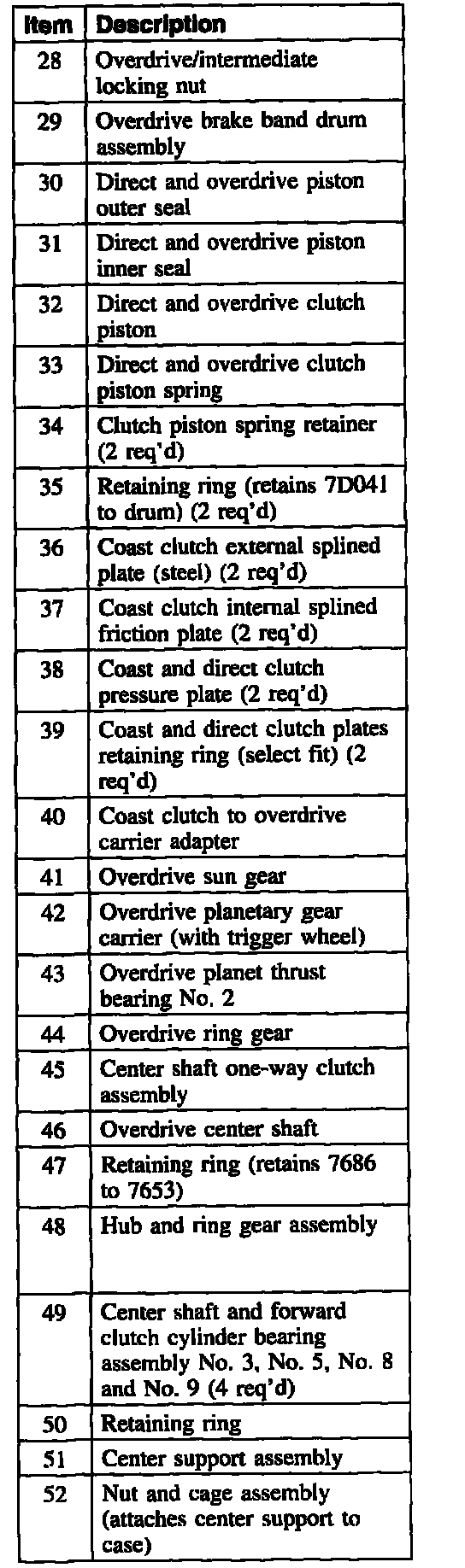

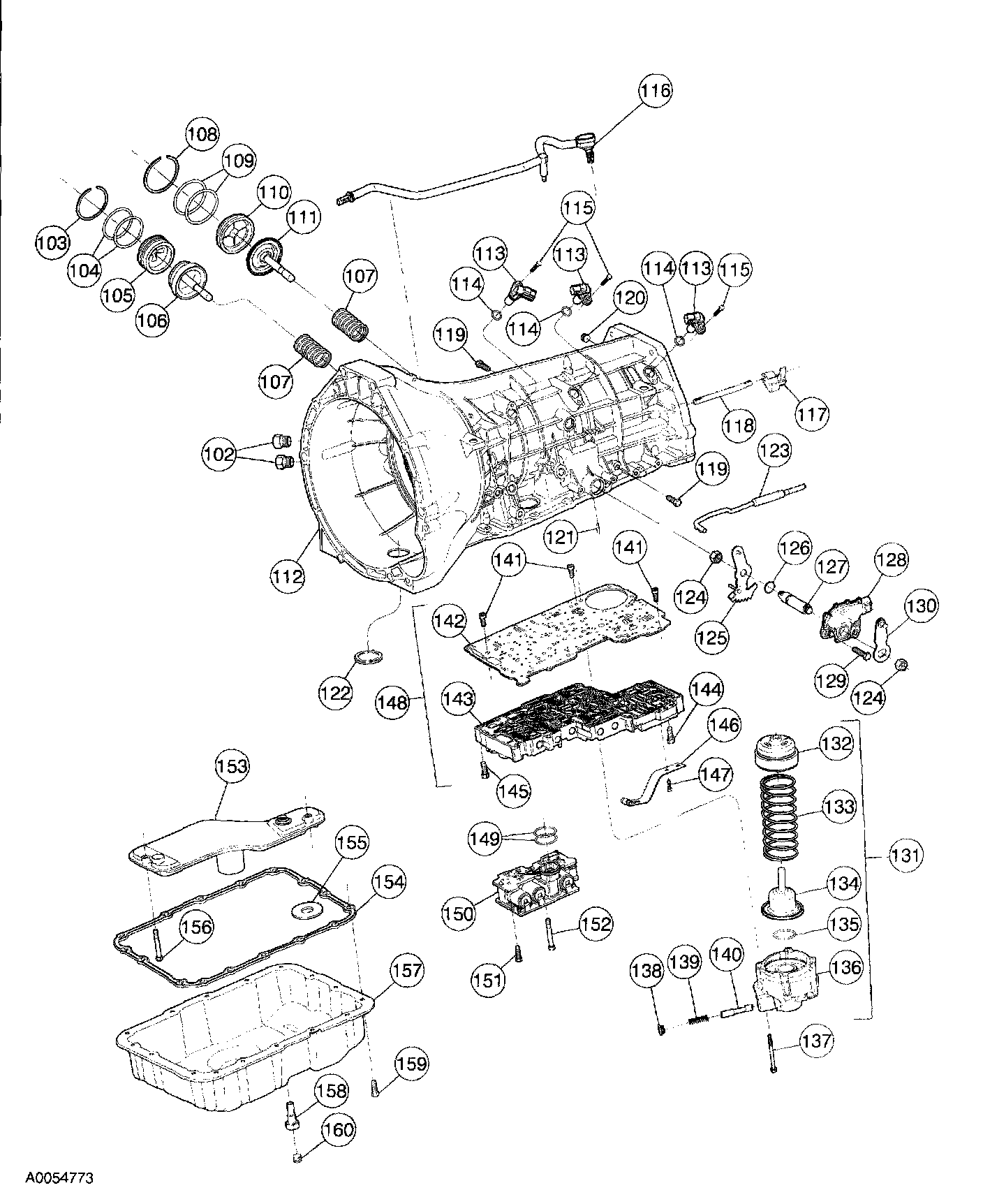

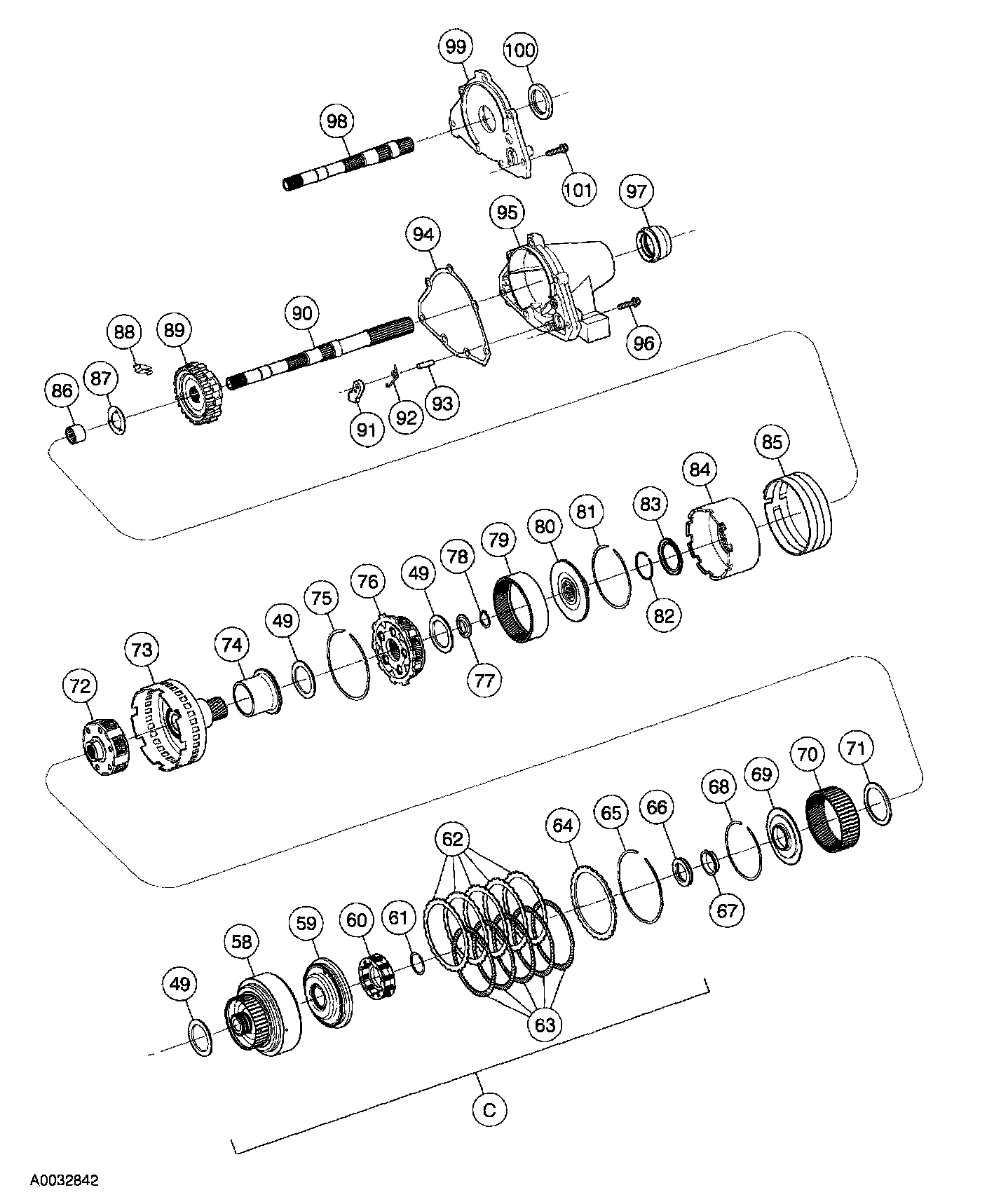

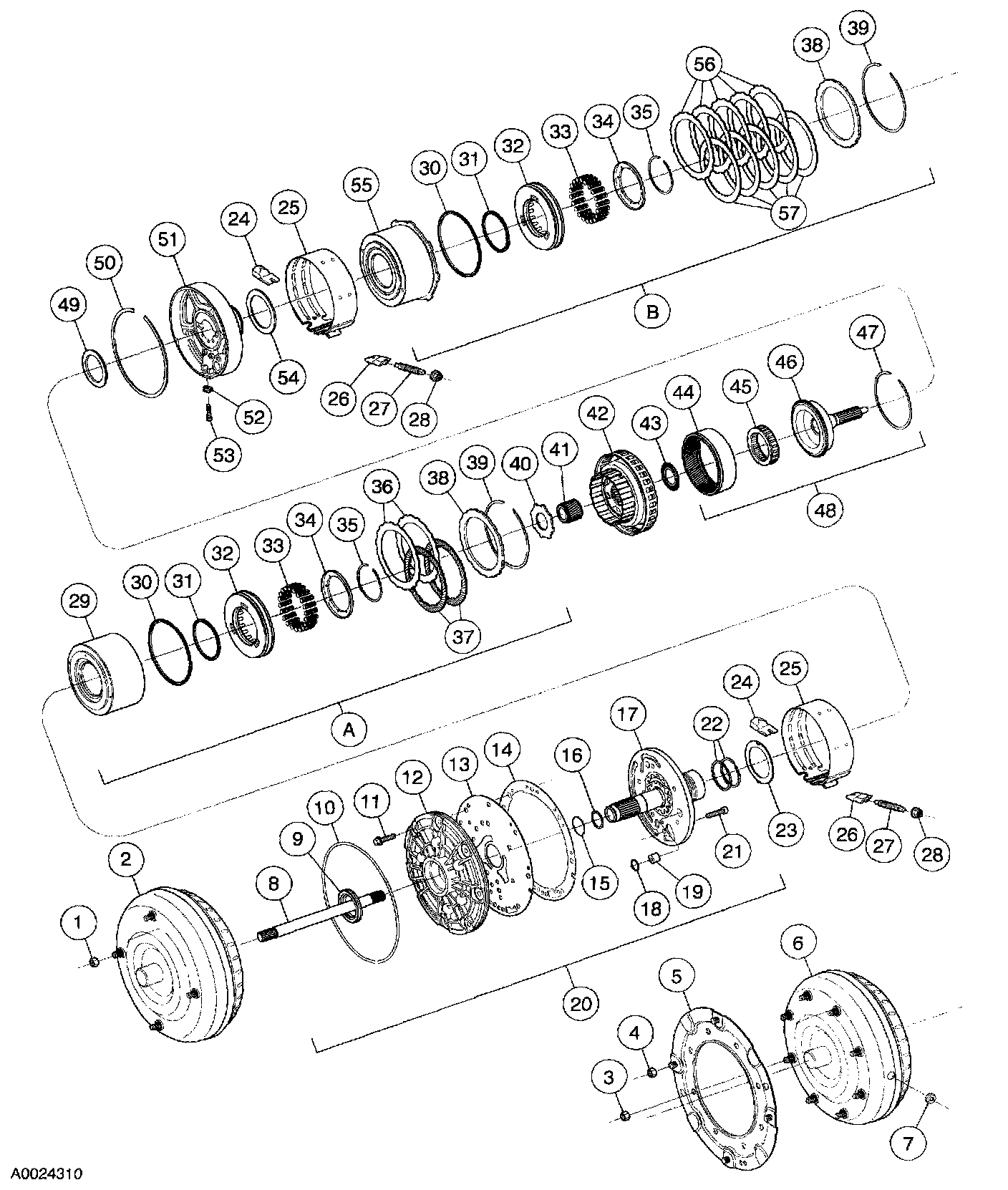

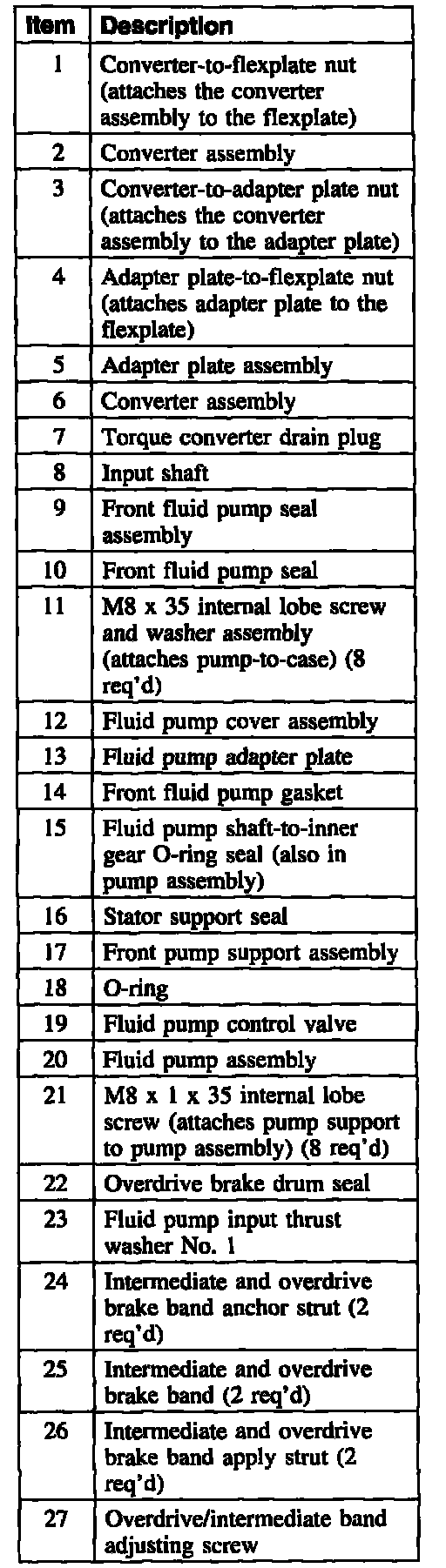

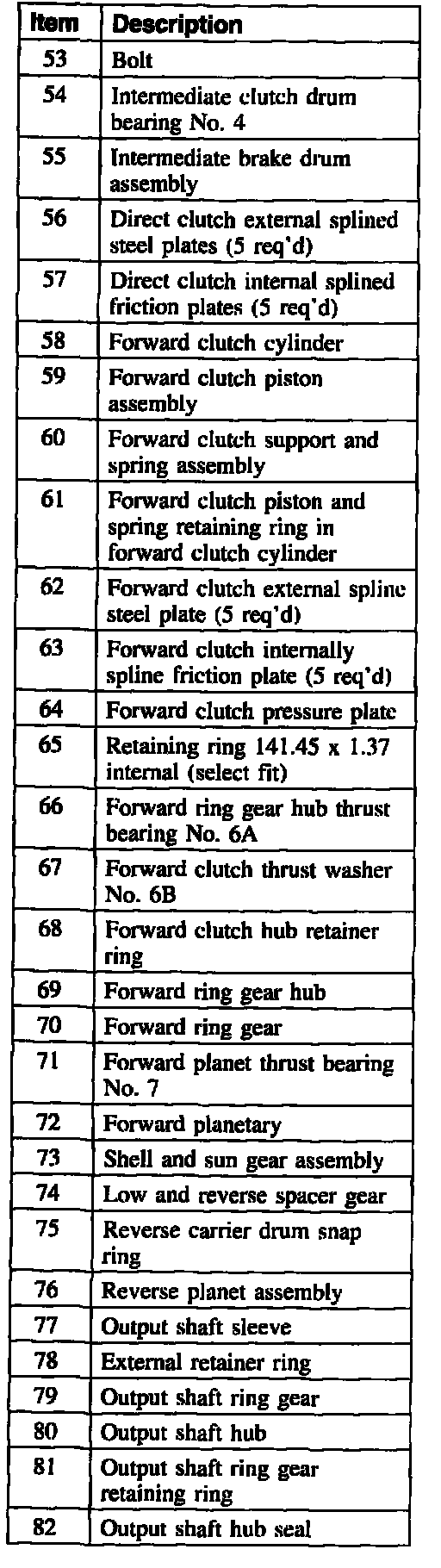

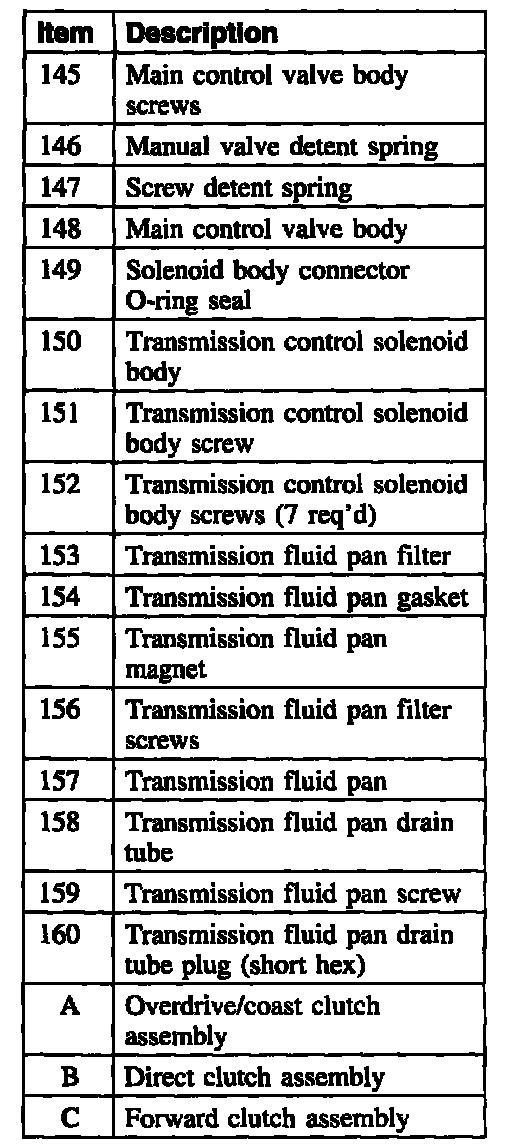

Disassembled Views

Part 1 Of 9:




Part 2 Of 9:




Part 3 Of 9:




Part 4 Of 9:




Part 5 Of 9:




Part 6 Of 9:




Part 7 Of 9:




Part 8 Of 9:




Part 9 Of 9:
