Powertrain Control Module (PCM)

Powertrain Control Module (PCM)

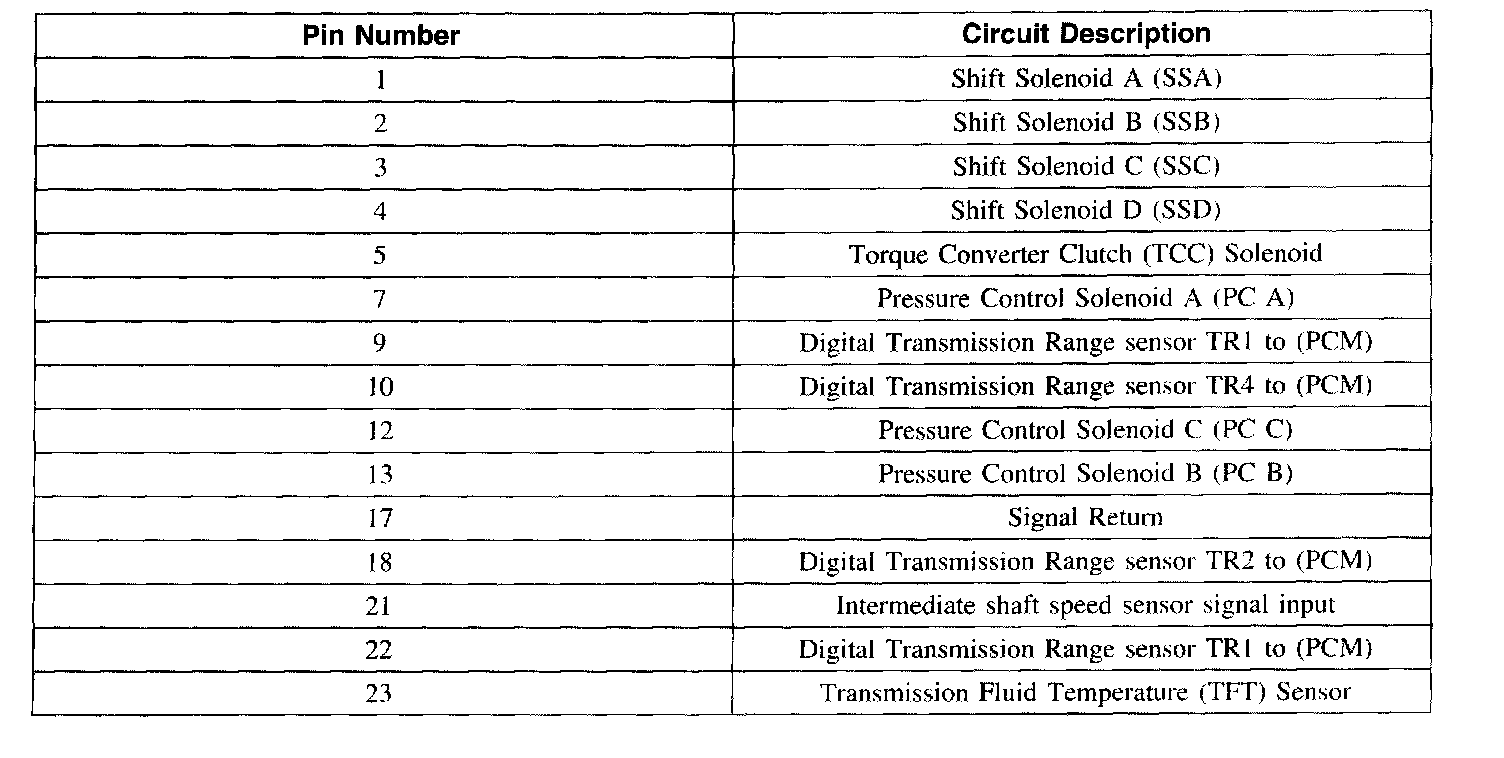

Part 1 Of 3:




Part 2 Of 3:




Part 3 Of 3:
