Home >> Lincoln >> 2003 >> Aviator 2WD V8-4.6L DOHC >> Repair and Diagnosis >> Diagrams >> Components >> Component Location Views >> View 151-71

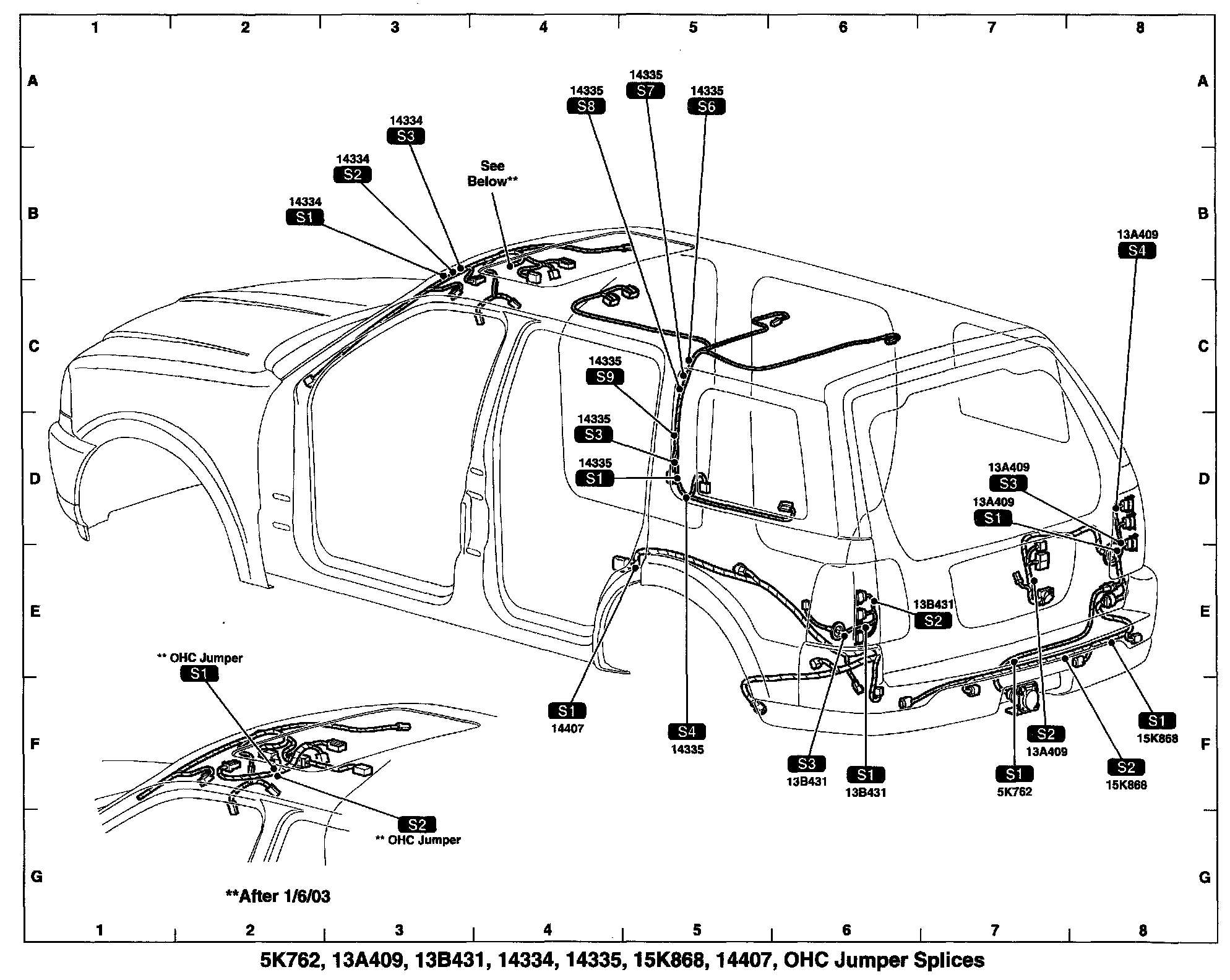

View 151-71

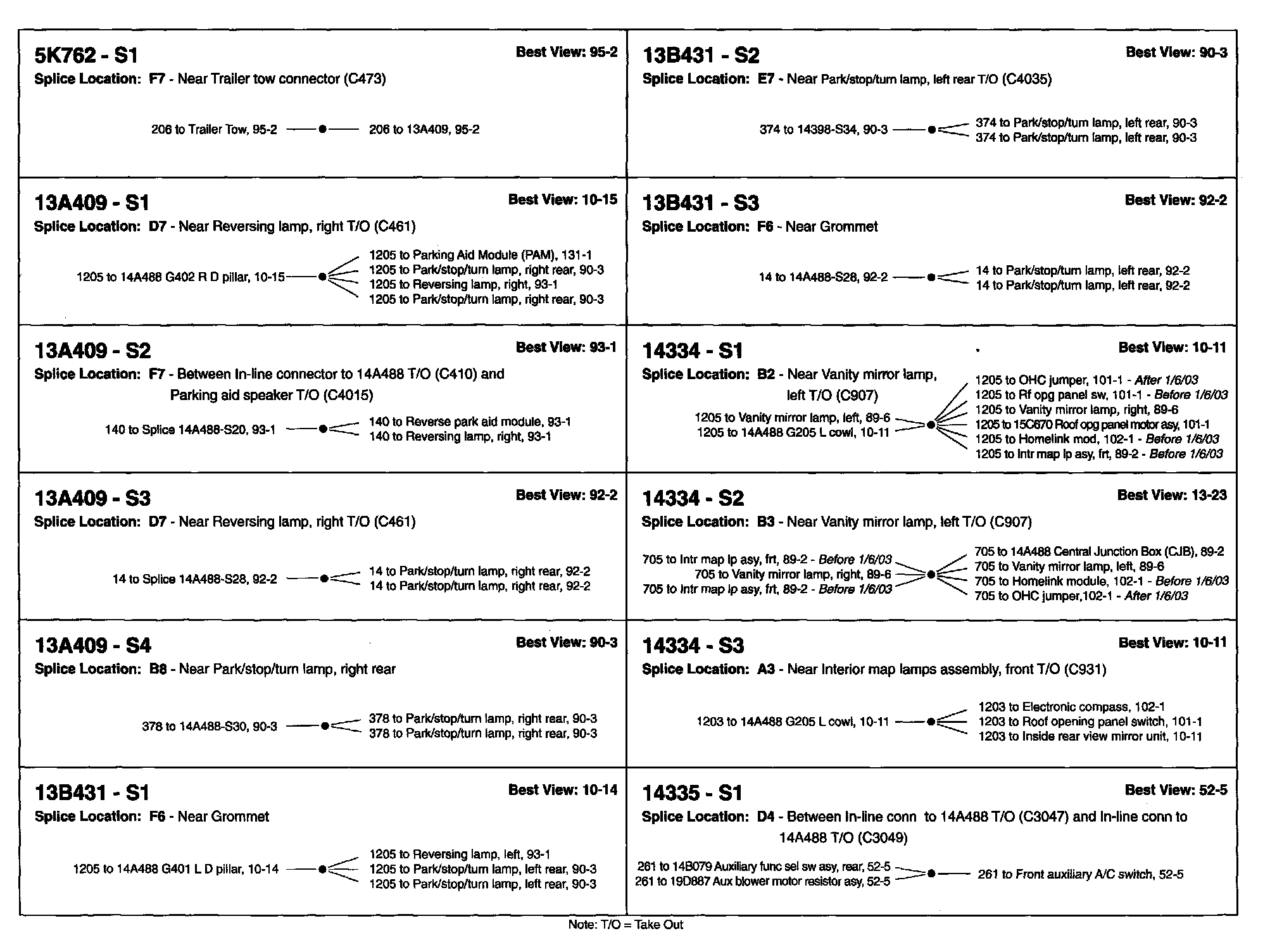

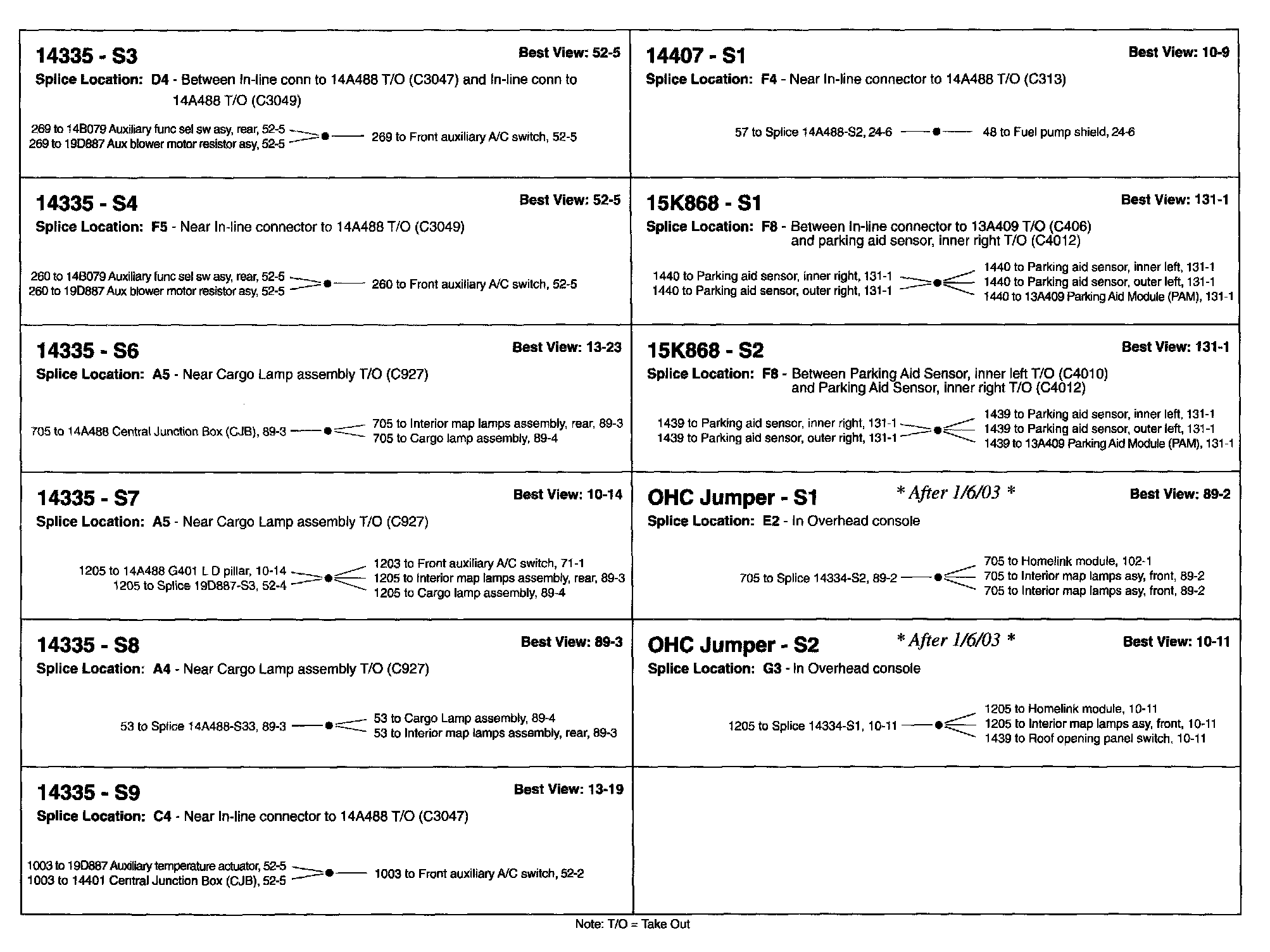

View 151-71:



View 151-71 (Legend):



View 151-71 (Legend):
