Intake Manifold-Lower: Installation

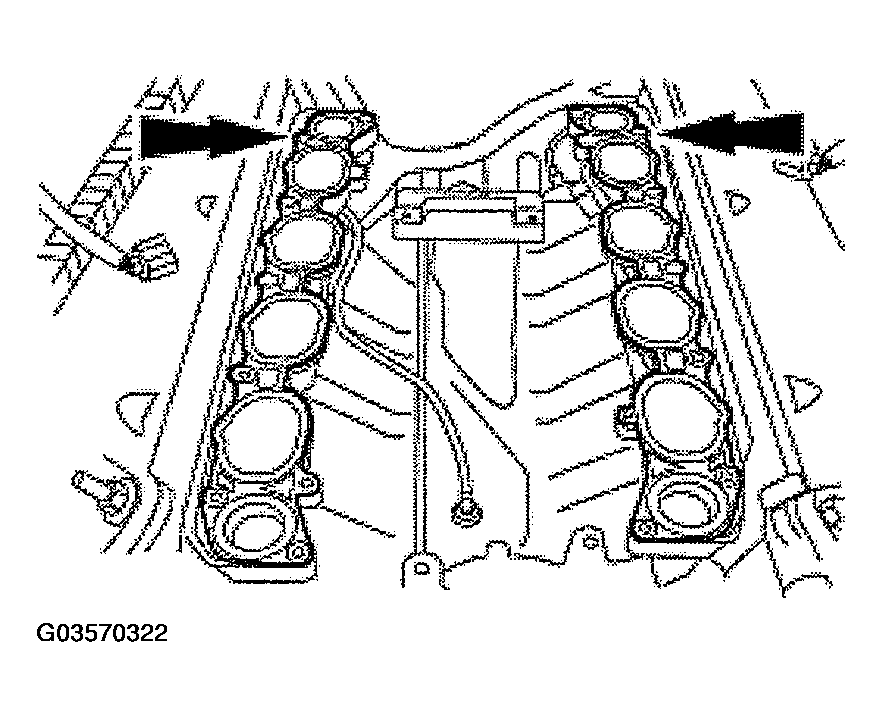

Install the lower intake gaskets.

Fig 1: Installing Lower Intake Gaskets
Courtesy of FORD MOTOR CO.

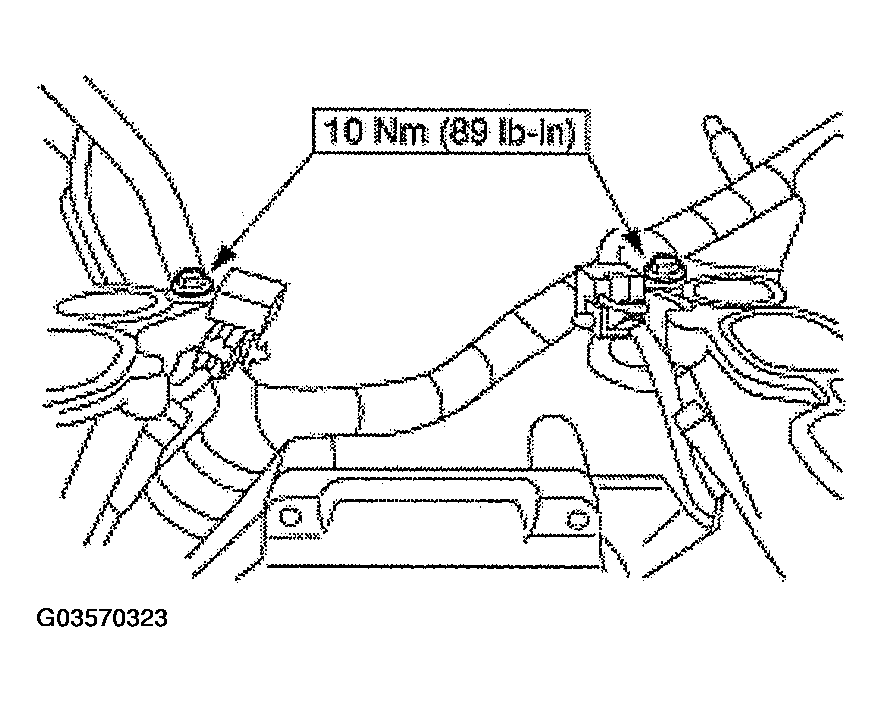

Install the radio ignition interference capacitors.

Fig 2: Installing Radio Ignition Interference Capacitors
Courtesy of FORD MOTOR CO.

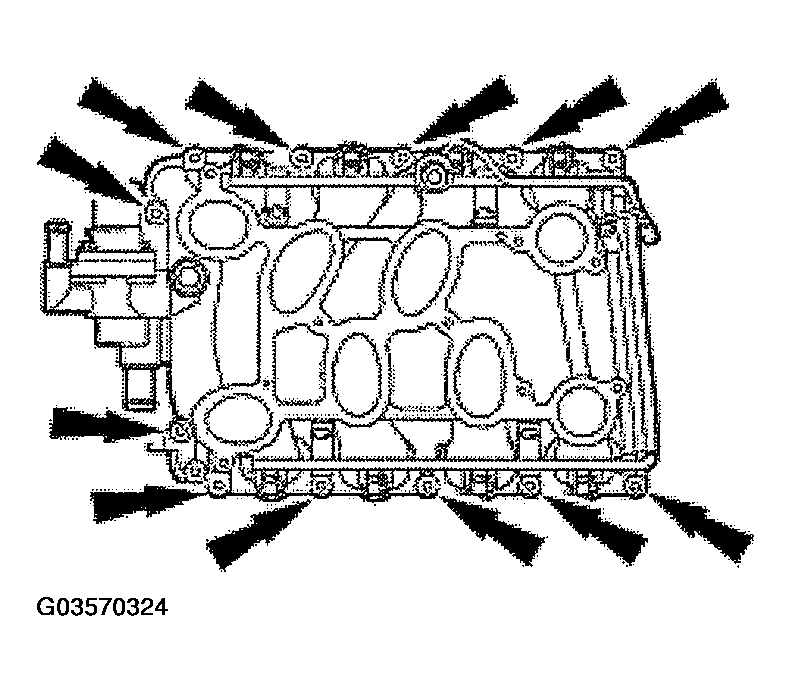

Position the lower intake manifold. Loosely install the retaining bolts.

Fig 3: Installing Lower Intake Manifold
Courtesy of FORD MOTOR CO.

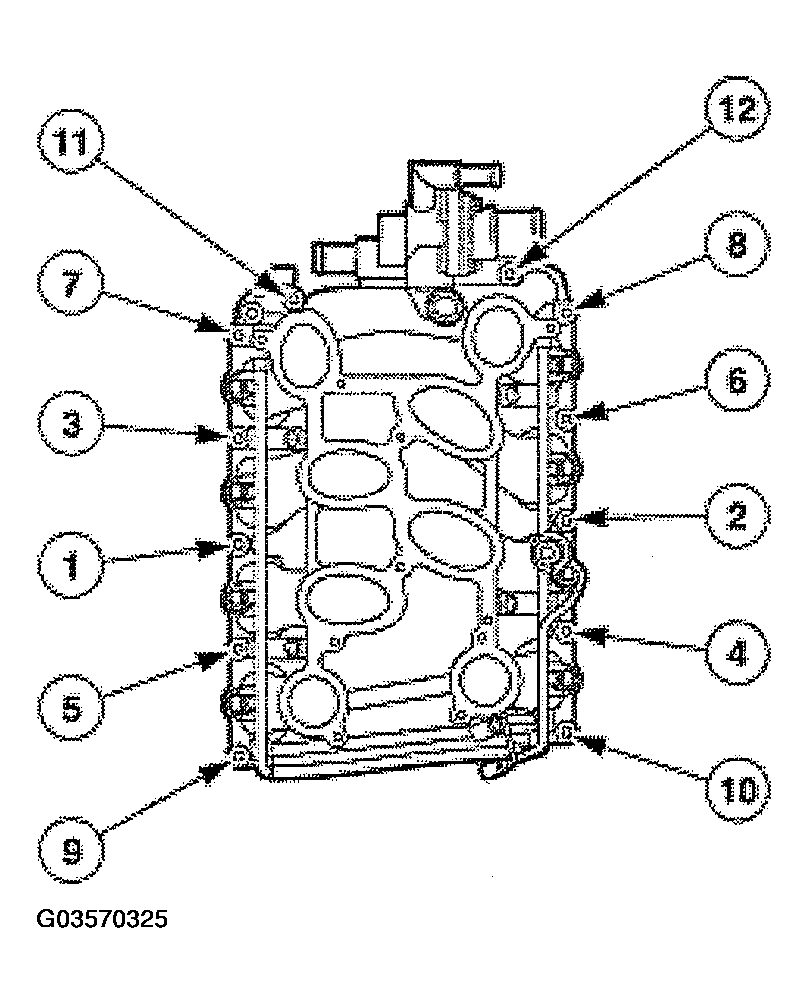

Tighten the retaining bolts to 10 N.m (89 lb-in) and then an additional 90 degrees in the sequence shown.

Fig 4: Tightening Lower Intake Manifold Bolts
Courtesy of FORD MOTOR CO.

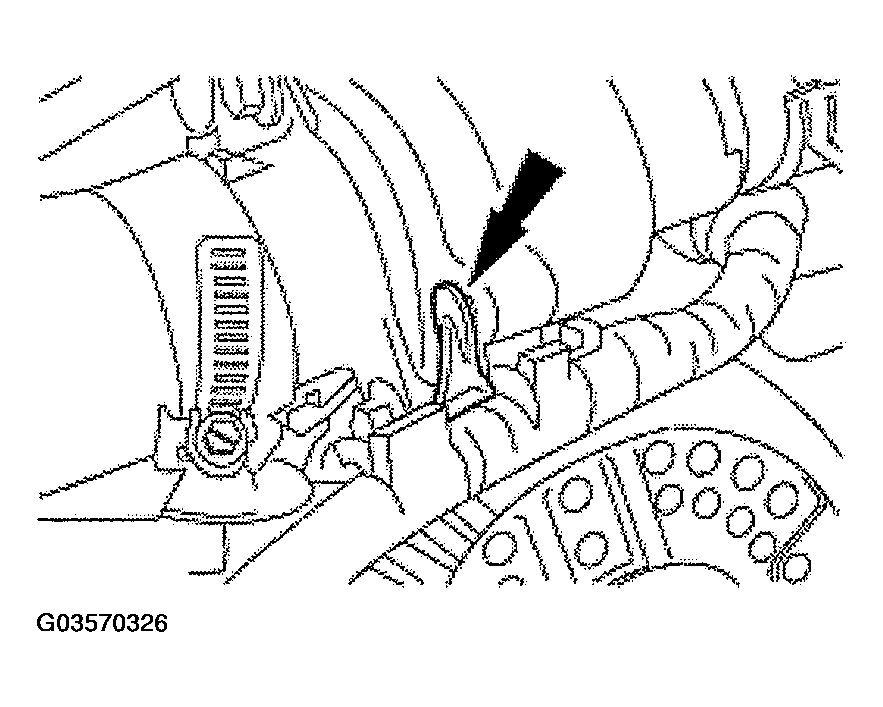

Connect the wire harness pin-type retainer.

Fig 5: Connecting Wire Harness Pin-Type Retainer
Courtesy of FORD MOTOR CO.

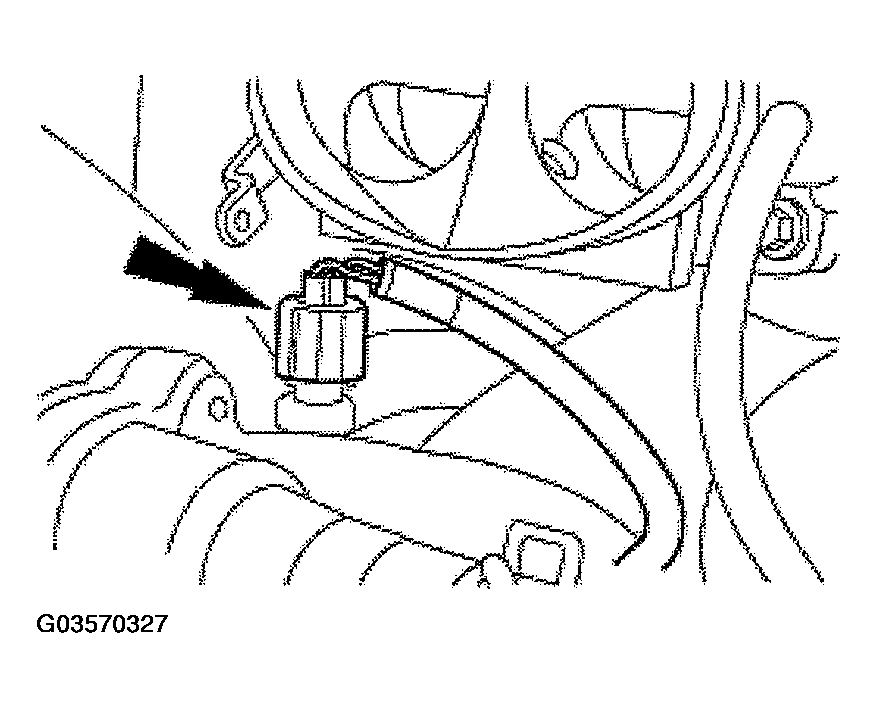

Connect the water temperature indicator sensor.

Fig 6: Connecting Water Temperature Indicator Sensor
Courtesy of FORD MOTOR CO.

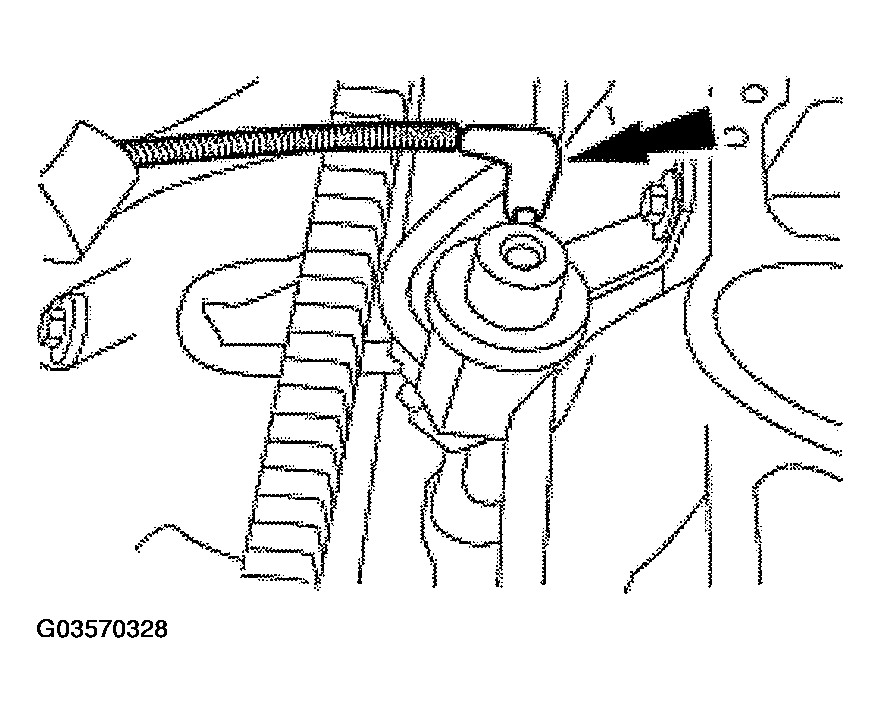

Position the vacuum harness and connect the vacuum line to the fuel injector pressure regulator.

Fig 7: Connecting Vacuum Line To Fuel Injector Pressure Regulator
Courtesy of FORD MOTOR CO.

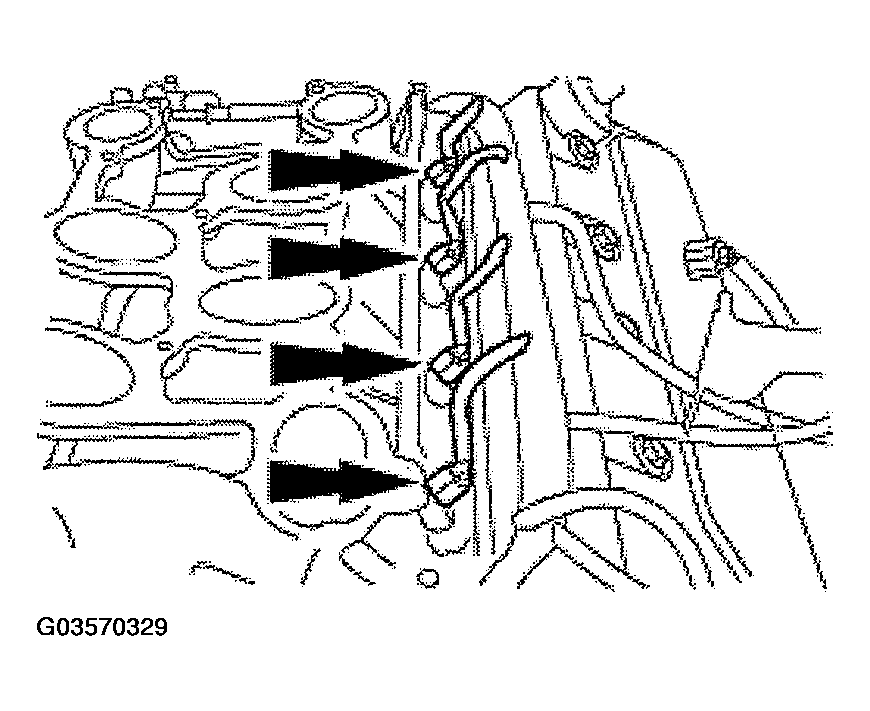

Connect the eight fuel injectors.

Fig 8: Connecting Eight Fuel Injectors
Courtesy of FORD MOTOR CO.

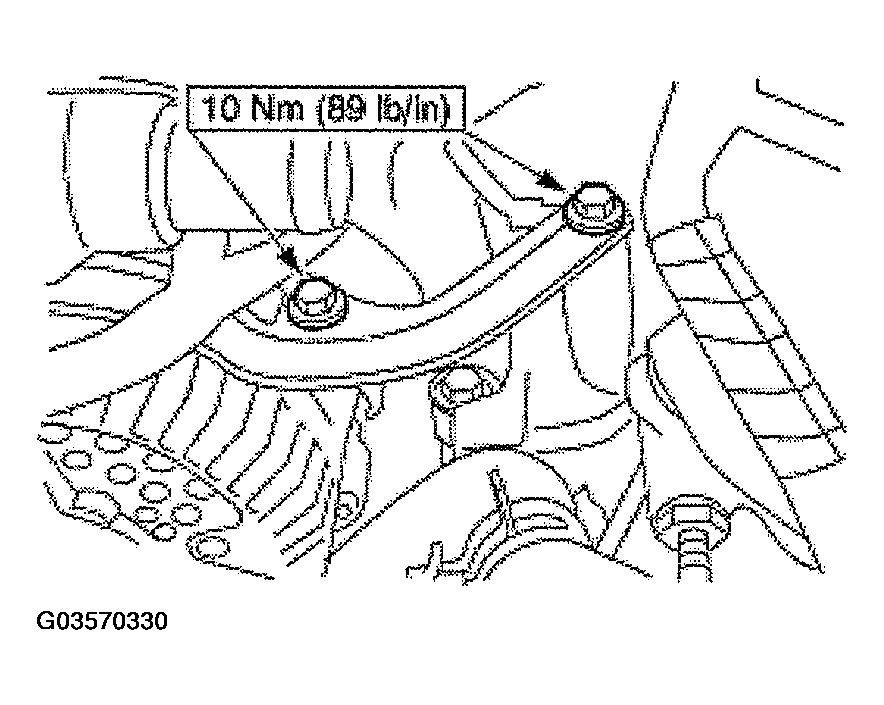

Install the upper generator support bracket and the four bolts.

Fig 9: Installing Upper Generator Support Bracket Bolts
Courtesy of FORD MOTOR CO.

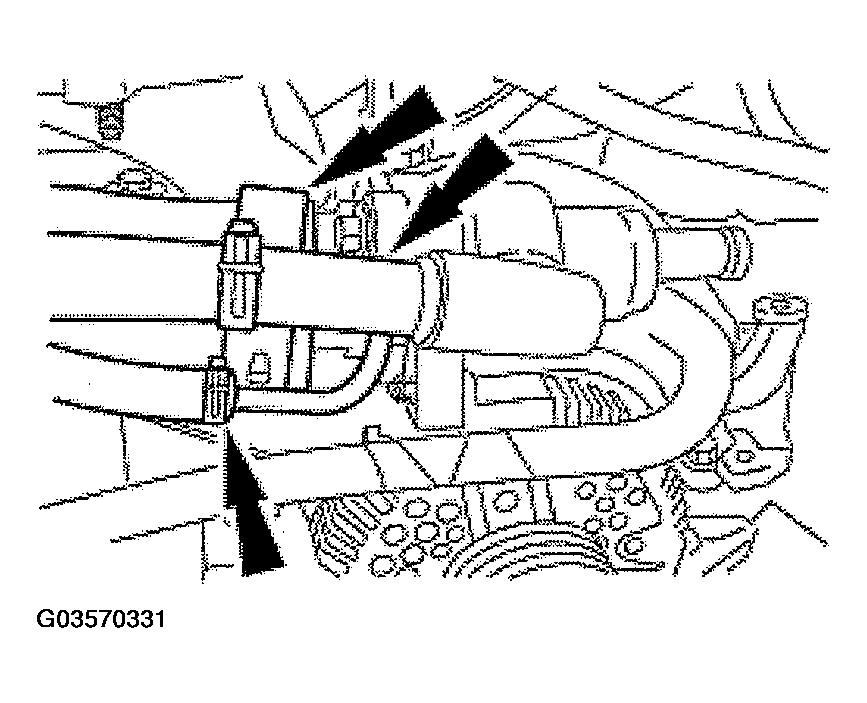

Connect the heater water inlet hose, the upper radiator hose and the water heated fitting inlet hose.

Fig 10: Connecting Heater Water Inlet Hose, Upper Radiator Hose And Water Heated Fitting Inlet Hose
Courtesy of FORD MOTOR CO.

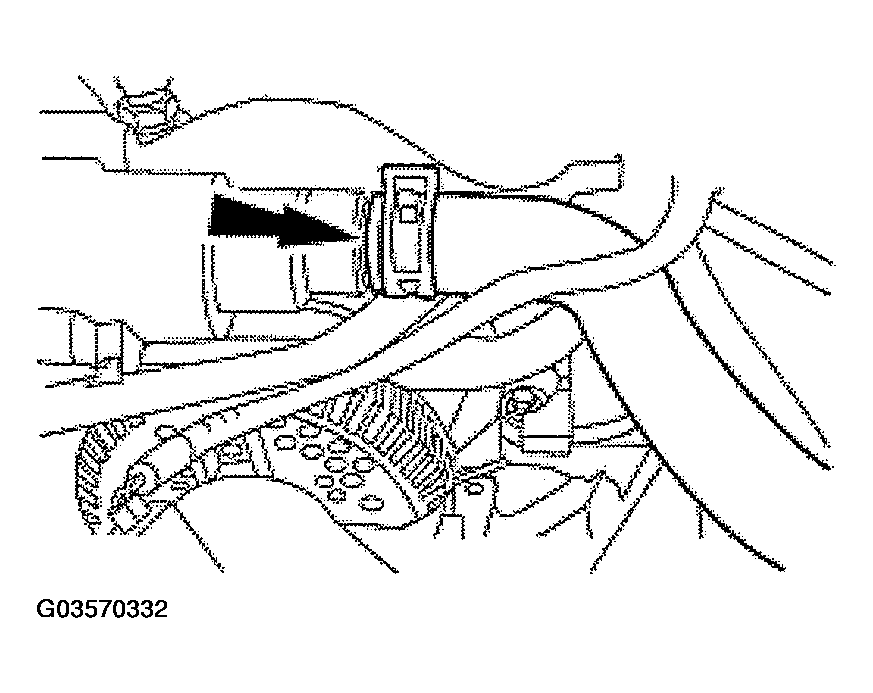

Connect the engine water bypass return hose.

Fig 11: Connecting Engine Water Bypass Return Hose
Courtesy of FORD MOTOR CO.
Connect the fuel lines. For additional information, refer to REMOVAL, OVERHAUL & INSTALLATION - BLACKWOOD, EXPEDITION, F150 PICKUP & NAVIGATOR - GASOLINE .
Install the upper intake manifold. For additional information, refer to INTAKE MANIFOLD-UPPER
