Lincoln
>>
2002
>>
LS V8-3.9L VIN A
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Global Positioning System Module
Global Positioning System Module

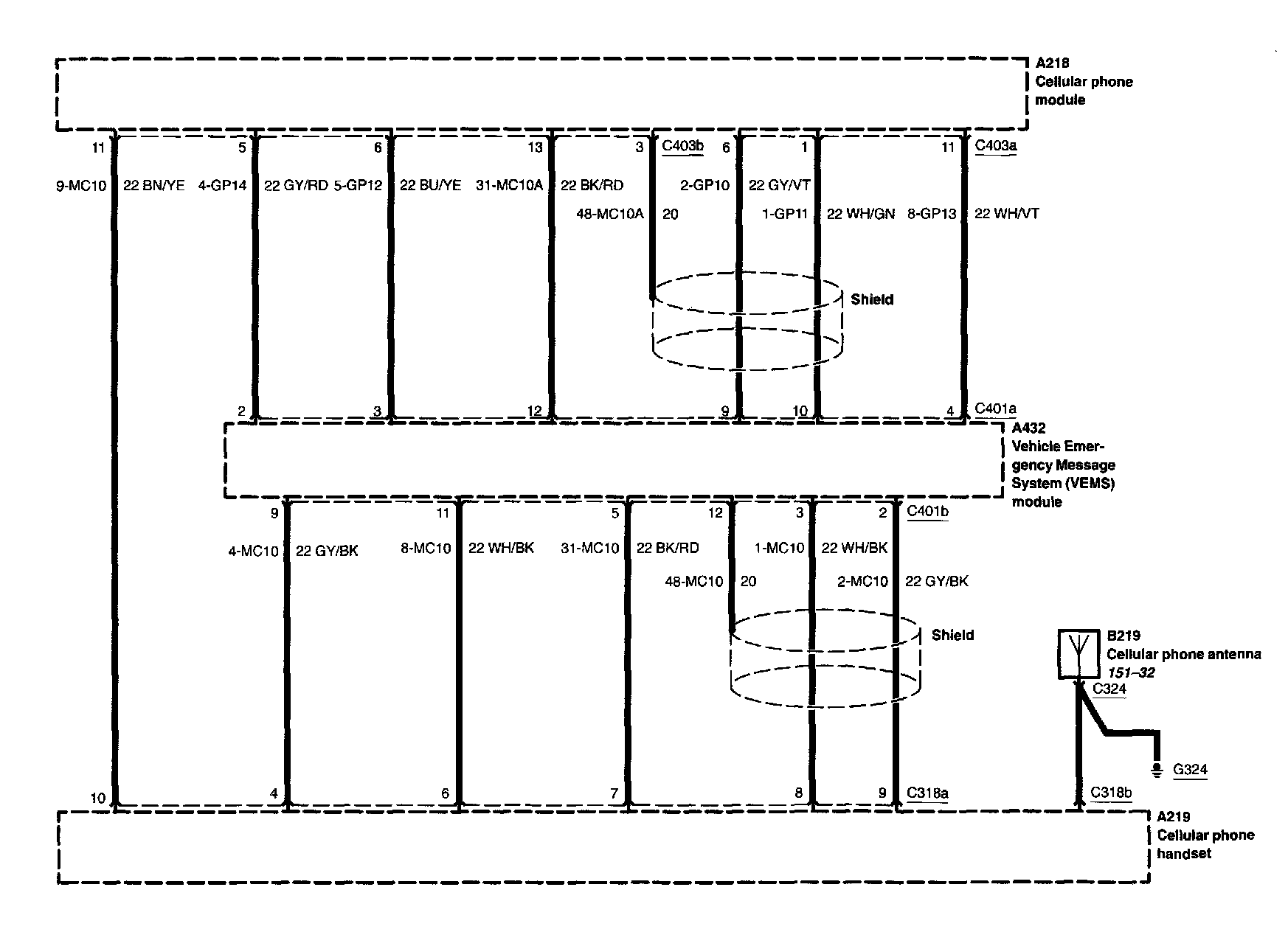

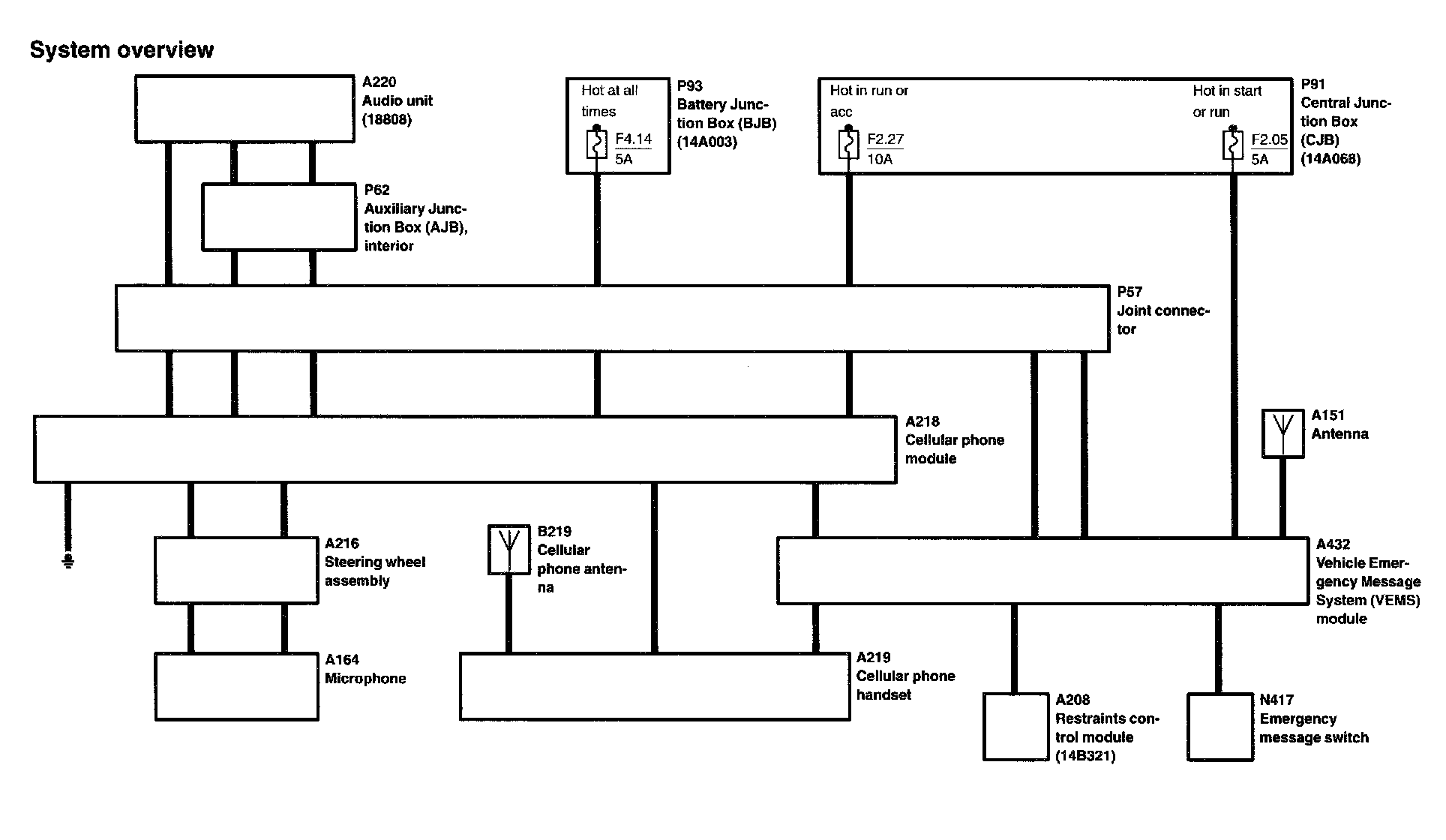

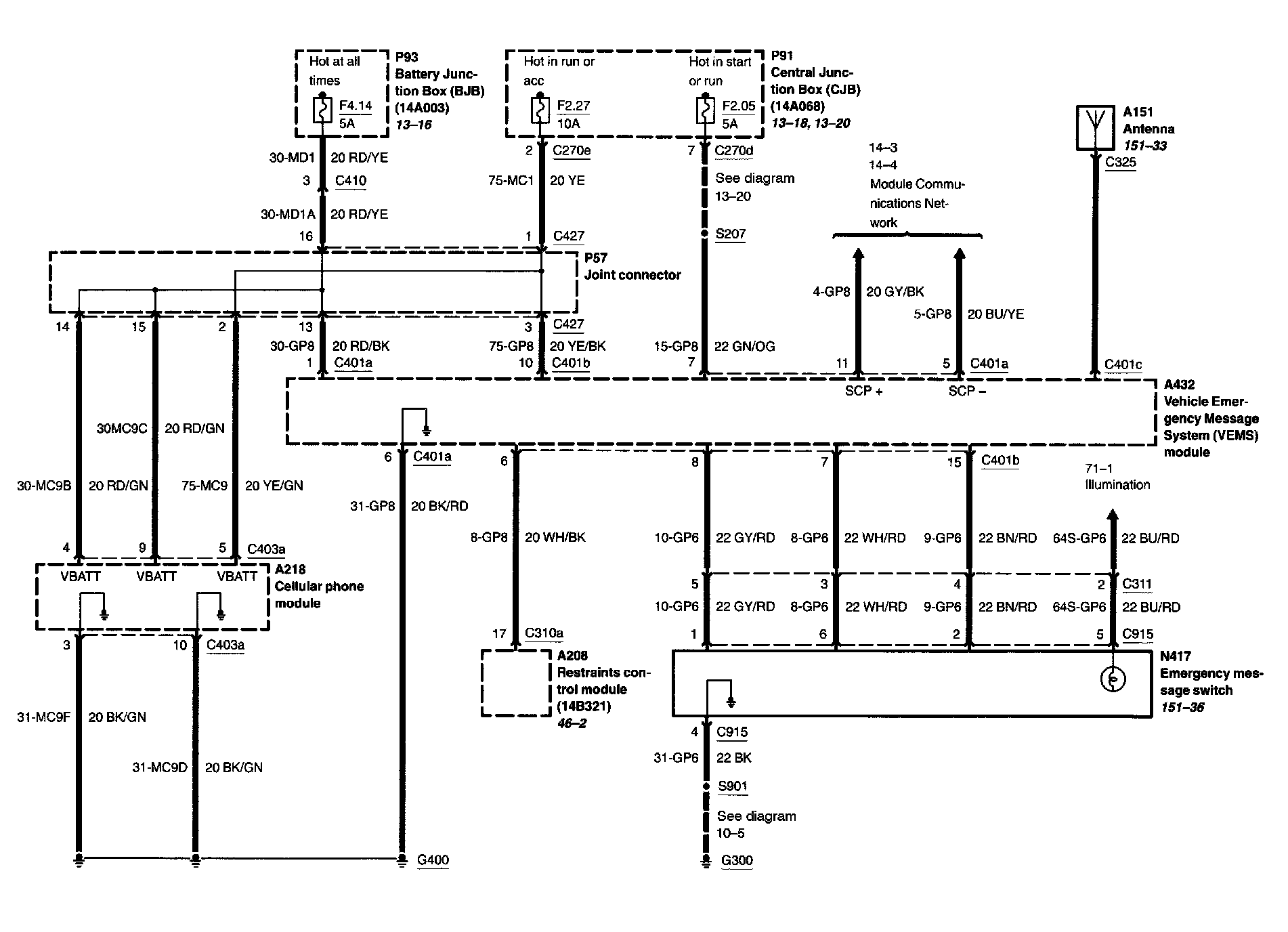

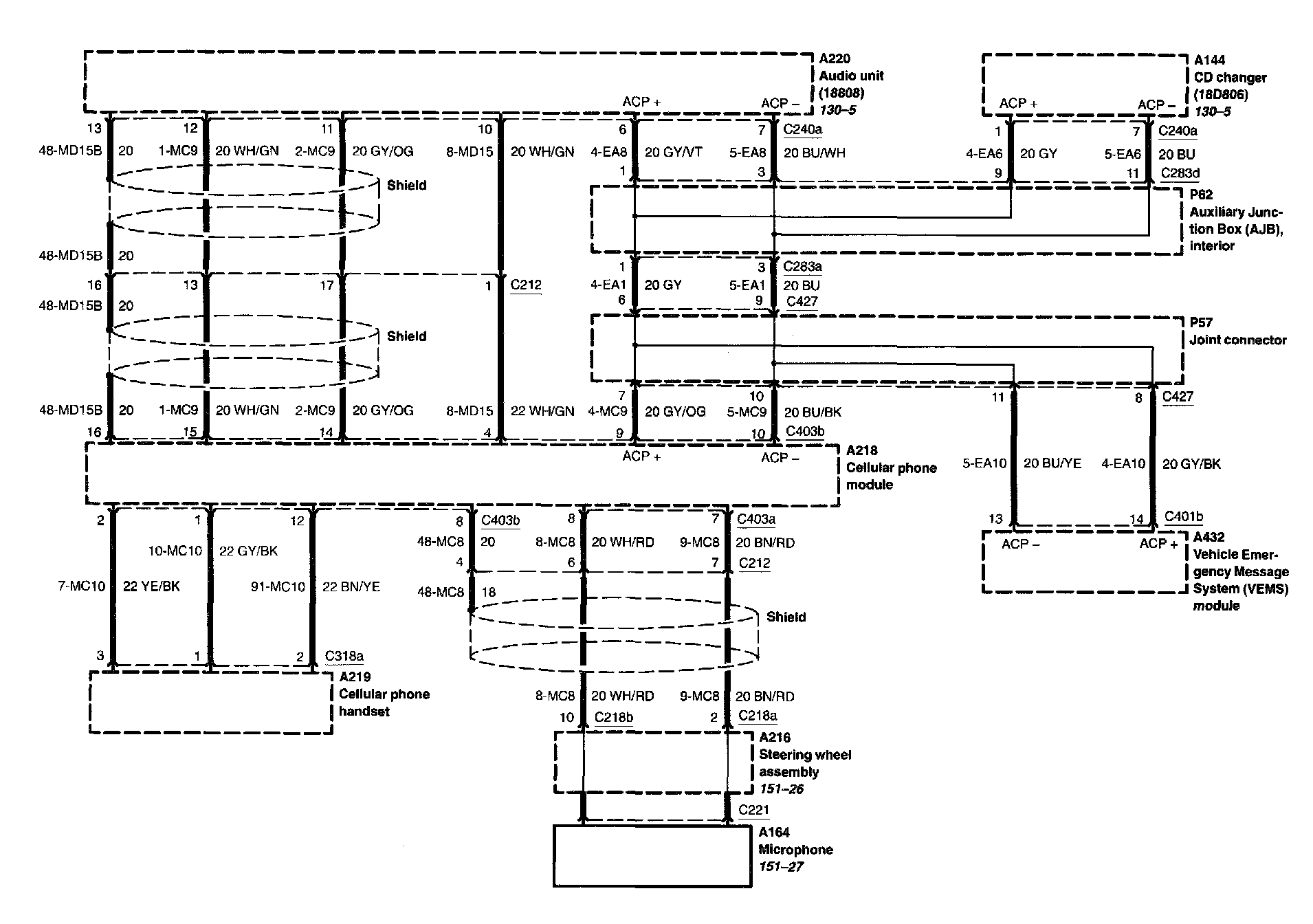

Diagram 136-1:
Diagram 136-2:
Diagram 136-3:
Diagram 136-4:
