Home >> Lincoln >> 2002 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Control Module >> Heated Seat Module, Passenger Side Front

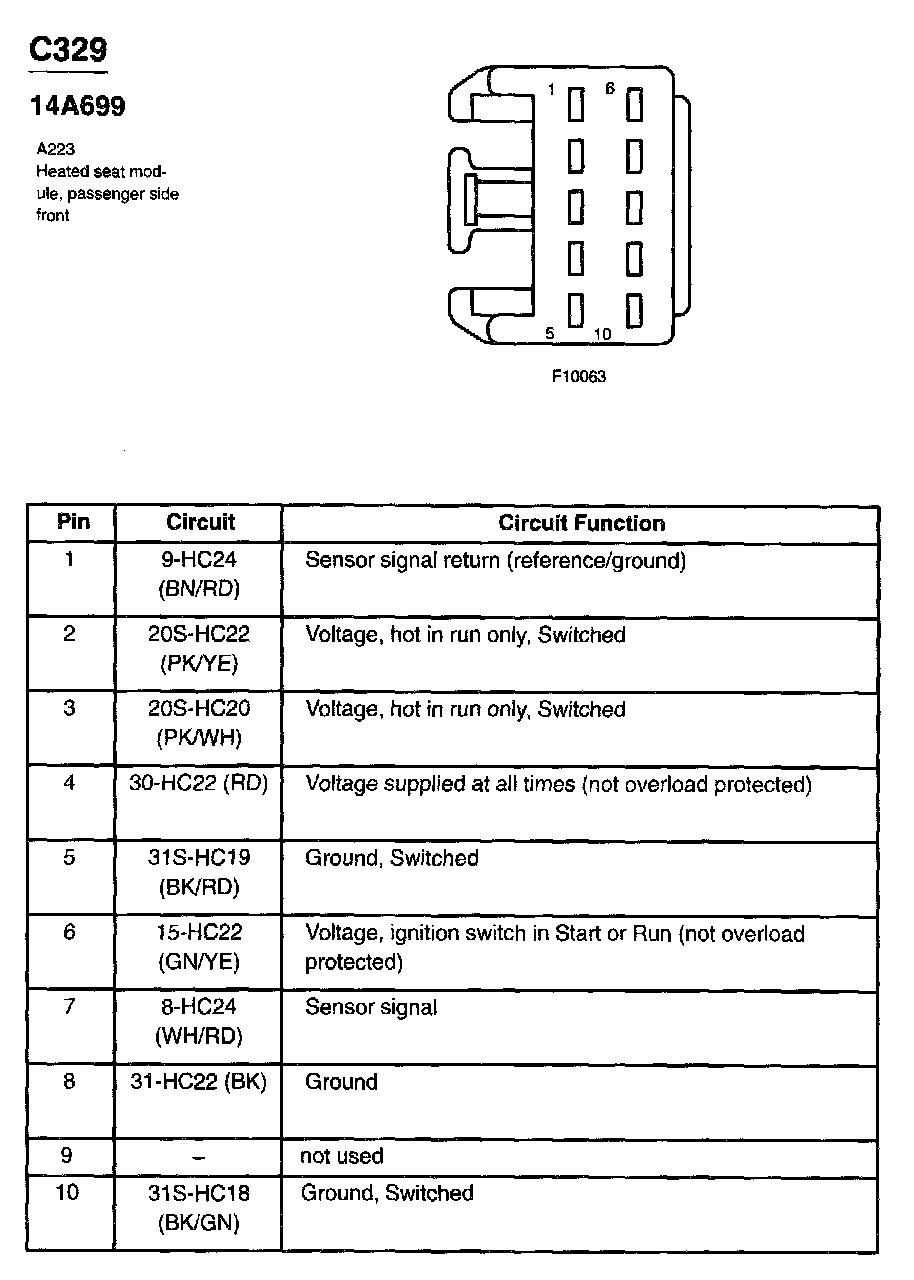

Heated Seat Module, Passenger Side Front
