Home >> Lincoln >> 2000 >> Town Car V8-4.6L VIN W >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power Door Lock Control Module

Power Door Lock Control Module

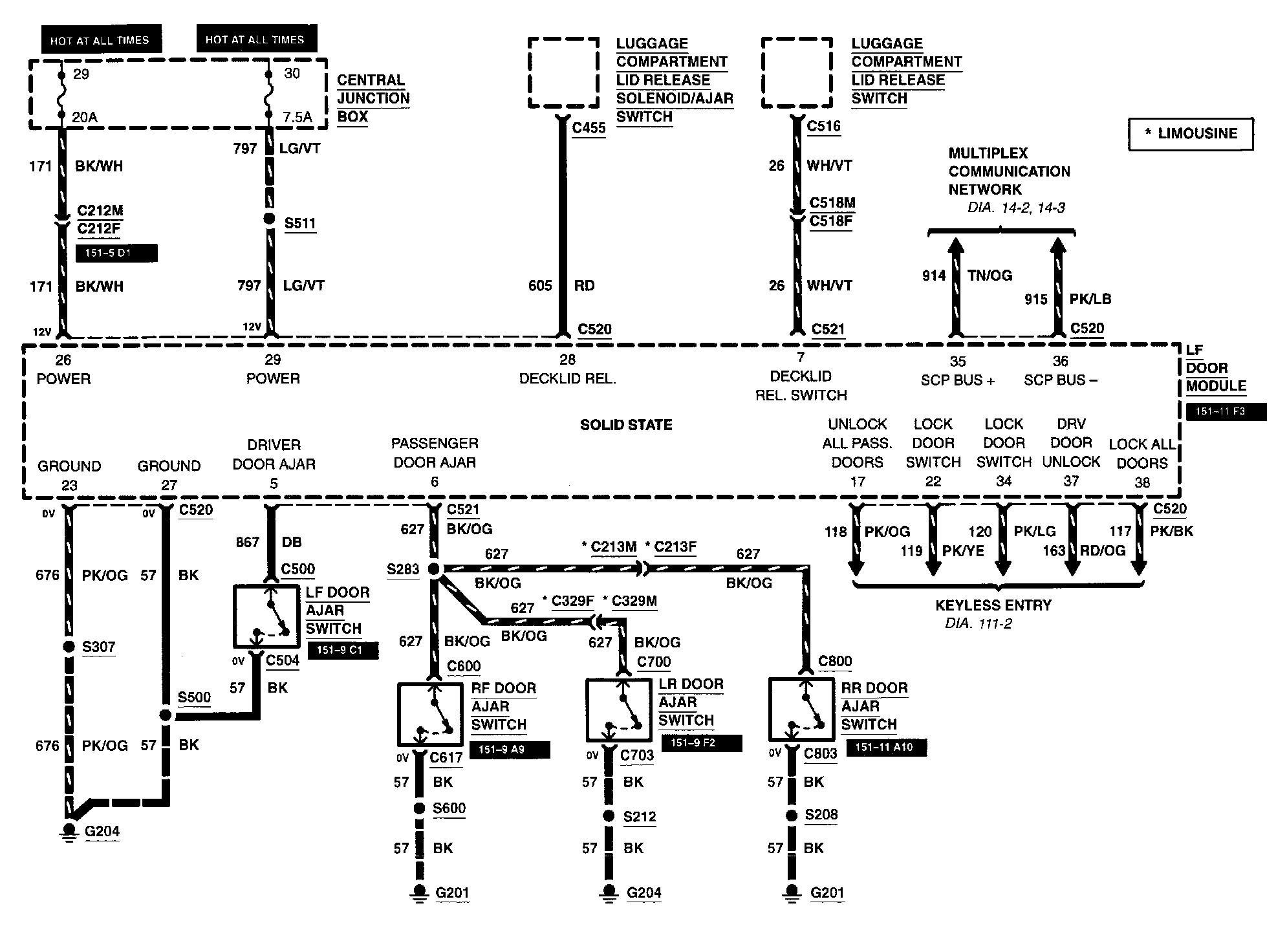

Diagrams 57-1:

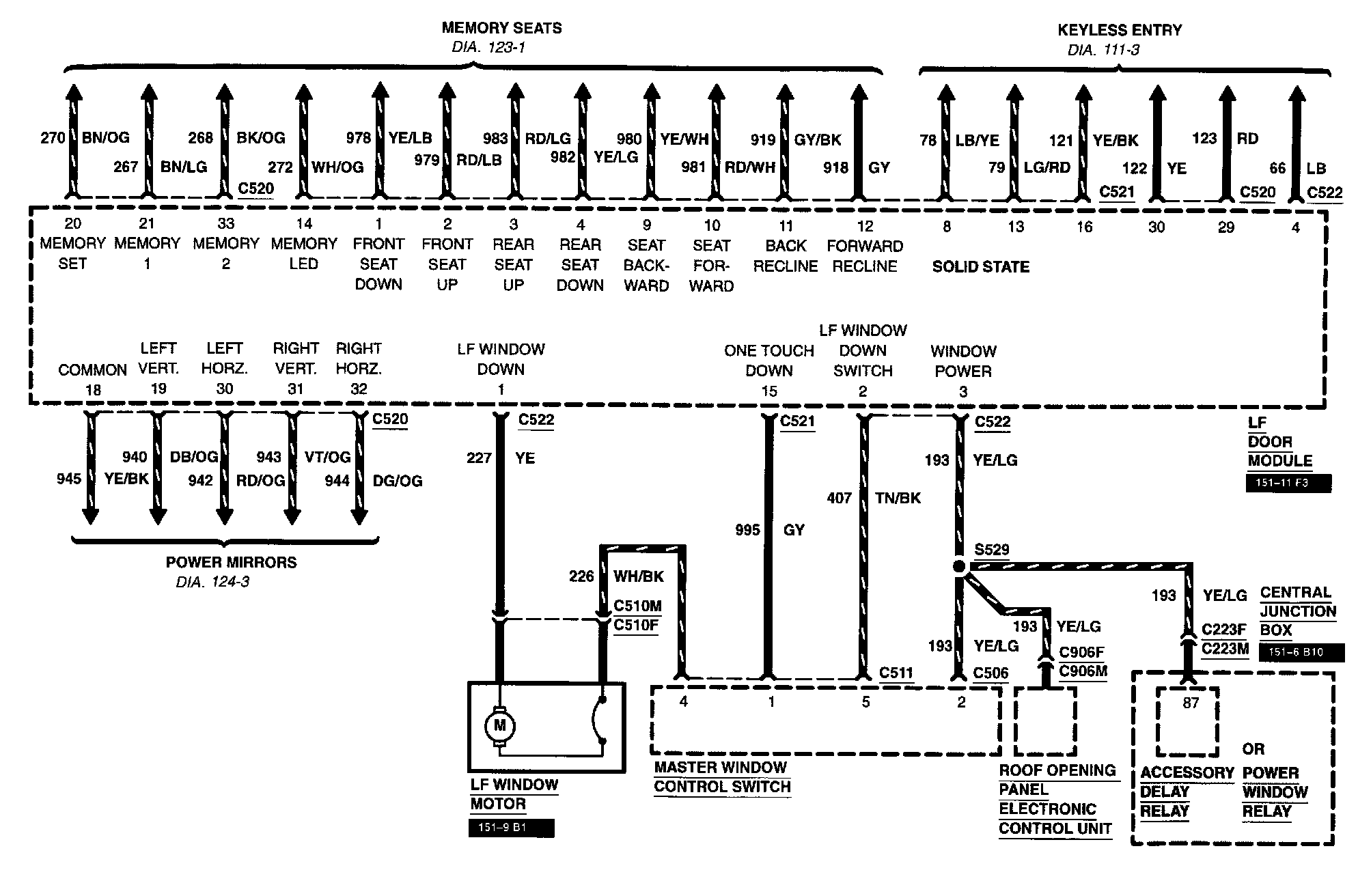

Diagrams 57-2:
