Home >> Lincoln >> 2000 >> Town Car V8-4.6L VIN W >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

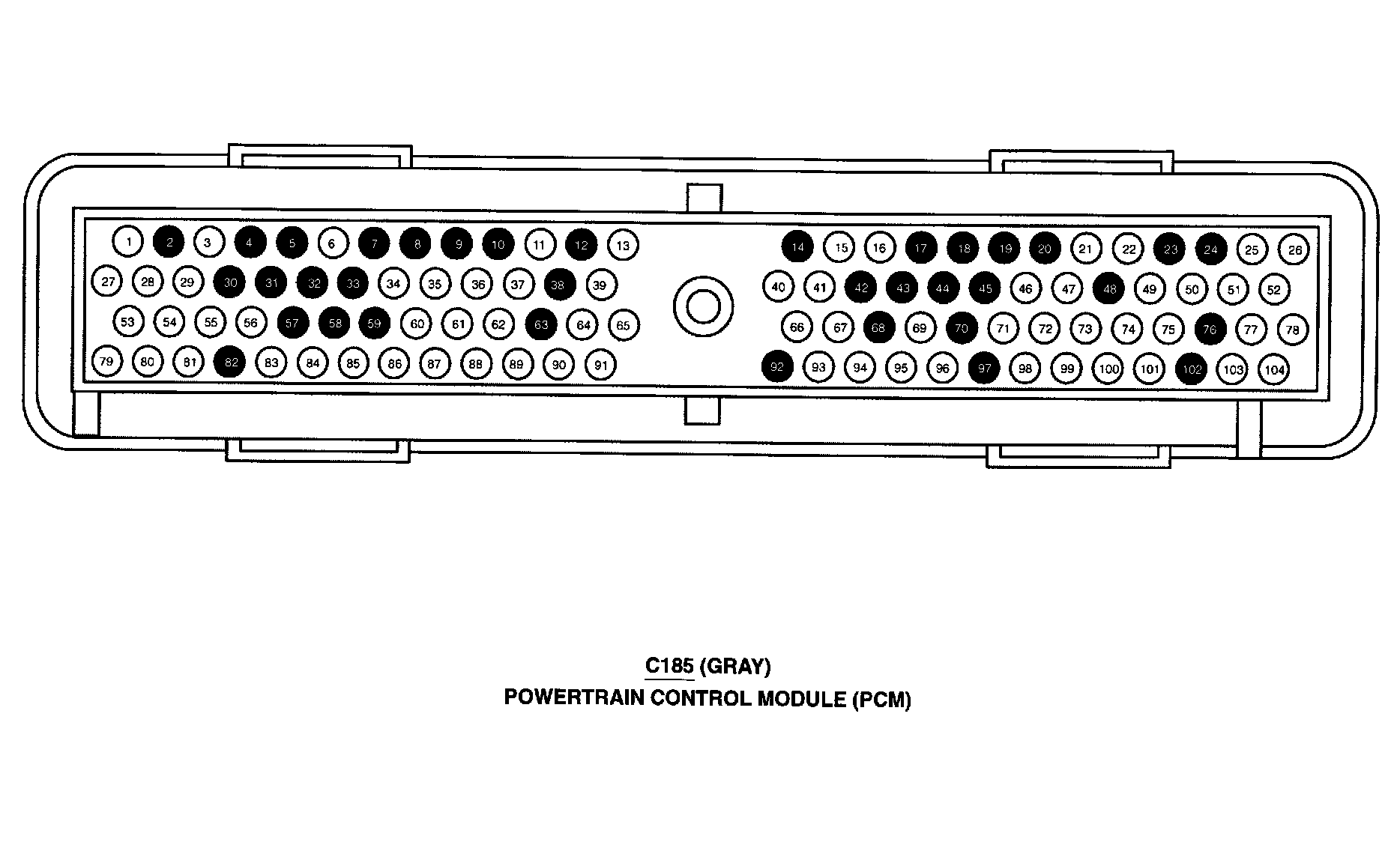

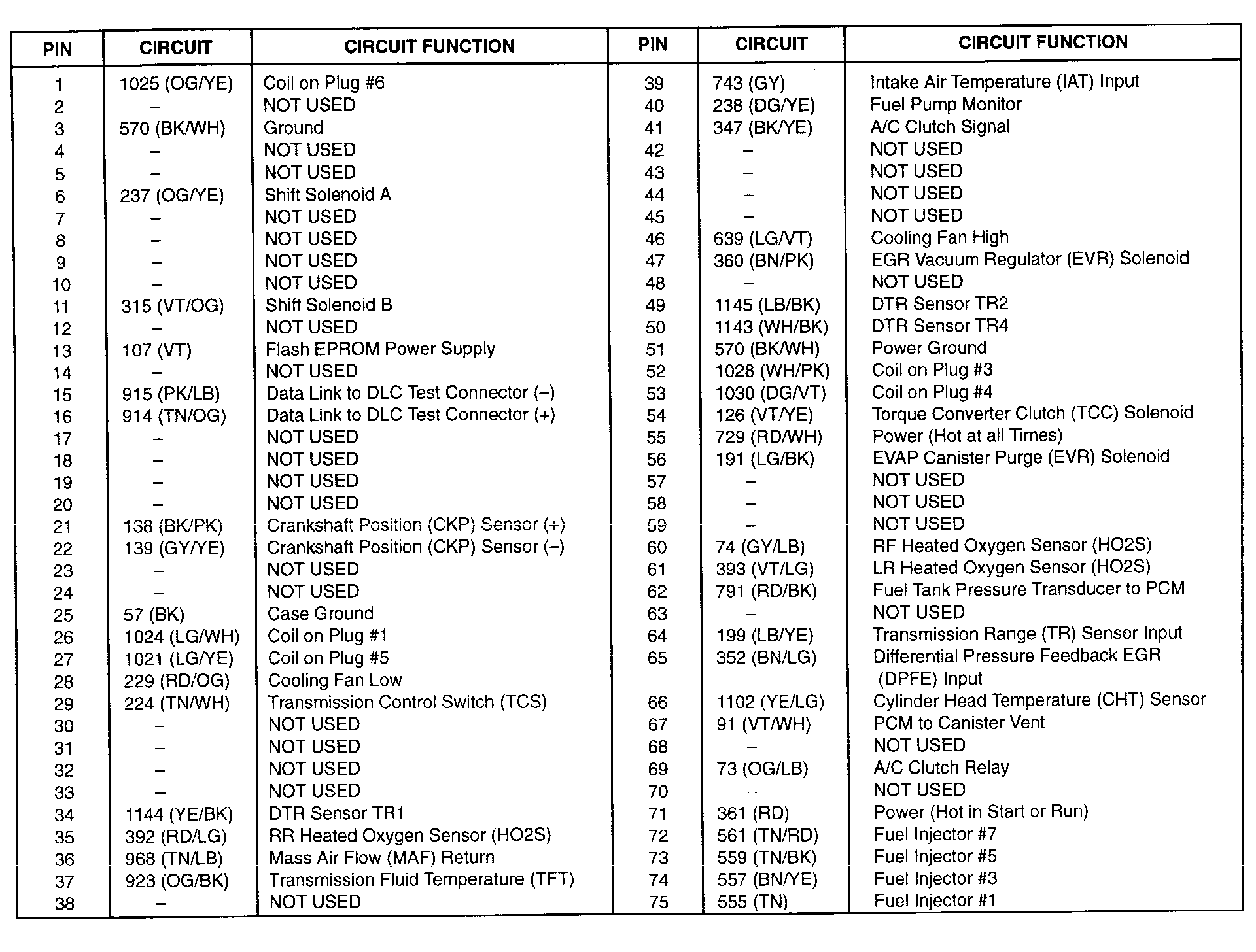

Part (1 Of 3):






Part (2 Of 3):






Part (3 Of 3):
