Test L: Doors Do Not Lock/Unlock Using the Keyless Entry Keypad

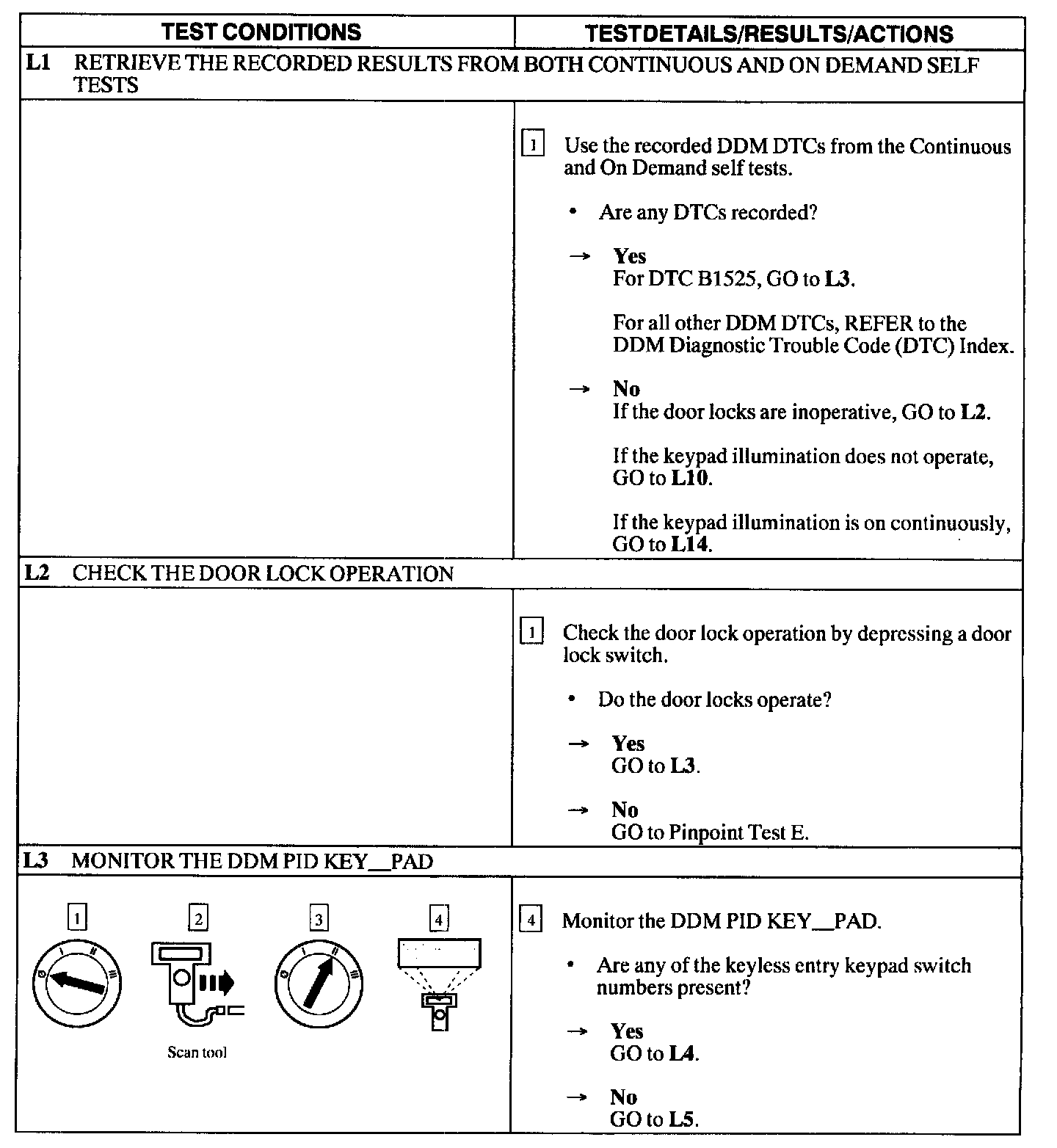

L1 - L3:

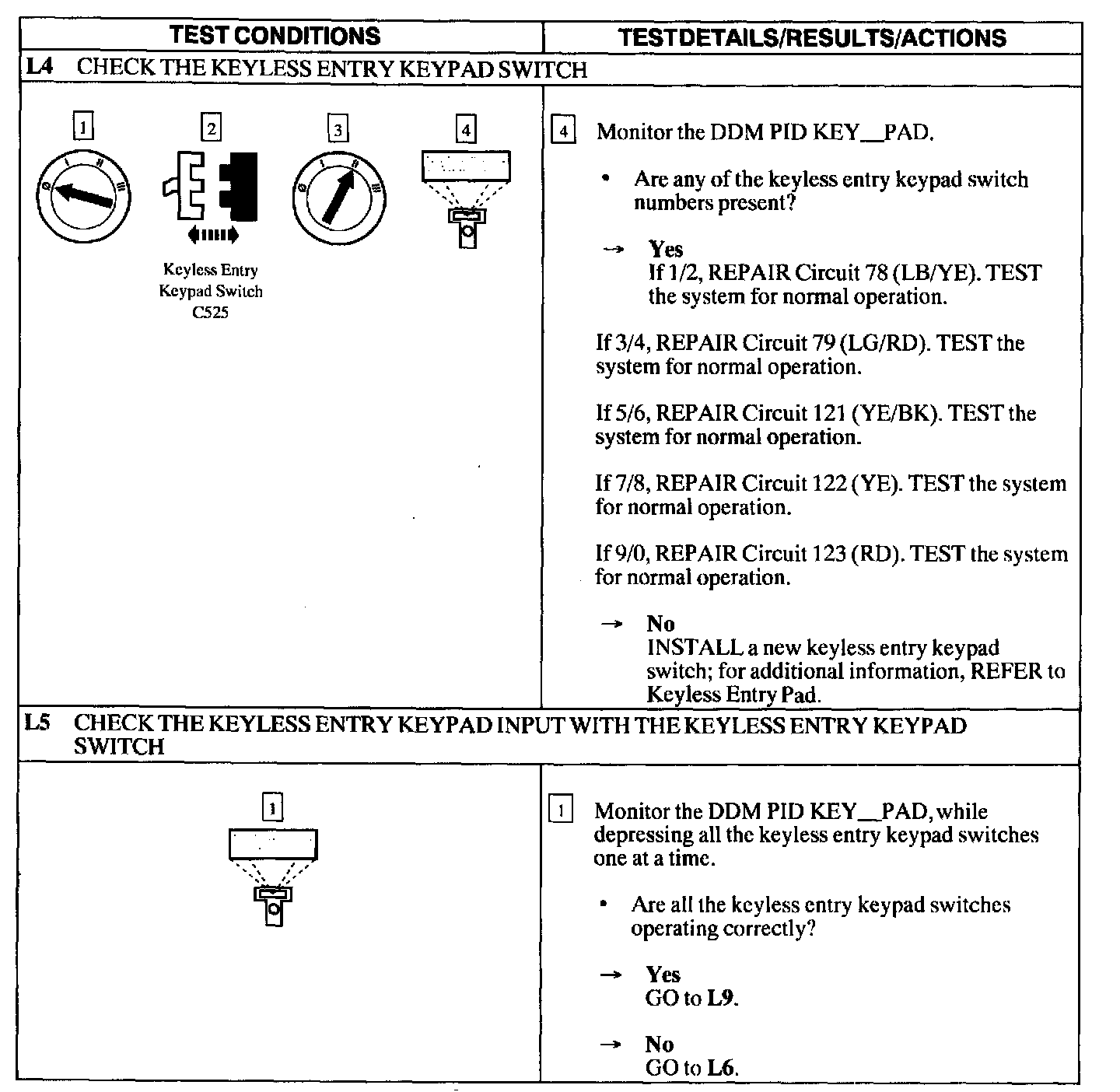

L4 - L5:

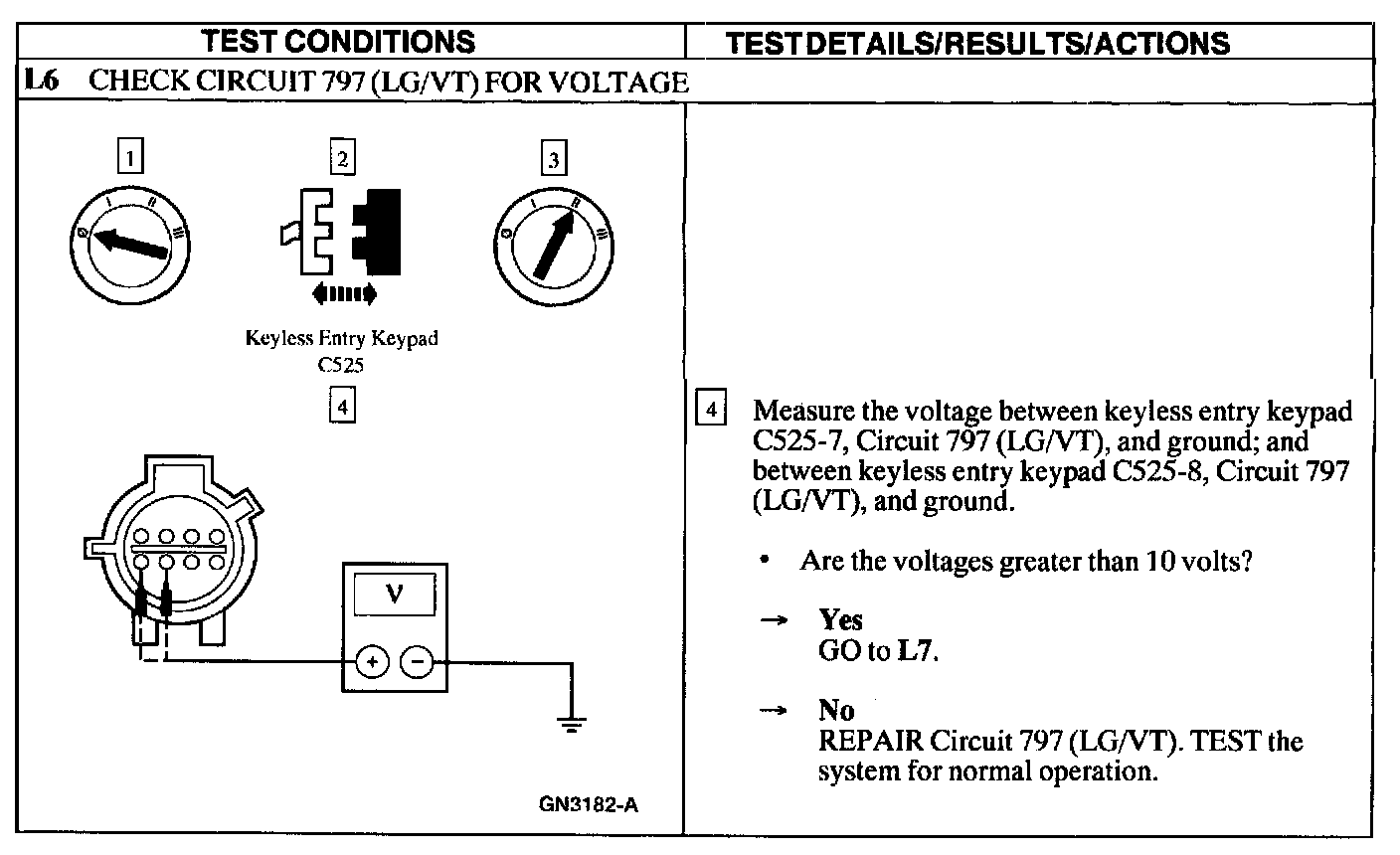

L6:

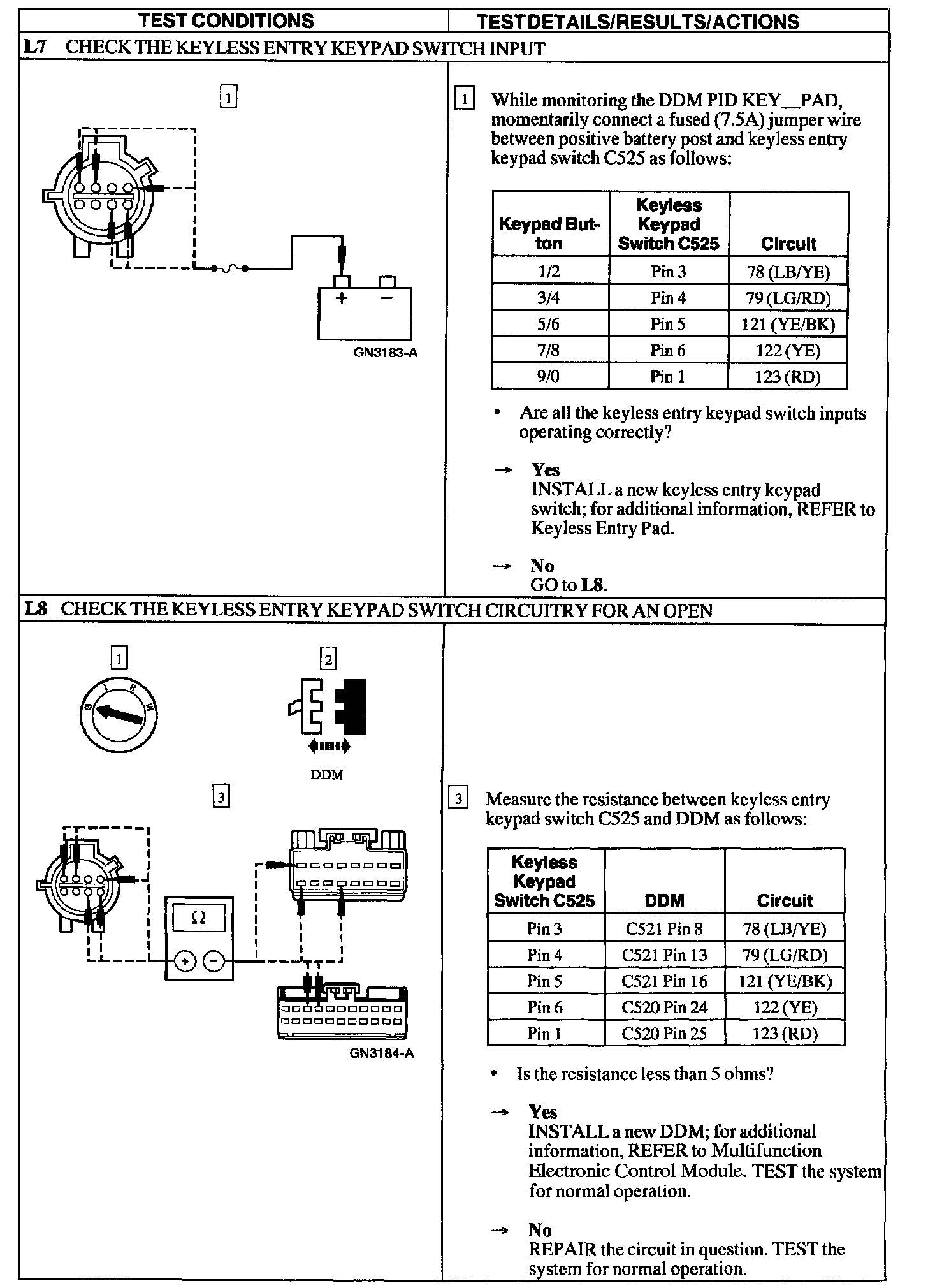

L7 - L8:

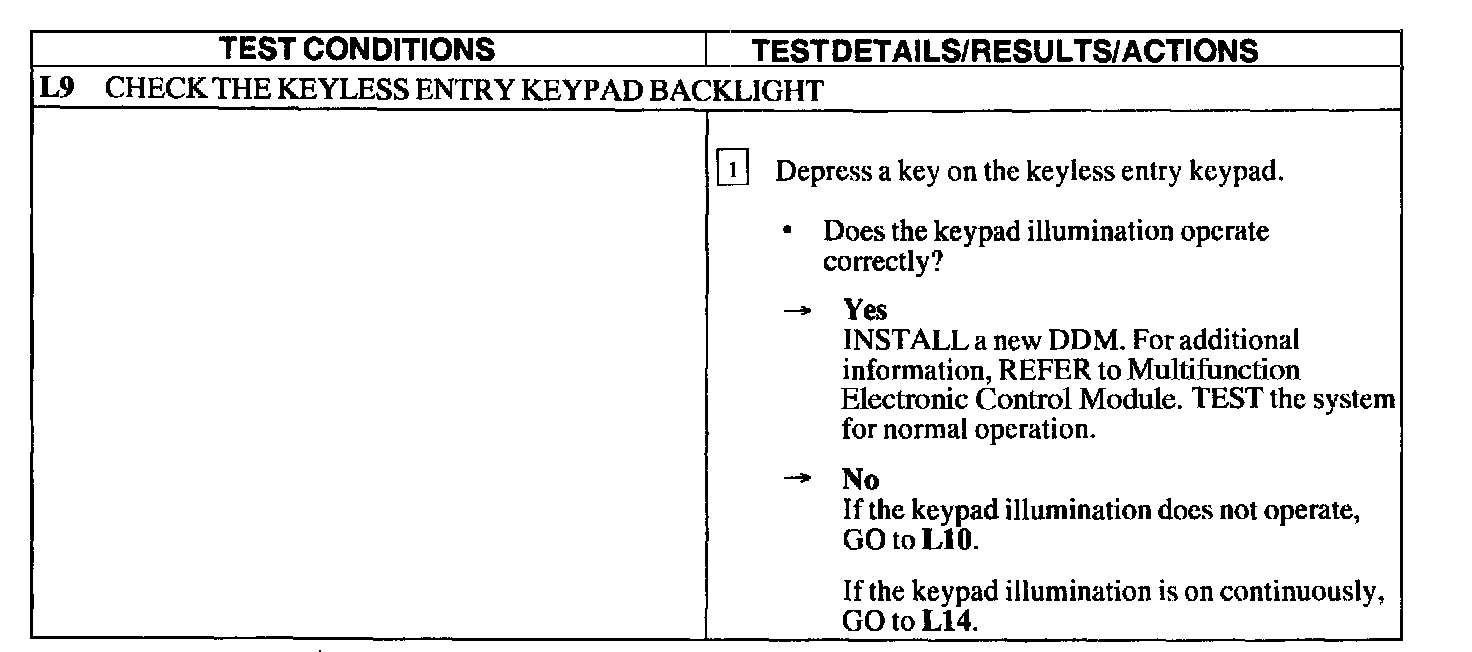

L9:

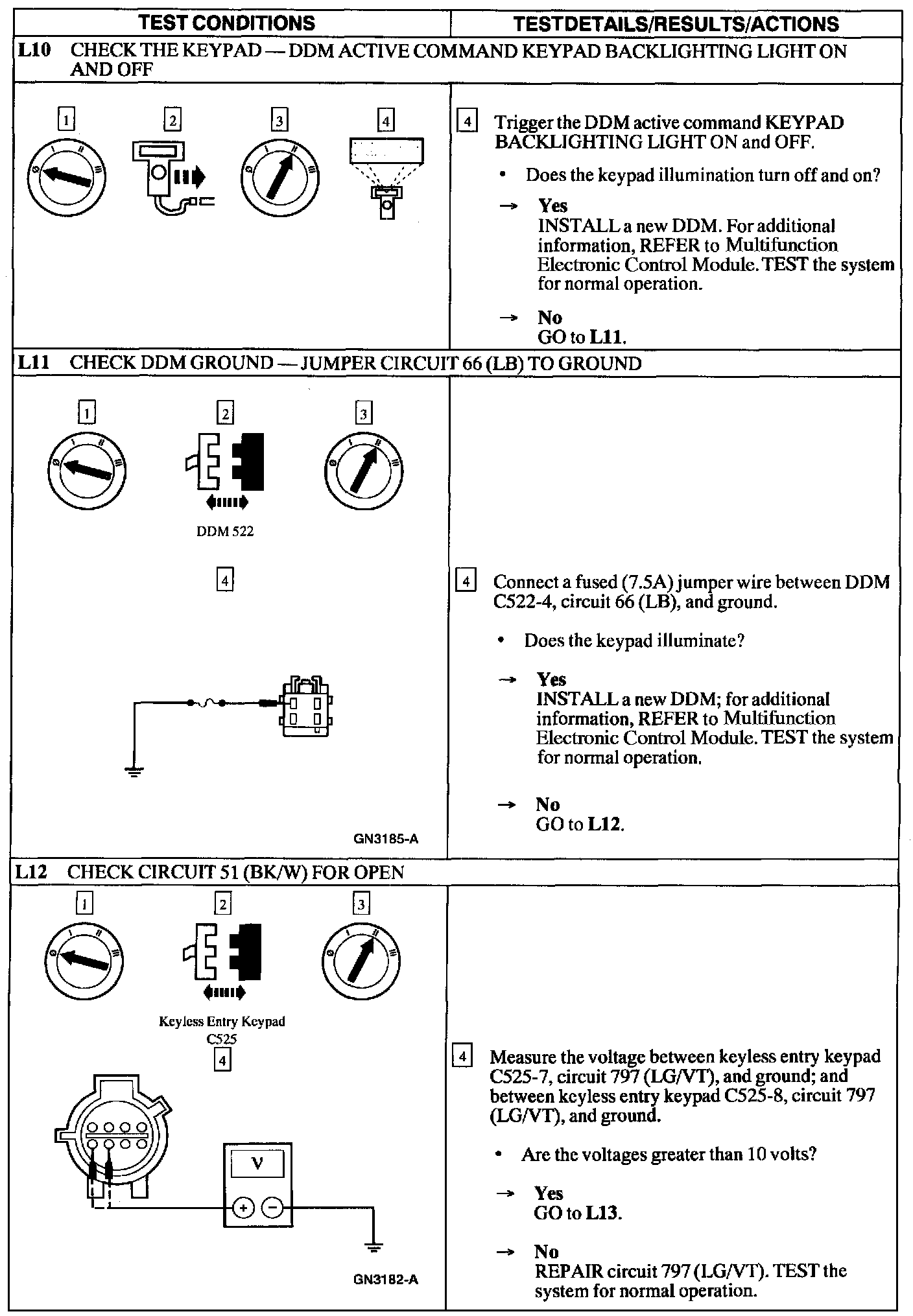

L10 - L12:

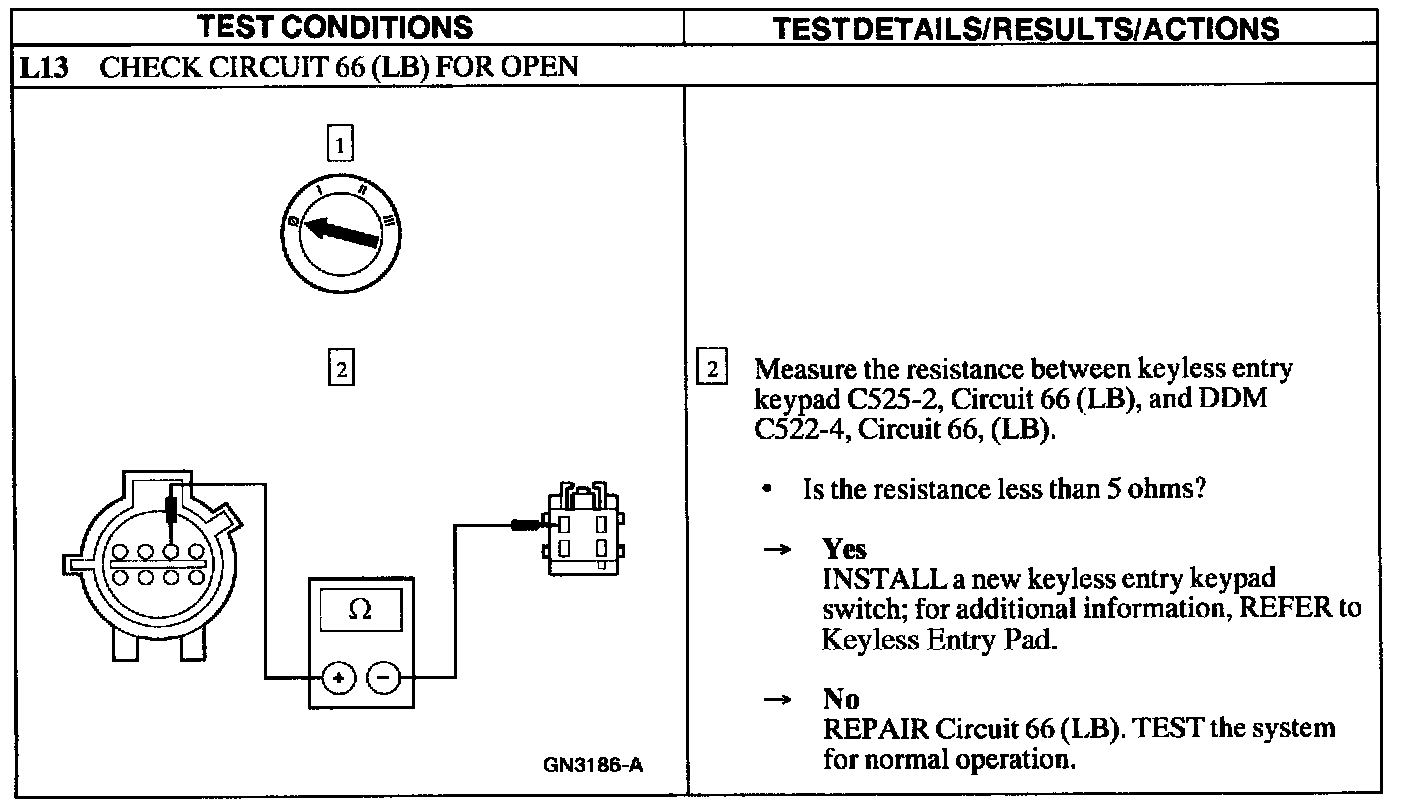

L13:

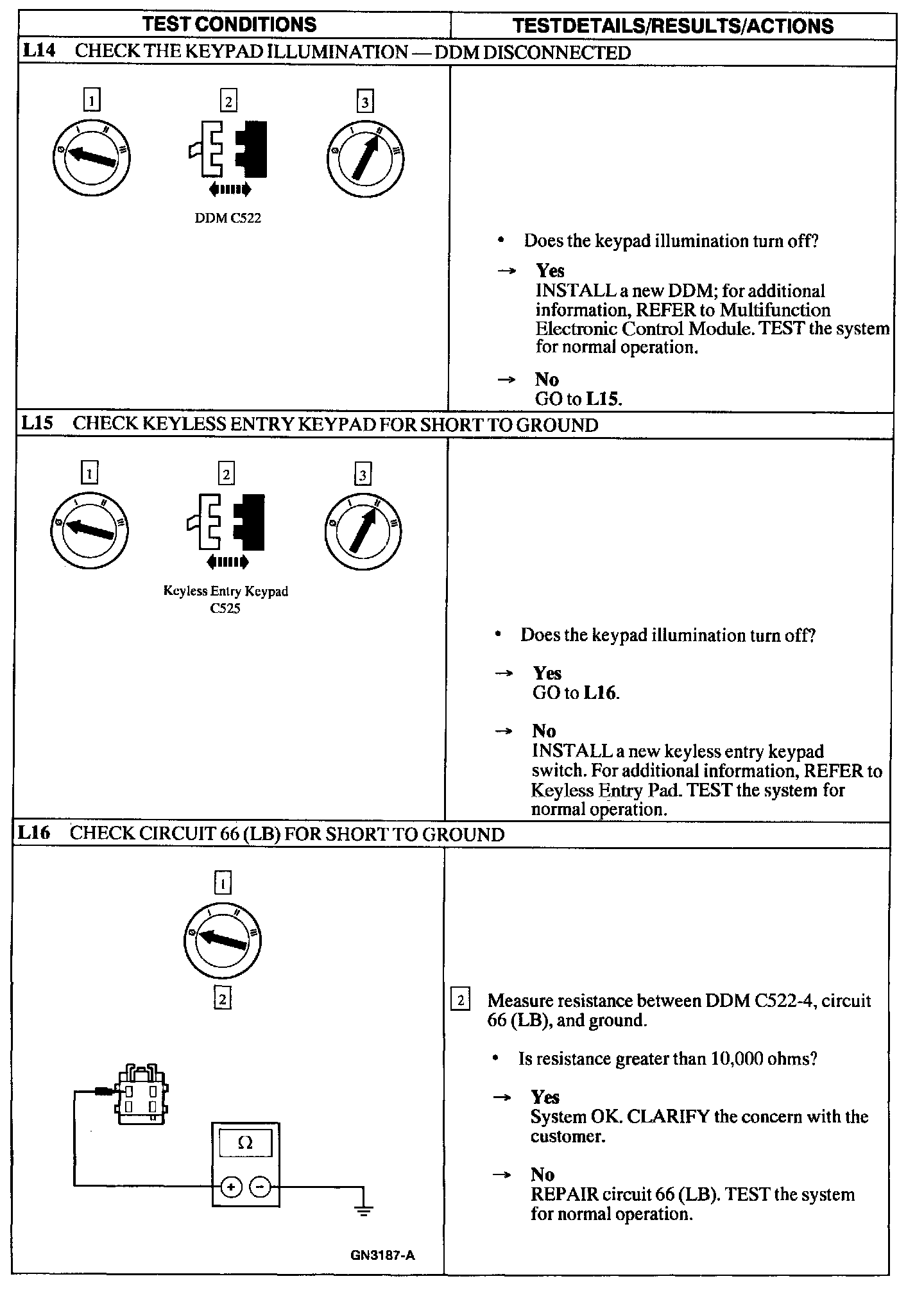

L14 - L16:
