Home >> Lincoln >> 2000 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Pinpoint Tests >> Module Communications Network >> Test A: ABS Control Module Does Not Respond to the Scan Tool

Test A: ABS Control Module Does Not Respond to the Scan Tool

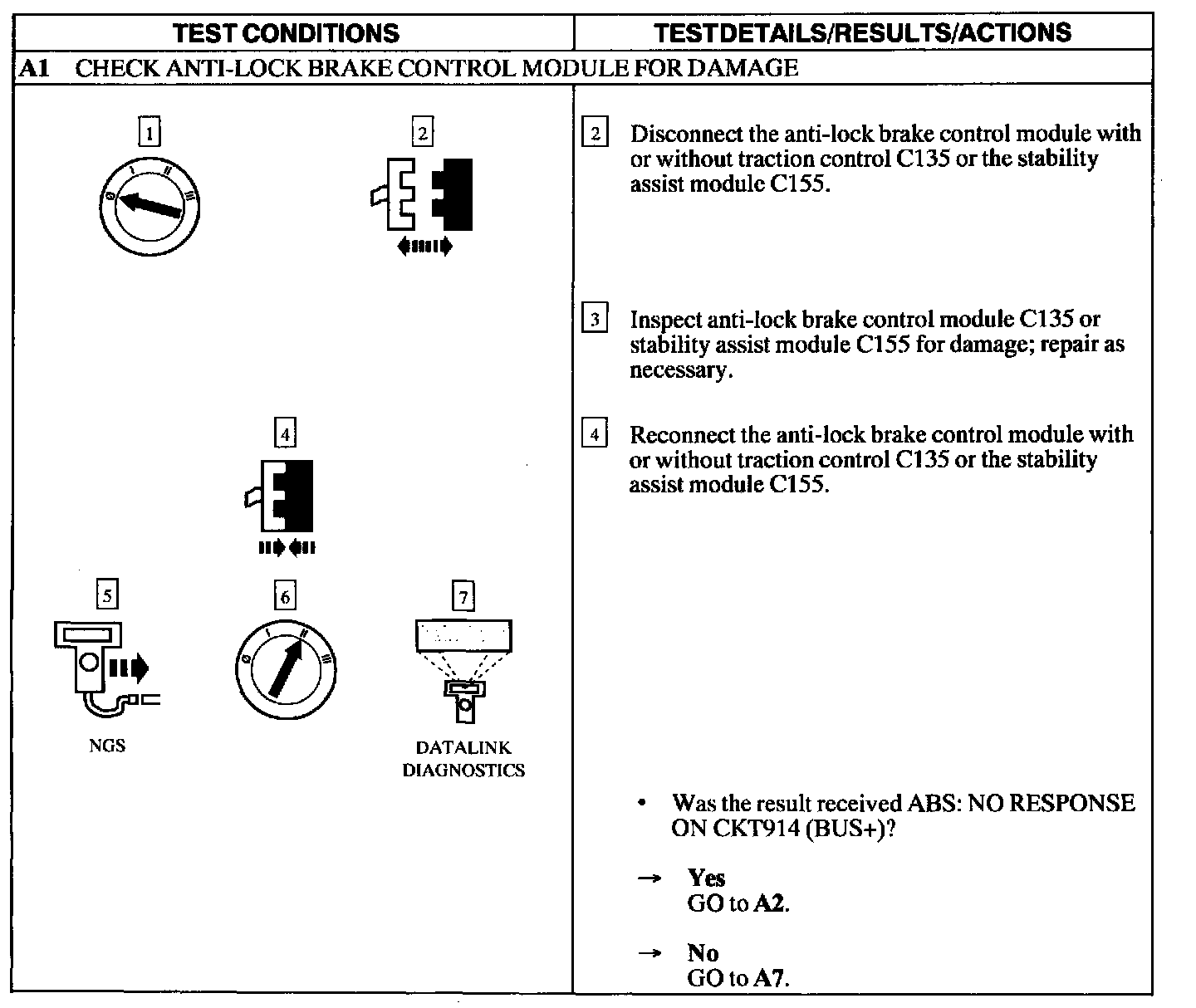

A1:

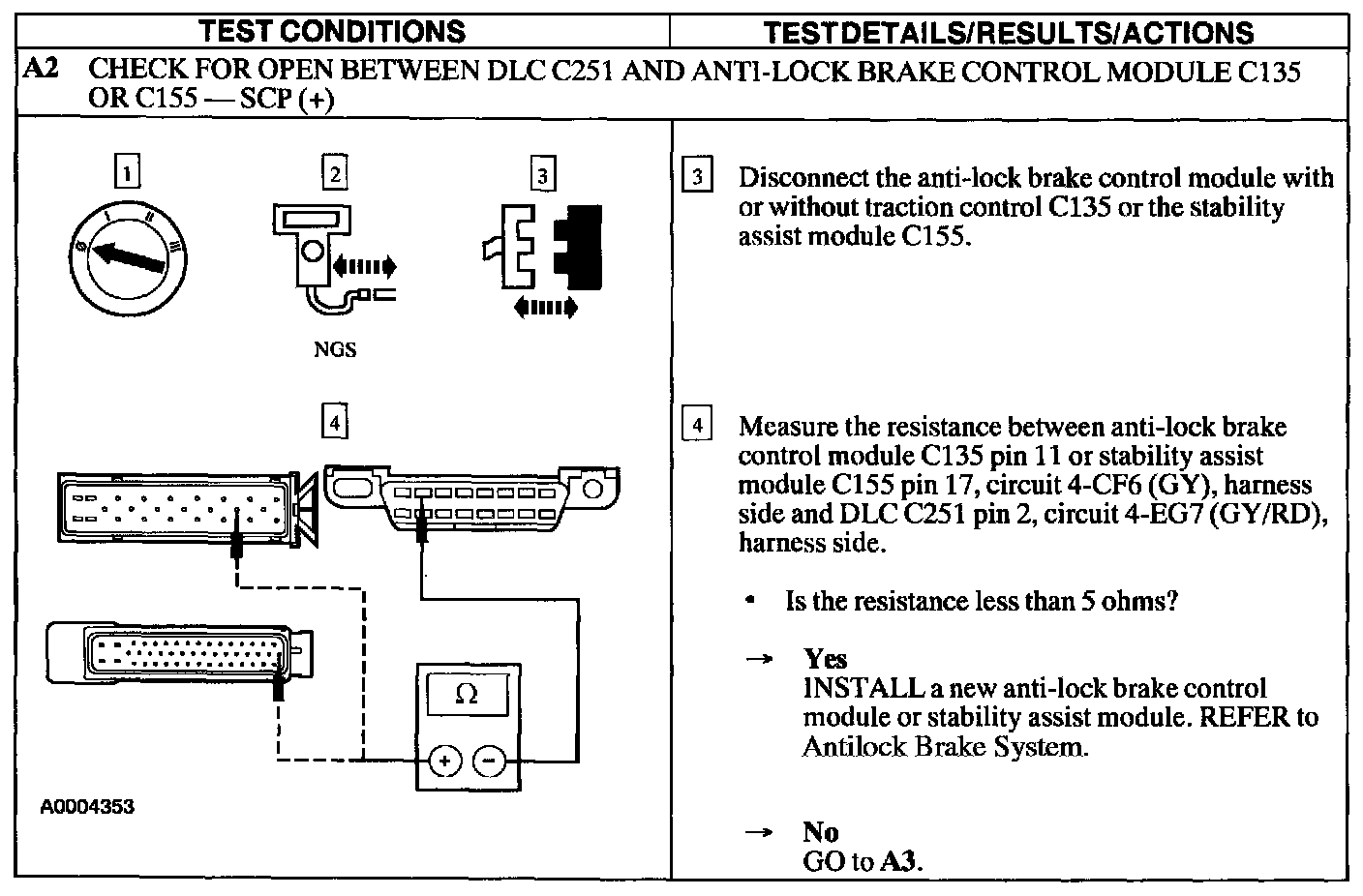

A2:

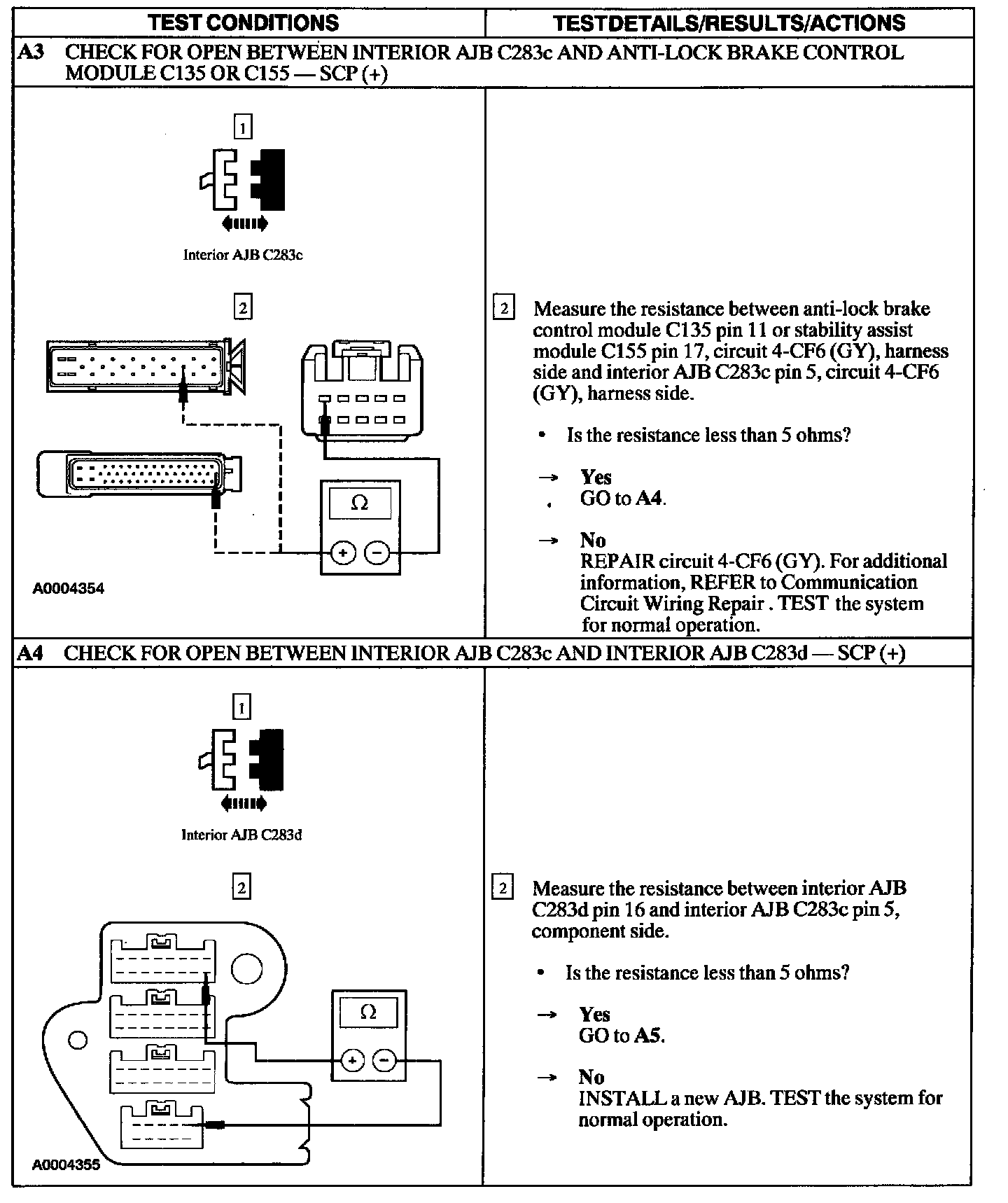

A3 - A4:

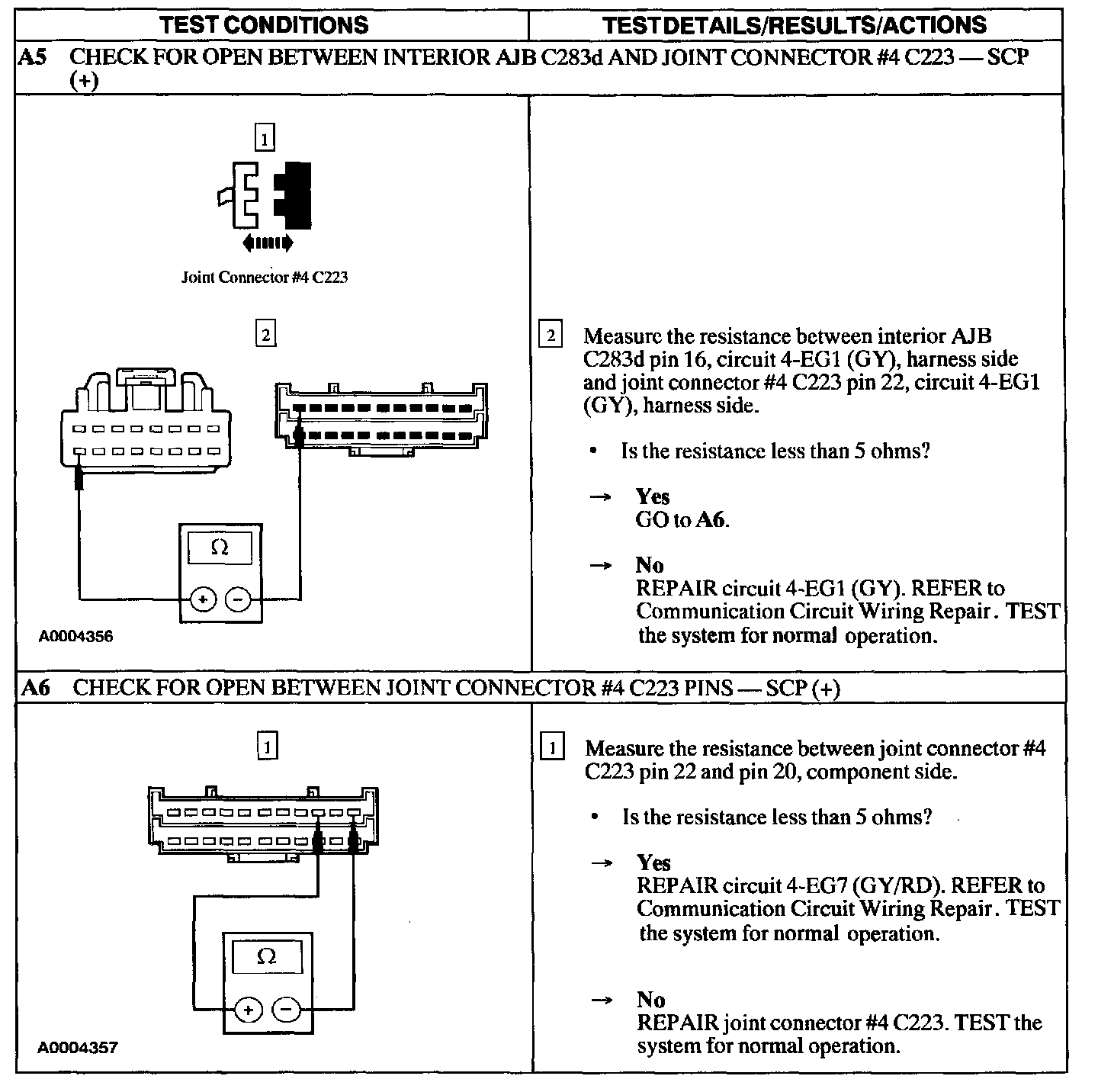

A5 - A6:

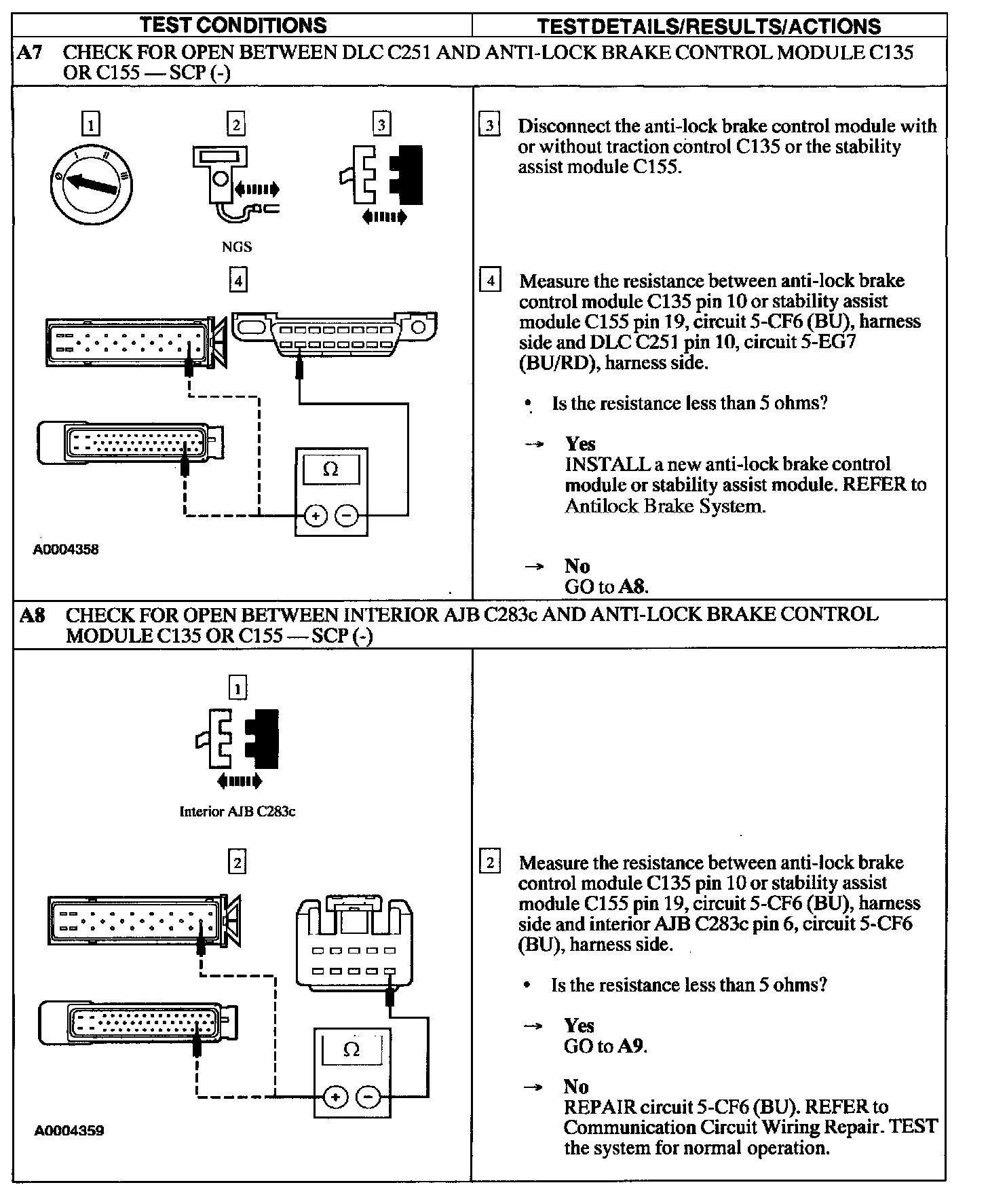

A7 - A8:

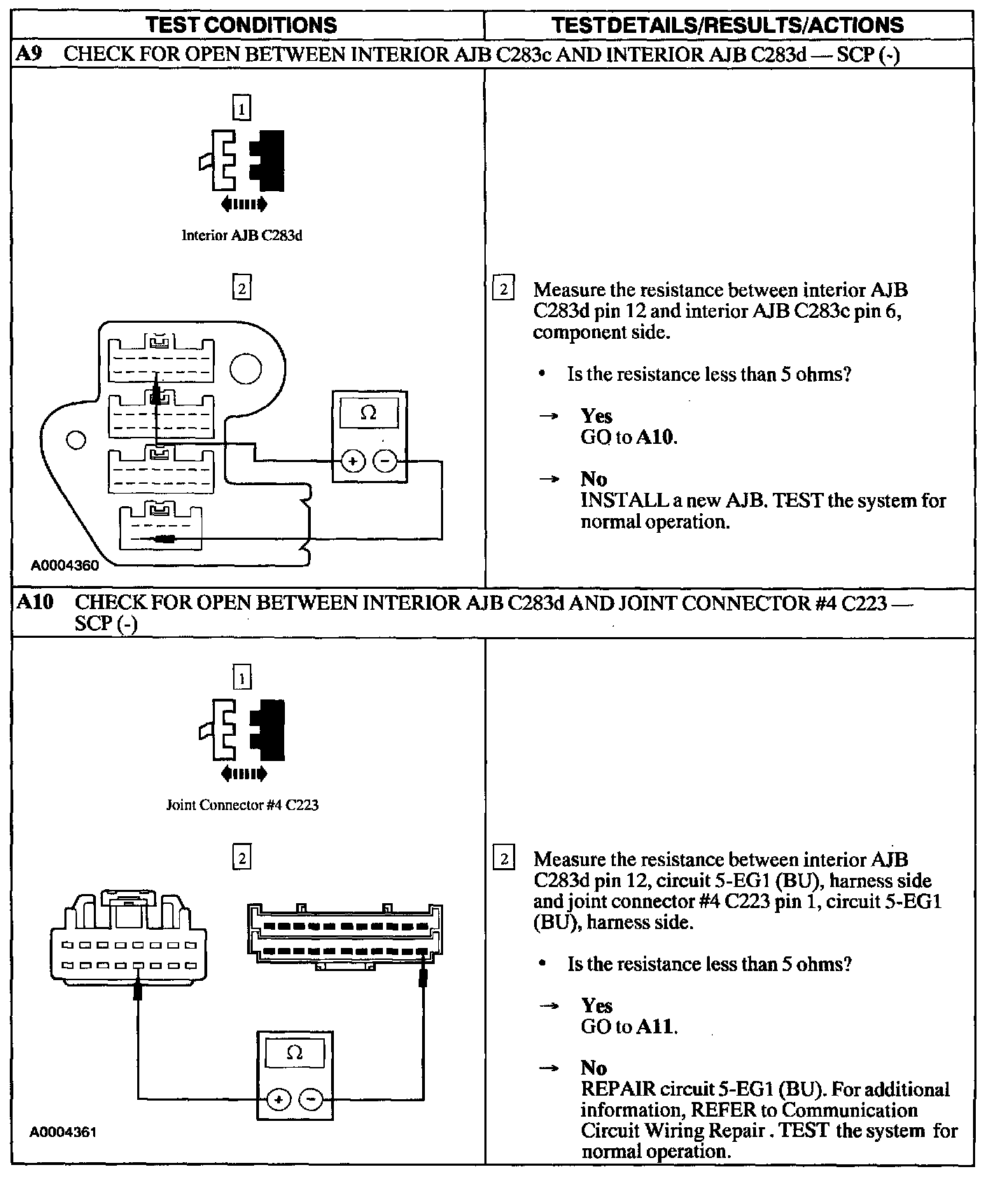

A9 - A10:

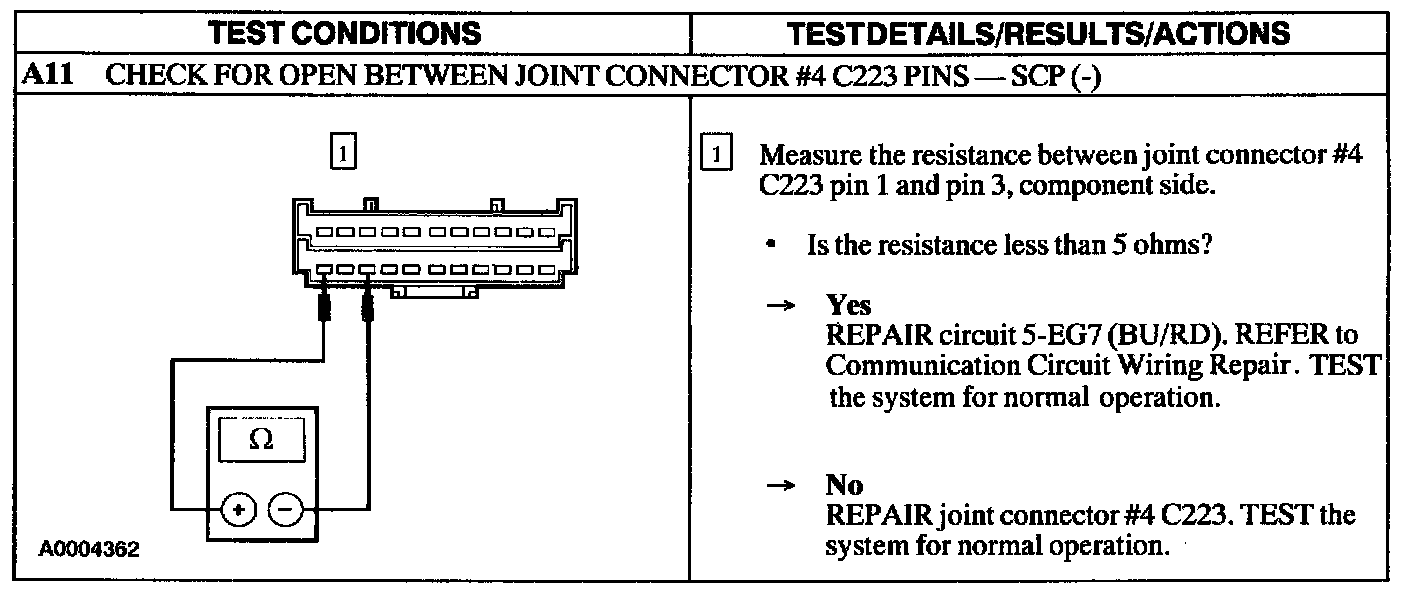

A11:
