Electrical Diagrams

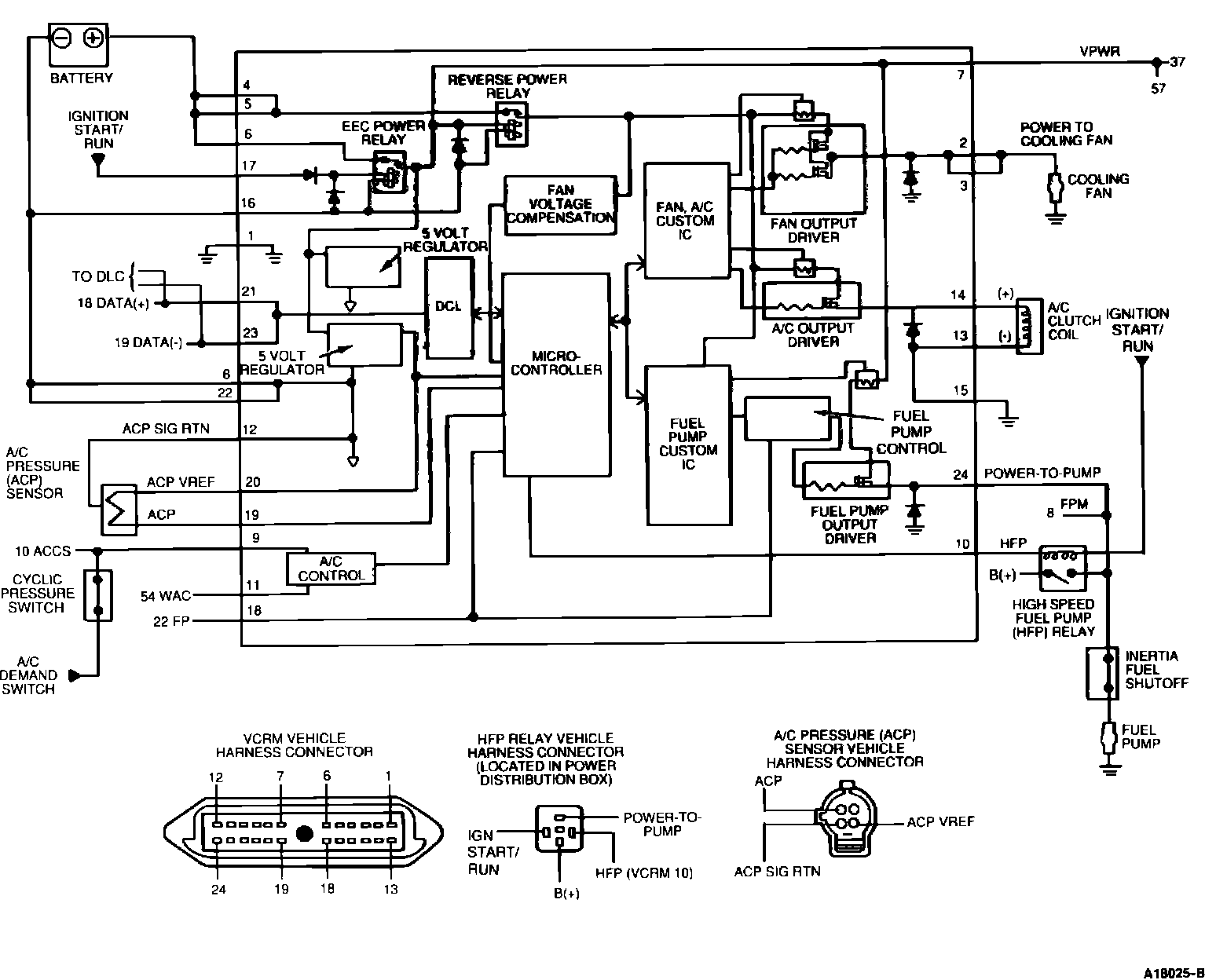

Variable Control Relay Module (VCRM) Schematic:

Variable Control Relay Module (VCRM) Pin Usage:
